ATSG 09D TR60SN TRANSMISSION VW PORSCHE AUDI REBUILD SERVICE REPAIR MANUAL

ATSG 09D TR60SN TRANSMISSION VW PORSCHE AUDI REBUILD SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 139
FILE SIZE: 14.8MB

MODEL COVERED:

AUDI, Q7 - 2007-UP - 4.2L (V8)

PORSCHE, CAYENNE - 2003-UP - 3.2L (V6)

TOUAREG - 2003-UP - 3.2L (V6)

TOUAREG - 2003-UP - 3.2L (V6)

TOUAREG - 2003-UP - 3.6L (V6)

TOUAREG - 2003-UP - 4.2L (V8)

TOUAREG - 2003-UP - 4.2L (V8)

TOUAREG - 2003-UP - 3.0L (V6 DIESEL)

TOUAREG - 2003-UP - 4.9L (V10 DIESEL)

TOUAREG - 2003-UP - 4.9L (V10 DIESEL)


CONTENTS:

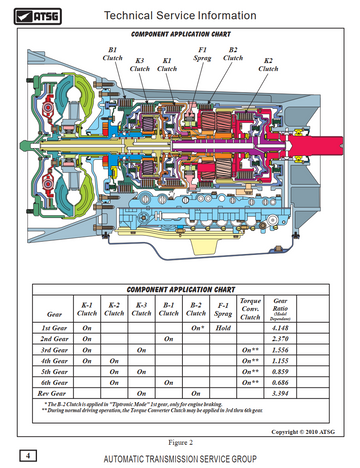

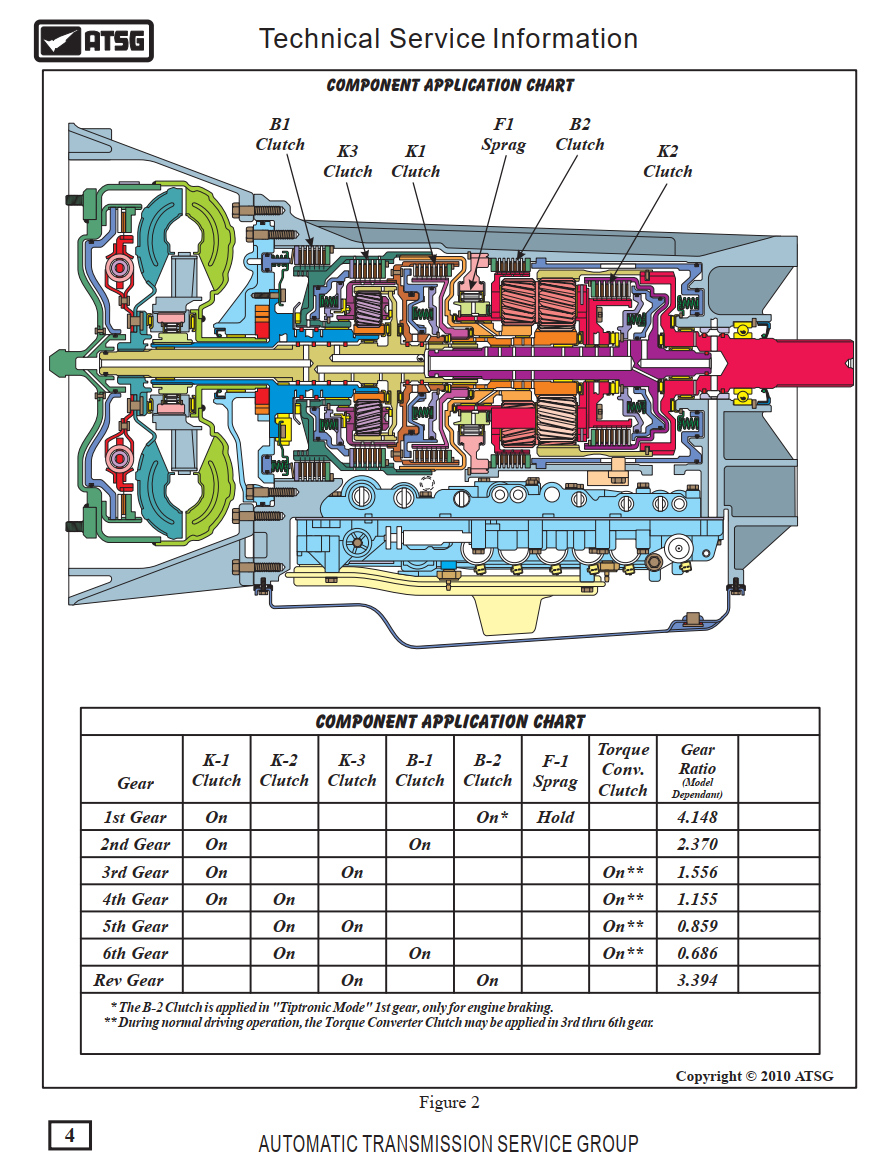

GENERAL DESCRIPTION AND VEHICLE APPLICATION CHART

COMPONENT APPLICATION CHART

IDENTIFICATION TAG LOCATION AND INFORMATION

CHECK FLUID LEVEL AND FLUID SPECIFICATIONS

SPEED SENSOR INFORMATION

PRESSURE SWITCH AND FLUID TEMPERATURE SENSOR INFORMATION

SOLENOID LOCATIONS AND IDENTIFICATION

INDIVIDUAL SOLENOID FUNCTION AND FAILURE RESULT

SOLENOID APPLICATION CHART

SOLENOID OPERATION

PASS-THRU CASE CONNECTORS AND WIRE HARNESS

CASE CONNECTOR TERMINAL IDENTIFICATION

CASE CONNECTOR INTERNAL COMPONENT RESISTANCE CHARTS

TCM CONNECTOR INTERNAL COMPONENT RESISTANCE CHARTS

TRANSAXLE RANGE SWITCH OPERATION AND DIAGNOSIS

STANDARD AND TIPTRONIC SHIFT QUADRANTS

EMERGENCY "LIMP" MODE AND TOWING INFORMATION

TYPICAL WIRE SCHEMATIC

DIAGNOSTIC TROUBLE CODE DESCRIPTION

PRESSURE SPECIFICATIONS

PRESSURE TAP LOCATIONS AND IDENTIFICATION

OIL PASSAGE IDENTIFICATION

TRANSMISSION DISASSEMBLY

COMPONENT REBUILD

TRANSMISSION FINAL ASSEMBLY

B2 CLUTCH CLEARANCE MEASUREMENT

F1 ROLLER CLUTCH FREEWHEEL DIRECTION

B1 CLUTCH CLEARANCE MEASUREMENT

TRANSMISSION END-PLAY MEASUREMENT

TORQUE SPECIFICATIONS

THRUST WASHER AND BEARING IDENTIFICATION
