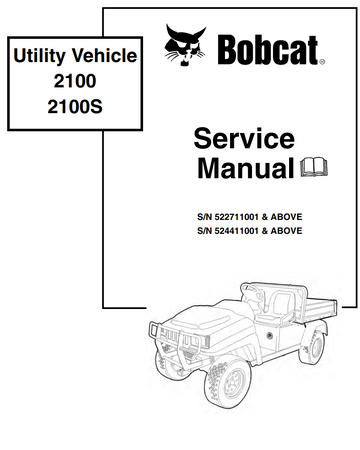

BOBCAT 2100 2100S UTILITY VEHICLE SERVICE REPAIR, OPERATOR'S MANUAL

BOBCAT 2100 2100S UTILITY VEHICLE SERVICE REPAIR, OPERATOR'S MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 730
FILE SIZE: 19.7MB

MODEL COVERED:

S/N 522711001 & ABOVE

S/N 524411001 & ABOVE

ENGINE: FE400 ENGINE

PART NO:

6901987 - MAY, 2009


CONTENTS:

SECTION 1 – SAFETY

SECTION 2 – VEHICLE SPECIFICATIONS

SECTION 3 – GENERAL INFORMATION

SECTION 4 – BODY AND TRIM

SECTION 5 – ACCELERATOR AND BRAKE PEDAL ASSEMBLIES

SECTION 6 – MC012C-AS00 TRANSAXLE: HYDRAULIC AND PARK BRAKE SYSTEMS

SECTION 7 – STEERING AND FRONT SUSPENSION

SECTION 8 – WHEELS AND TIRES

SECTION 9 – REAR SUSPENSION

SECTION 10 – PERIODIC MAINTENANCE

SECTION 11 – TROUBLESHOOTING AND ELECTRICAL SYSTEM: FE400 ENGINE

SECTION 12 – ELECTRICAL COMPONENTS: FE400 ENGINE

SECTION 13 – FE400 ENGINE

SECTION 14 – FUEL SYSTEM

SECTION 15 – EXHAUST SYSTEM

SECTION 16 – MC012C-AS00 UNITIZED TRANSAXLE WITH DIFFERENTIAL LOCK

SECTION 17 – TORQUE CONVERTER

SECTION 18 – RECONDITIONING THE FE400 ENGINE

SECTION 19 – RECONDITIONING THE MC012C-AS00 UNITIZED TRANSAXLE WITH DIFFERENTIAL LOCK

SECTION i – INDEX

OPERATOR’S MANUAL:

S/N 522711001 - 522712999

S/N 524411001 & ABOVE

PART NO:

6901986 - JULY, 2007 (MAY, 2009)

S/N 522713000 AND ABOVE

PART NO:

6987392 - APRIL, 2009

EXTRAS INCLUDED:

UTILITY VEHICLE TECHNICAL SERVICE GUIDE
