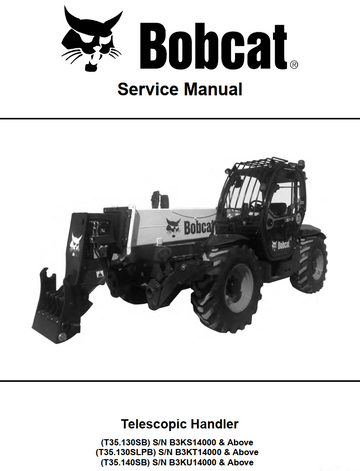

BOBCAT T35.130SB T35.130SLPB T35.140SB TELEHANDLER SERVICE, OPERATOR'S MANUAL

BOBCAT T35.130SB T35.130SLPB T35.140SB TELEHANDLER SERVICE, OPERATOR'S MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,554
FILE SIZE: 102MB

MODEL COVERED:

(T35.130SB) S/N B3KS14000 & Above

(T35.130SLPB) S/N B3KT14000 & Above

(T35.140SB) S/N B3KU14000 & Above

ENGINE:

PERKINS / 1104D-44TA - Diesel / Liquid - 4 CYLINERS

PART NO: 7283375

FEBRUARY, 2019


CONTENTS:

MAINTENANCE SAFETY

FOREWARD

SAFETY & MAINTENANCE

HYDRAULIC SYSTEM

HYDROSTATIC SYSTEM

DRIVE SYSTEM

MAIN FRAME

ELECTRICAL SYSTEM & ANALYSIS

ENGINE SERVICE

HEATING, VENTILATION & AIR CONDITIONING (HVAC)

SPECIFICATIONS

ALPHABETICAL INDEX

SERVICE MANUAL REVISION

OPERATOR’S MANUAL:

(T35130S) S/N B3KV11001 & ABOVE

(T35130SL) S/N B3KW11001 & ABOVE

(T35140S) S/N B3KY11001 & ABOVE

PART NO:

7268145 - SEPTEMBER, 2015


(T35.130SB) S/N B3KS14000 & ABOVE

(T35.140SB) S/N B3KT14000 & ABOVE

(T35.130SLPB) S/N B3KU14000 & ABOVE

PART NO:

7283374 - FEBRUARY, 2019


(T35.130SA) S/N B41B11001 & ABOVE

(T35.130SB) S/N B41A11001 & ABOVE

(T35.130SLPA) S/N B41D11001 & ABOVE

(T35.130SLPB) S/N B41C11001 & ABOVE

(T35.140SA) S/N B41G11001 & ABOVE

(T35.140SB) S/N B41F11001 & ABOVE

PART NO:

7283377 - OCTOBER, 2018

EXTRAS INCLUDED:

TELESCOPIC HANDLER INSTALLATION INSTRUCTION
