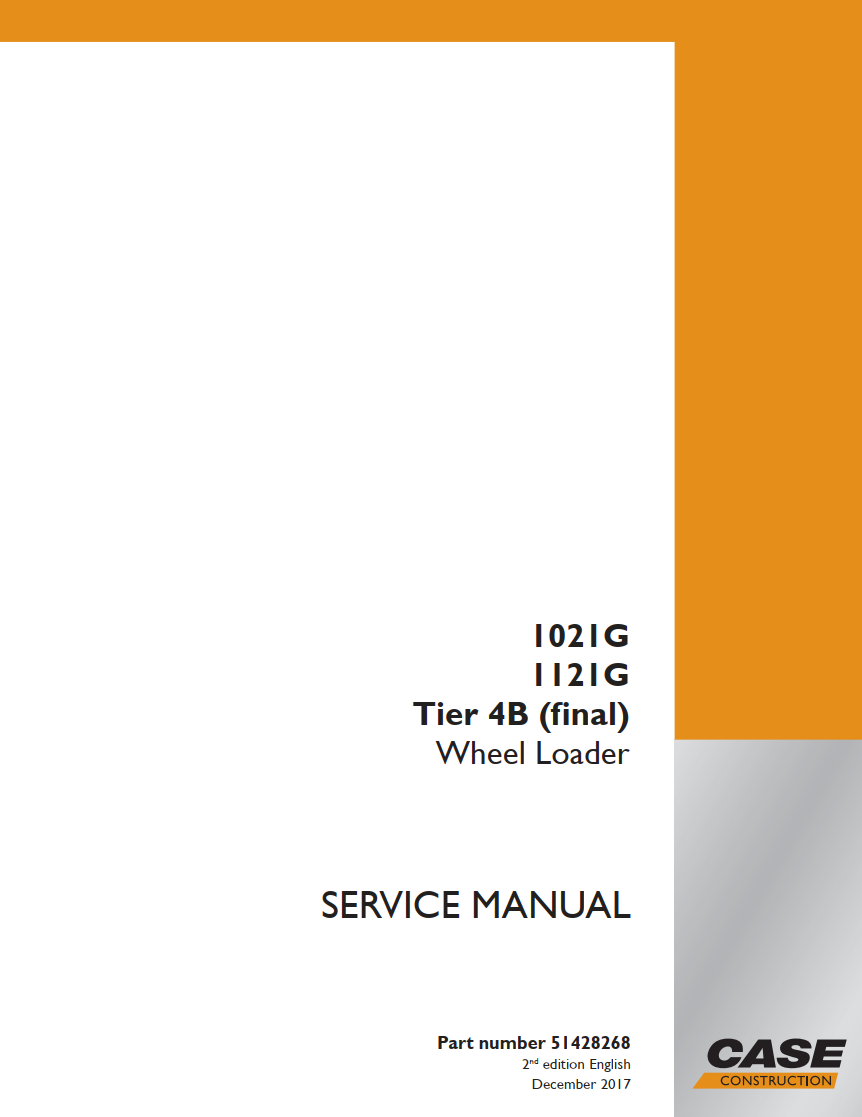

CASE 1021G, 1121G TIER 4B WHEEL LOADER WORKSHOP SERVICE REPAIR, WIRING MANUAL

CASE 1021G, 1121G TIER 4B WHEEL LOADER WORKSHOP SERVICE REPAIR, WIRING MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 5,686
FILE SIZE: 197MB

MODEL COVERED:

CASE 1021G 1121G TIER 4B (FINAL) WHEEL LOADER

1021G WHEEL LOADER ZBAR-EH, NEW CAB TIER4B NA - F2CFE614H*B004

1021G WHEEL LOADER XR-EH, NEW CAB TIER4B NA - F2CFE614H*B004

ISSUED:

PART NUMBER 51428268

2ND EDITION ENGLISH

DECEMBER 2017

PART NUMBER 48083738

1ST EDITION ENGLISH

DECEMBER 2016


CONTENTS:

INTRODUCTION

ENGINE

TRANSMISSION

FOUR-WHEEL DRIVE (4WD) SYSTEM

FRONT AXLE SYSTEM

REAR AXLE SYSTEM

BRAKES AND CONTROLS

HYDRAULIC SYSTEMS

FRAMES AND BALLASTING

STEERING

WHEELS

CAB CLIMATE CONTROL

ELECTRICAL SYSTEMS

FRONT LOADER AND BUCKET

PLATFORM, CAB, BODYWORK, AND DECALS

SPECIAL TOOL INDEX

ELECTRICAL SCHEMATIC 48144040

HYDRAULIC SCHEMATIC - 1021G - 48168328

HYDRAULIC SCHEMATIC - 1121G - 48168329
