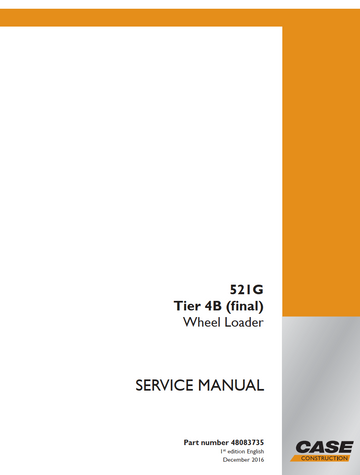

CASE 521G TIER 4B WHEEL LOADER TRACTOR WORKSHOP SERVICE REPAIR, WIRING MANUAL

CASE 521G TIER 4B WHEEL LOADER TRACTOR WORKSHOP SERVICE REPAIR, WIRING MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 5,432
FILE SIZE: 196MB

MODEL COVERED:

CASE 521G TIER 4B (FINAL) WHEEL LOADER TRACTOR

521G WHEEL LOADER XR-EH, NEW CAB TIER4B NA

521G WHEEL LOADER XT-EH, NEW CAB TIER4B NA

521G WHEEL LOADER ZBAR-EH, NEW CAB TIER4B NA

ISSUED:

PART NUMBER 51428262

2ND EDITION ENGLISH

DECEMBER 2017

PART NUMBER 48083735

1ST EDITION ENGLISH

DECEMBER 2016


CONTENTS:

INTRODUCTION

ENGINE

TRANSMISSION

FOUR-WHEEL DRIVE (4WD) SYSTEM

FRONT AXLE SYSTEM

REAR AXLE SYSTEM

BRAKES AND CONTROLS

HYDRAULIC SYSTEMS

FRAMES AND BALLASTING

STEERING

WHEELS

CAB CLIMATE CONTROL

ELECTRICAL SYSTEMS

FRONT LOADER AND BUCKET

PLATFORM, CAB, BODYWORK, AND DECALS

SPECIAL TOOL INDEX

ELECTRICAL SCHEMATIC 48144040

HYDRAULIC SCHEMATIC - 48144041
