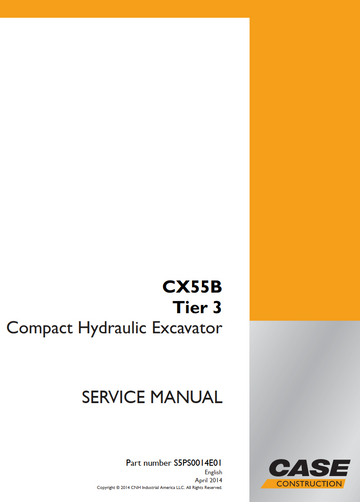

CASE CX55B TIER 3 MINI HYDRAULIC EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL

CASE CX55B TIER 3 MINI HYDRAULIC EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,037
FILE SIZE: 88MB

MODEL COVERED:

CASE CX55B TIER 3

APPLICABLE MACHINES PS03-05001~

ENGINE:

YANMAR 4TNV88-B

WATER-COOLED, 4-CYCLE 4CYLINDER DIRECT INJECTION TYPE DIESEL ENGINE

PART NUMBER S5PS0014E01

APRIL 2014


CONTENTS:

INDEX

GENERAL SAFETY INFORMATION

SECTION INDEX

1. OUTLINE

2. SPECIFICATIONS

3. ATTACHMENT DIMENSIONS

11. TOOLS

12. STANDARD MAINTENANCE TIME TABLE

13. MAINTENANCE STANDARD AND TEST PROCEDURE

21. MECHATRO CONTROLLER (OPT.)

22. HYDRAULIC SYSTEM

23. ELECTRICAL SYSTEM

24. COMPONENTS SYSTEM

25. AIR-CONDITIONER SYSTEM

31. GENERAL DISASSEMBLY AND ASSEMBLY

32. ATTACHMENTS

33. UPPER STRUCTURE

34. TRAVEL SYSTEM

42. TROUBLESHOOTING (HYDRAULIC SYSTEM)

43. TROUBLESHOOTING (ELECTRICAL SYSTEM)

44. TROUBLESHOOTING (ENGINE)

46. TROUBLE SHOOTING (OPT.) (BY ERROR CODES)

51. ENGINE

YANMAR ENGINE SERVICE MANUAL
