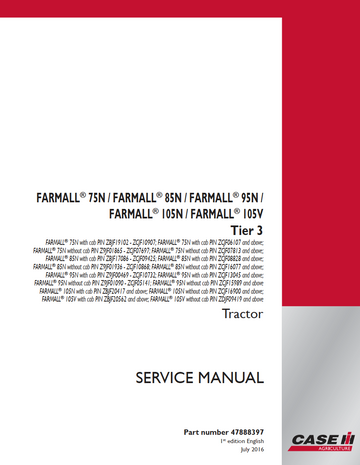

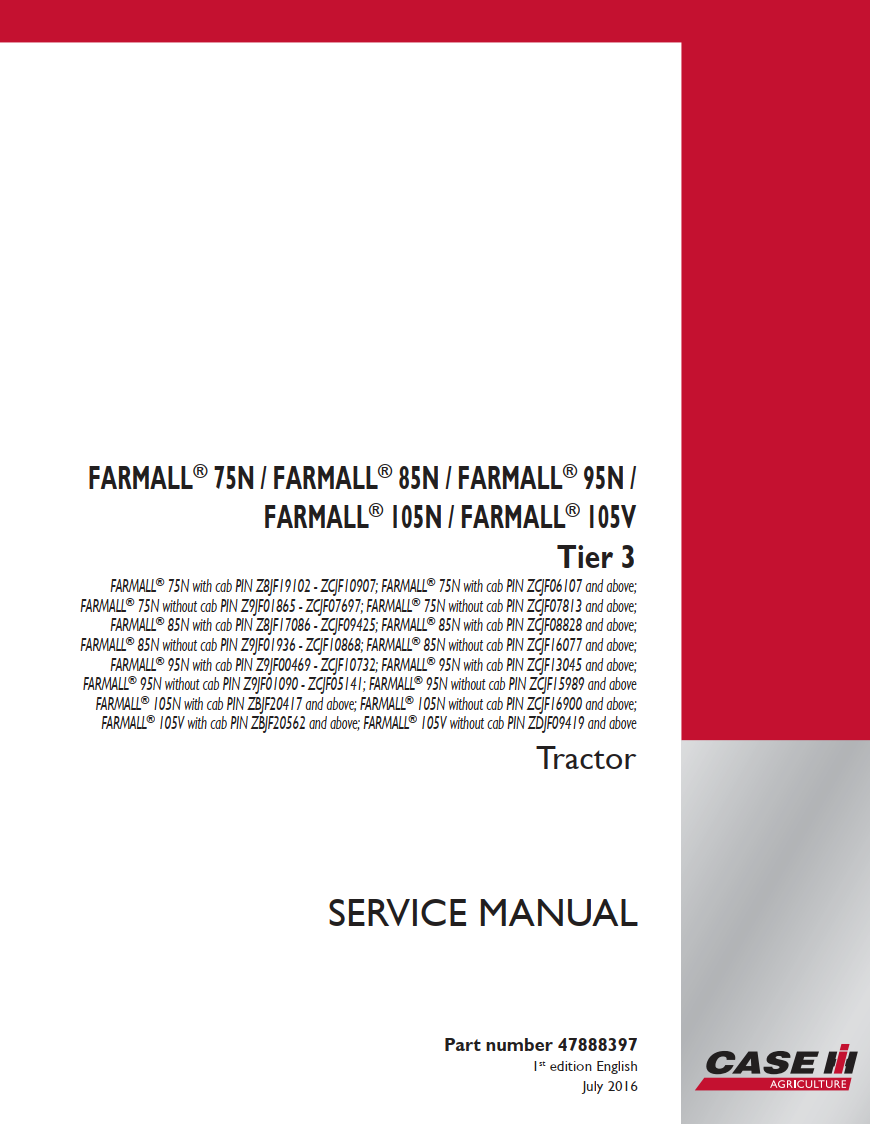

CASE IH FARMALL 75N 85N 95N 105N 105V TIER 3 TRACTOR WORKSHOP SERVICE MANUAL

CASE IH FARMALL 75N 85N 95N 105N 105V TIER 3 TRACTOR WORKSHOP SERVICE MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 2,545
FILE SIZE: 170MB

MODEL COVERED:

CASE IH FARMALL 75N 85N 95N 105N 105V TIER 3 TRACTOR

FARMALL 75N WITH CAB PIN Z8JF19102 - ZCJF10907

FARMALL 75N WITH CAB PIN ZCJF06107 AND ABOVE;

FARMALL 75N WITHOUT CAB PIN Z9JF01865 - ZCJF07697

FARMALL 75N WITHOUT CAB PIN ZCJF07813 AND ABOVE

FARMALL 85N WITH CAB PIN Z8JF17086 - ZCJF09425

FARMALL 85N WITH CAB PIN ZCJF08828 AND ABOVE

FARMALL 85N WITHOUT CAB PIN Z9JF01936 - ZCJF10868

FARMALL 85N WITHOUT CAB PIN ZCJF16077 AND ABOVE

FARMALL 95N WITH CAB PIN Z9JF00469 - ZCJF10732

FARMALL 95N WITH CAB PIN ZCJF13045 AND ABOVE

FARMALL 95N WITHOUT CAB PIN Z9JF01090 - ZCJF05141

FARMALL 95N WITHOUT CAB PIN ZCJF15989 AND ABOVE

FARMALL 105N WITH CAB PIN ZBJF20417 AND ABOVE

FARMALL 105N WITHOUT CAB PIN ZCJF16900 AND ABOVE

FARMALL 105V WITH CAB PIN ZBJF20562 AND ABOVE

FARMALL 105V WITHOUT CAB PIN ZDJF09419 AND ABOVE

ISSUED:

PART NUMBER 47888397

1ST EDITION ENGLISH

JULY 2016


CONTENTS:

INTRODUCTION

ENGINE

CLUTCH

TRANSMISSION

FOUR-WHEEL DRIVE (4WD) SYSTEM

FRONT AXLE SYSTEM

REAR AXLE SYSTEM

POWER TAKE-OFF (PTO)

BRAKES AND CONTROLS

HYDRAULIC SYSTEMS

HITCHES, DRAWBARS, AND IMPLEMENT COUPLINGS

STEERING

WHEELS

CAB CLIMATE CONTROL

ELECTRICAL SYSTEMS

PLATFORM, CAB, BODYWORK, AND DECALS

SPECIAL TOOL INDEX
