CATERPILLAR CAT DP100 DP115 DP135 DP150 LIFT TRUCK SERVICE REPAIR, ENGINE, SCHEMATIC MANUAL

CATERPILLAR CAT DP100 DP115 DP135 DP150 LIFT TRUCK SERVICE REPAIR, ENGINE, SCHEMATIC MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,487
FILE SIZE: 58.4MB

MODEL AND ENGINE COVERED:

DP100 3DP-10011-UP

DP115 4DP-10011-UP

DP135 5DP-10011-UP

DP150 6DP-10011-UP

DP100 3DP-00012-UP

DP115 4DP-00011-UP

DP135 5DP-00013-UP

DP150 6DP-00013-UP

PART NO:

99799-80120

SENB8596

ENGINE:

6D16 DIESEL ENGINE

S6S DIESEL ENGINE MANUAL

TB45 PETROL ENGINE MANUAL


CONTENTS:

FOREWORD

GENERAL INFORMATION

COOLING SYSTEM

ELECTRICAL SYSTEM

POWER TRAIN

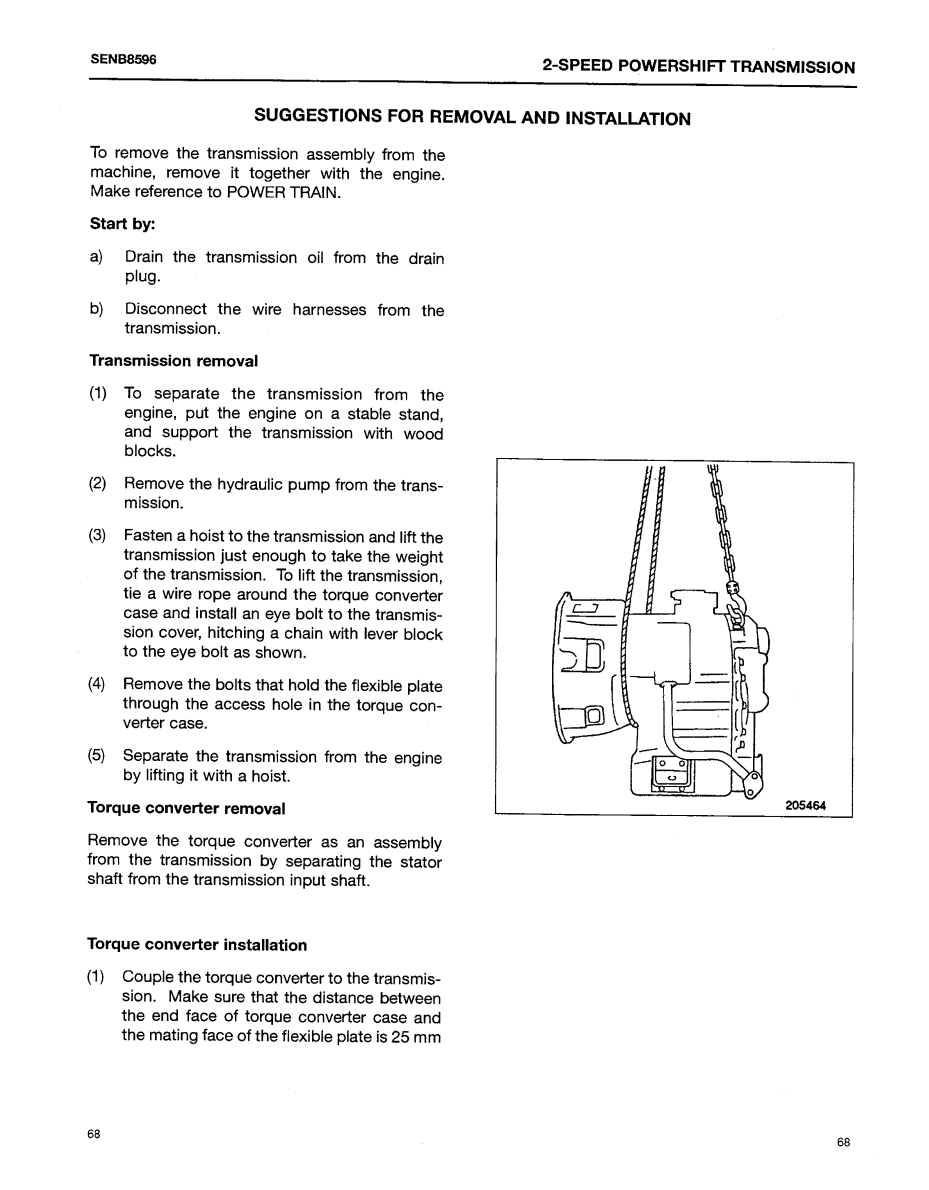

2-SPEED POWERSHIFT TRANSMISSION

3-SPEED POWERSHIFT TRANSMISSION

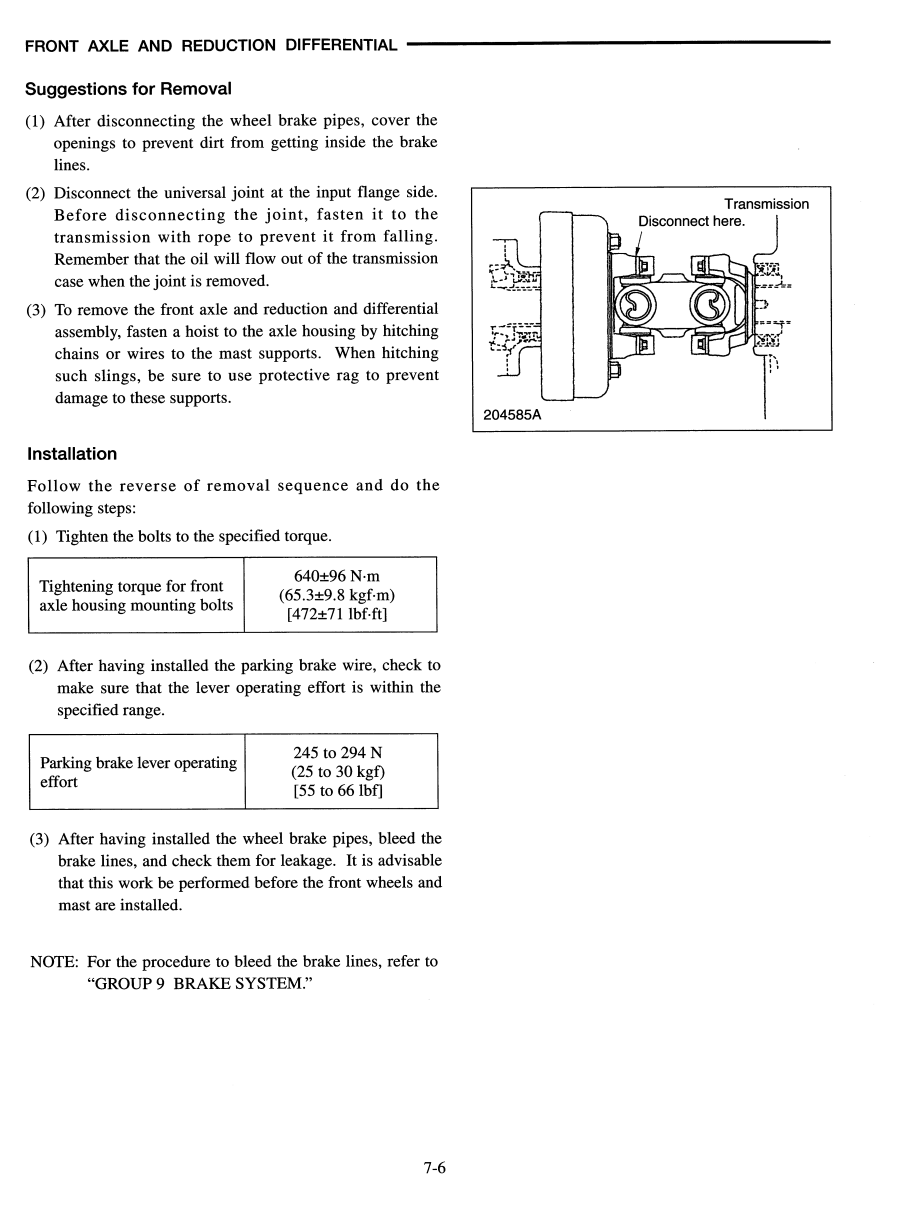

FRONT AXLE AND REDUCTION DIFFERENTIAL

REAR AXLE

BRAKE SYSTEM

STEERING SYSTEM

HYDRAULIC SYSTEM

MAST AND FORKS

HYDRAULIC FORK POSITIONER

HYDRAULIC SIDE SHIFTERS

SERVICE DATA

EXTRAS INCLUDED:

CAB WIRING DIAGRAM

SCHEMATICS

The service manual for Caterpillar (CAT) DP100, DP115, DP135, and DP150 diesel lift trucks, typically covering series with 6D16/6D16TL engines, as well as associated manuals for S6S and TB45 engine variants (often in P/PD series). These are heavy-duty, pneumatic tire forklifts with capacities ranging from 10 to 15 metric tons (approx. 22,000–33,000 lbs).
