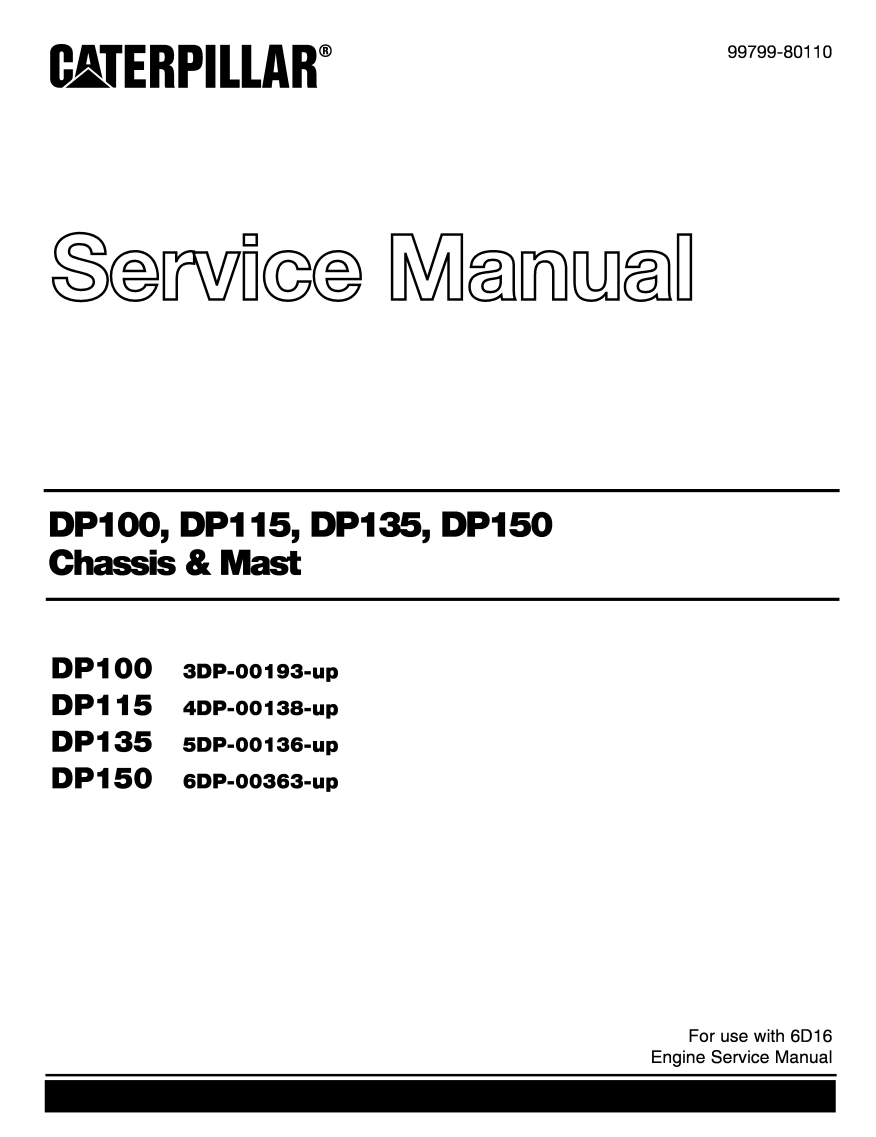

CATERPILLAR CAT DP100-DP150 FORKLIFT LIFT TRUCK SERVICE REPAIR, SCHEMATIC MANUAL

CATERPILLAR CAT DP100-DP150 FORKLIFT LIFT TRUCK SERVICE REPAIR, SCHEMATIC MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,007
FILE SIZE: 41.9MB

MODEL COVERED:

CHASSIS & MAST

DP100 3DP-00193-up

DP115 4DP-00138-up

DP135 5DP-00136-up

DP150 6DP-00363-up

PART NO:

99799-80110


CONTENTS:

GENERAL INFORMATION

COOLING SYSTEM

ELECTRICAL SYSTEM

POWER TRAIN

2 SPEED POWERSHIFT TRANSMISSIONS

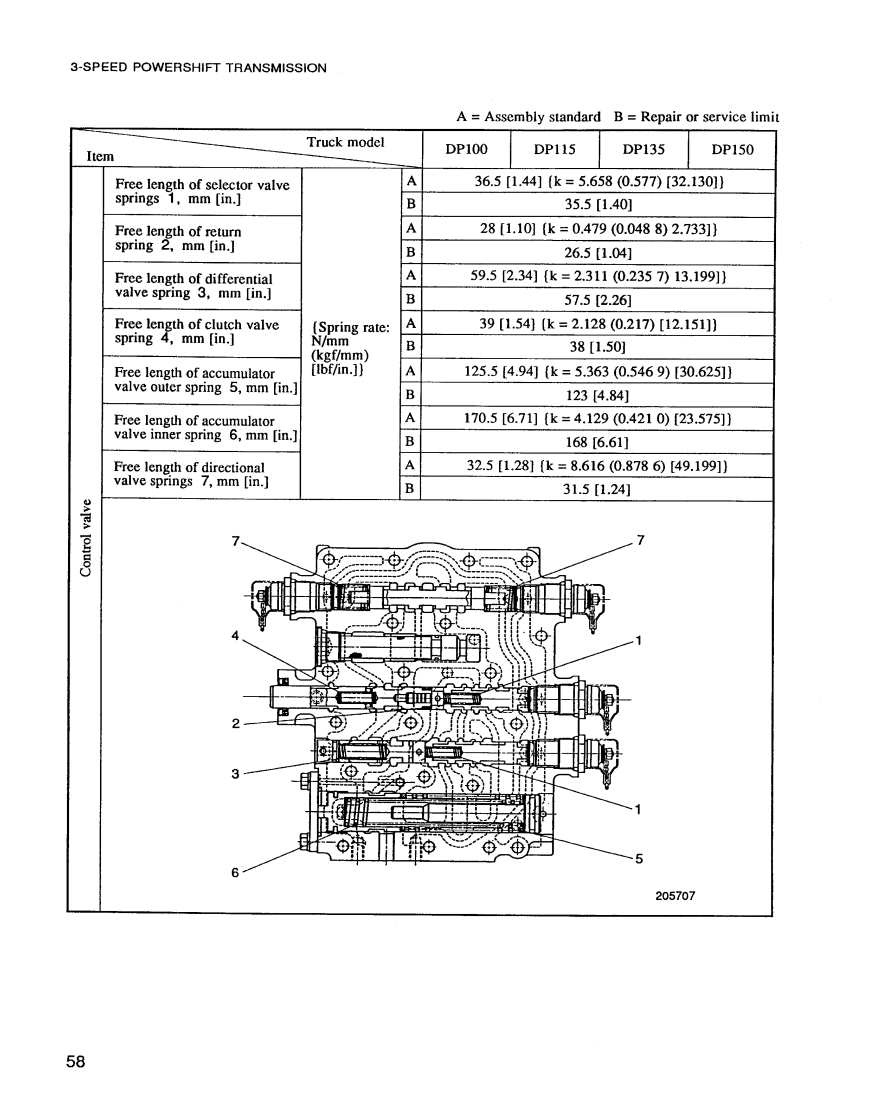

3 SPEED POWERSHIFT TRANSMISSIONS

FRONT AXLE AND REDUCTION DIFFERENTIAL

REAR AXLE

BRAKE SYSTEM

STEERING SYSTEM

HYDRAULIC SYSTEM

MASTS AND FORKS

HYDRAULIC FORK POSITIONERS

HYDRAULIC SIDE SHIFTERS

SERVICE DATA


EXTRAS INCLUDED:

6D16 DIESEL ENGINE MANUAL

SCHEMATIC

The Caterpillar Cat DP100-DP150 Service Repair Manual (part number 99799-80110) is a comprehensive technical guide for maintaining and overhauling heavy-duty diesel lift trucks. It specifically covers the DP100, DP115, DP135, and DP150 models equipped with Mitsubishi 6D16 diesel engines.
