CATERPILLAR CAT DP70NH, DP80NH, DP100NH LIFT TRUCK SERVICE, OPERATION MANUAL

CATERPILLAR CAT DP70NH, DP80NH, DP100NH LIFT TRUCK SERVICE, OPERATION MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 570
FILE SIZE: 30.6MB

MODEL AND ENGINE COVERED:

DP70NH  30E-00001-0999

DP80NH  30F-00001-0999

DP100NH 30G-00001-09999

PART NO:

99709-41100

ENGINE:

A-6BG1QC02 A-6BG1QC09 DIESEL ENGINE


CONTENTS:

FOREWORD

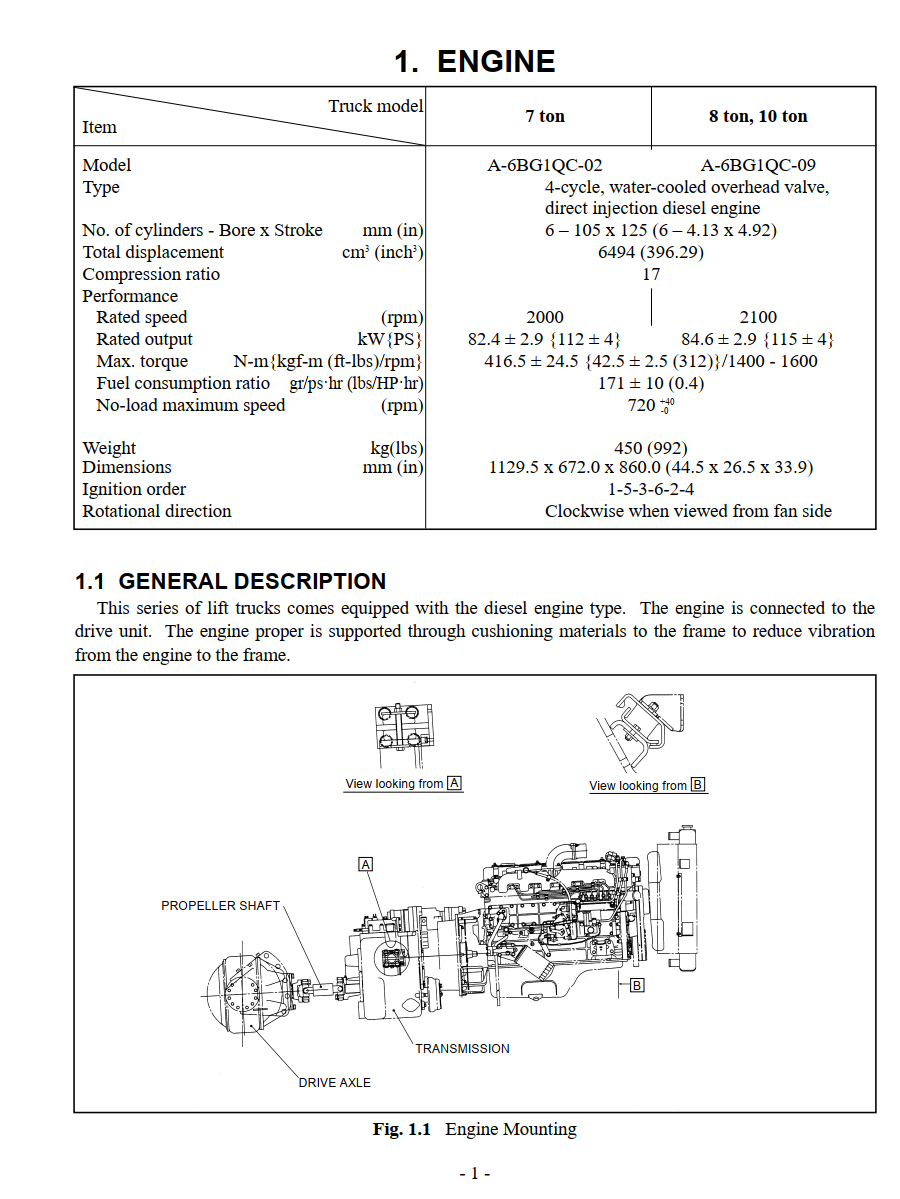

ENGINE

DRIVE UNIT

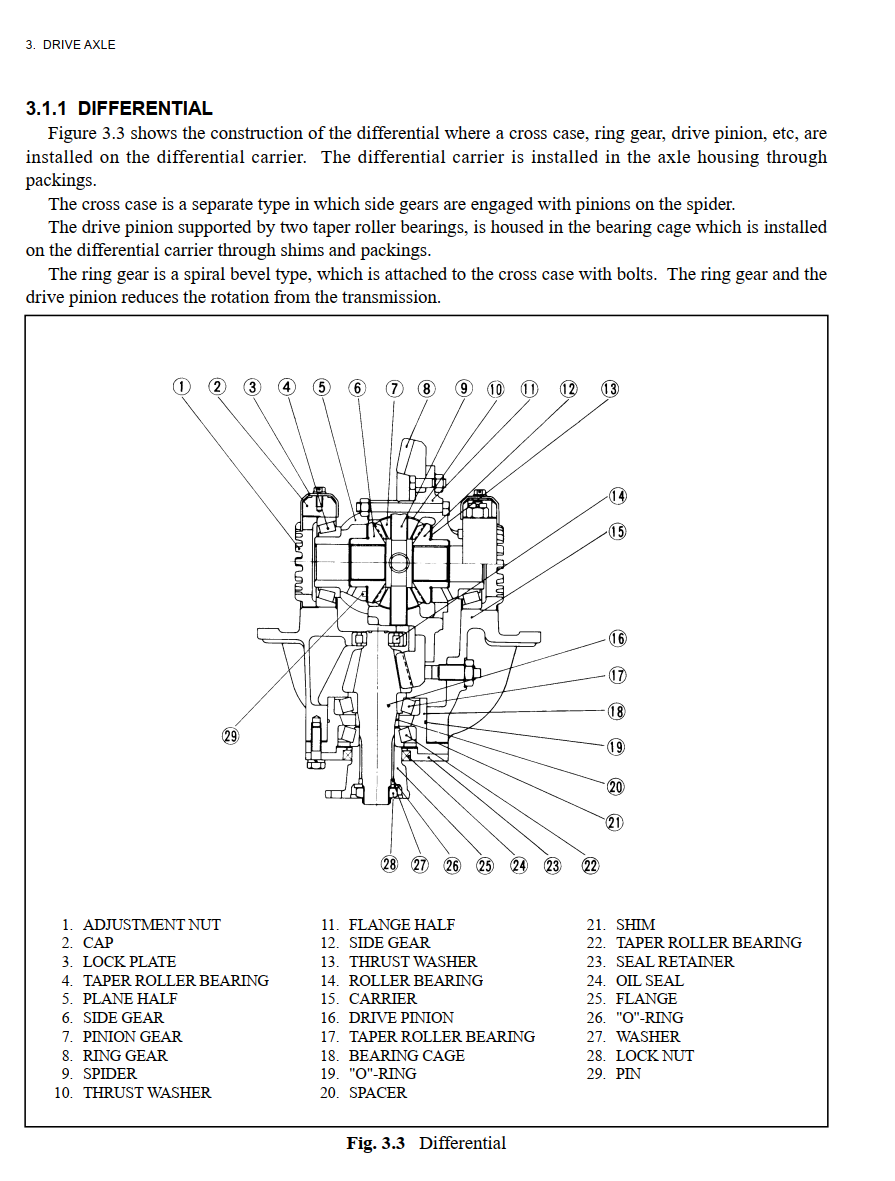

DRIVE AXLE

BRAKE SYSTEM

STEERING SYSTEM

HYDRAULIC SYSTEM

LOAD HANDLING SYSTEM

STEERING SYSTEM

ELECTRICAL WIRING DIAGRAMS

Cat Lift Trucks’ 7-, 8-, and 10-ton models are designed for low noise and reduced vibration, featuring a high-performance engine. They use a full-power shift transmission that automatically handles gear changes, and a full-hydraulic brake system that provides strong braking with minimal pedal effort. The hydraulic system is simplified with an integrated flow divider, and the instrument panel can include optional monitors for quick checks of key conditions like water level and battery charge. The service manual explains the main components and maintenance procedures, though specifications may change over time.
