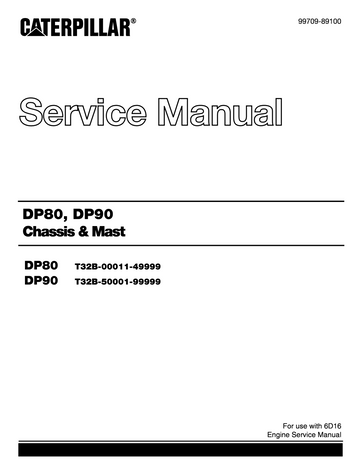

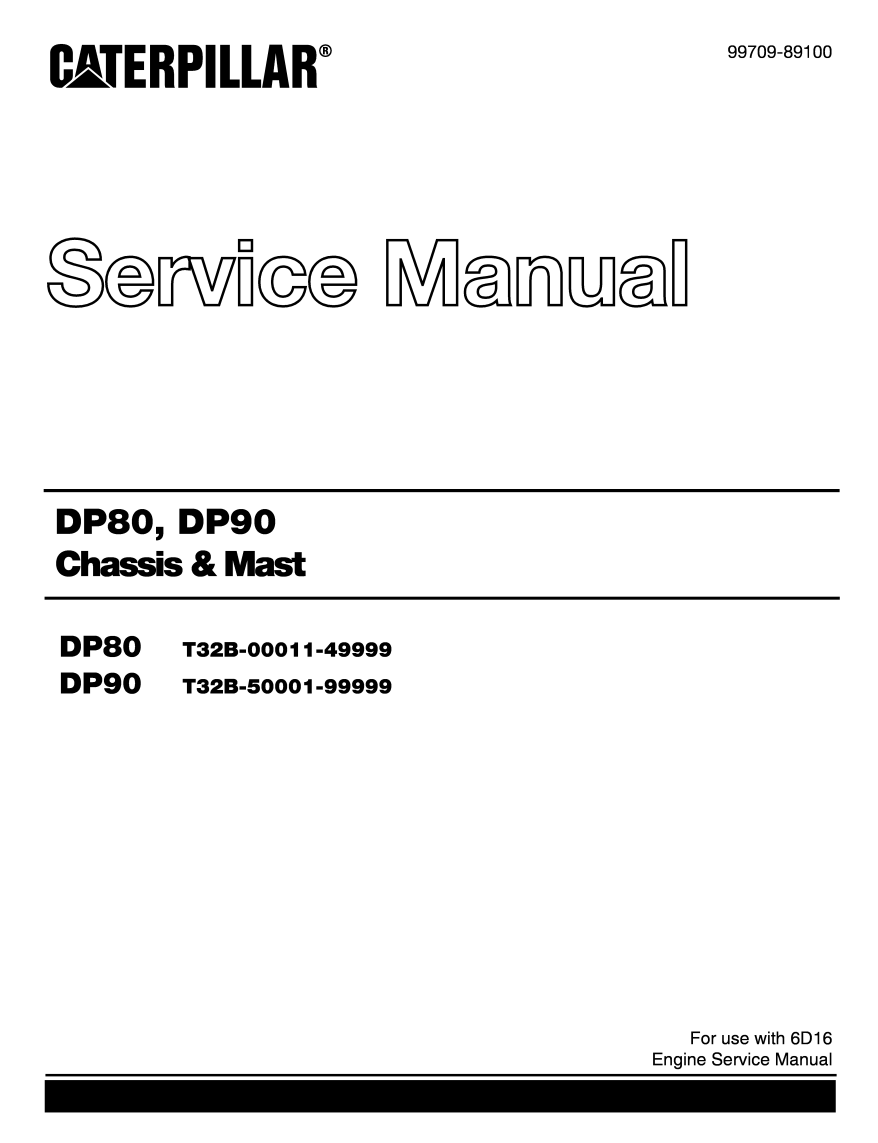

CATERPILLAR CAT DP80 DP90 FORKLIFT LIFT TRUCK SERVICE REPAIR, SCHEMATIC MANUAL

CATERPILLAR CAT DP80 DP90 FORKLIFT LIFT TRUCK SERVICE REPAIR, SCHEMATIC MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 705
FILE SIZE: 29.8MB

MODEL COVERED:

CHASSIS & MAST

DP80 T32B-00011-49999

DP90 T32B-50001-99999

PART NO:

99709-89100


CONTENTS:

GENERAL INFORMATION

COOLING SYSTEM

ELECTRICAL SYSTEM

POWER TRAIN

2 SPEED POWERSHIFT TRANSMISSIONS

3 SPEED POWERSHIFT TRANSMISSIONS

FRONT AXLE AND REDUCTION DIFFERENTIAL

REAR AXLE

BRAKE SYSTEM

STEERING SYSTEM

HYDRAULIC SYSTEM

MASTS AND FORKS

SERVICE DATA


EXTRAS INCLUDED:

ELECTRICAL SYSTEM SCHEMATIC

This service manual is a guide to servicing of Caterpillar Lift Trucks of 8-ton and 9-ton models (DP80, DP90). The instructions are grouped by systems to serve the convenience of your ready reference.

Long productive life of your lift trucks depends to a great extent on correct servicing – the servicing consistent with what you will learn from this service manual. We hope you read the respective sections of this manual carefully and know all the components you will work on before attempting to start a test, repair or rebuild job.

The descriptions, illustrations and specifications contained in this manual were of the trucks of serial numbers in effect at the time it was approved for printing. Caterpillar reserves the right to change specifications or design without notice and without incurring obligation.

These lift trucks are powered by Mitsubishi 6D16 diesel engine. For the items of the engine, refer to the following service manual: 6D16 Diesel Engine Service Manual
