CATERPILLAR CAT E3000 E3500 E4000 EC4000 E5000 EX5000 E5500 E6000 E6500 LIFT TRUCK SERVICE REPAIR MANUAL

CATERPILLAR CAT E3000 E3500 E4000 EC4000 E5000 EX5000 E5500 E6000 E6500 LIFT TRUCK SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 582
FILE SIZE: 10.6MB

MODEL COVERED:

E3000, E3500, EC4000

A4EC1-10200-up

A4EC1-20200-up

A4EC1-30200-up

E4000, E5000

A4EC2-10200-up

A4EC2-20200-up

EX5000, E5500, E6000

A4EC3-20200-up

A4EC3-30200-up

A4EC3-40200-up

E6500

A4EC4-10200-up

PART NO:

99759-8B110


CONTENTS:

GENERAL INFORMATION

FRONT AXLE & REDUCTION DIFFERENTIAL

TRANSFER ASSEMBLY

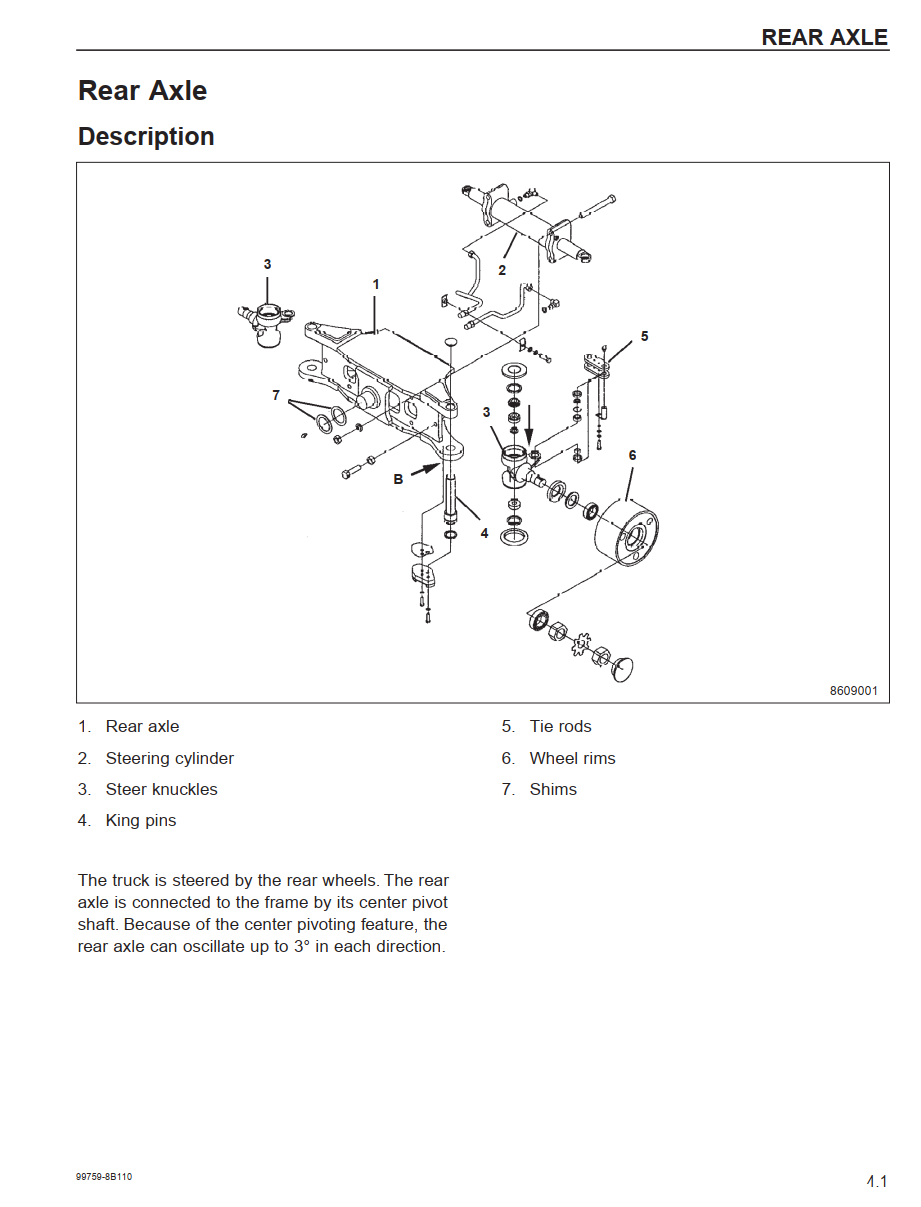

REAR AXLE

BRAKE SYSTEM

STEERING SYSTEM

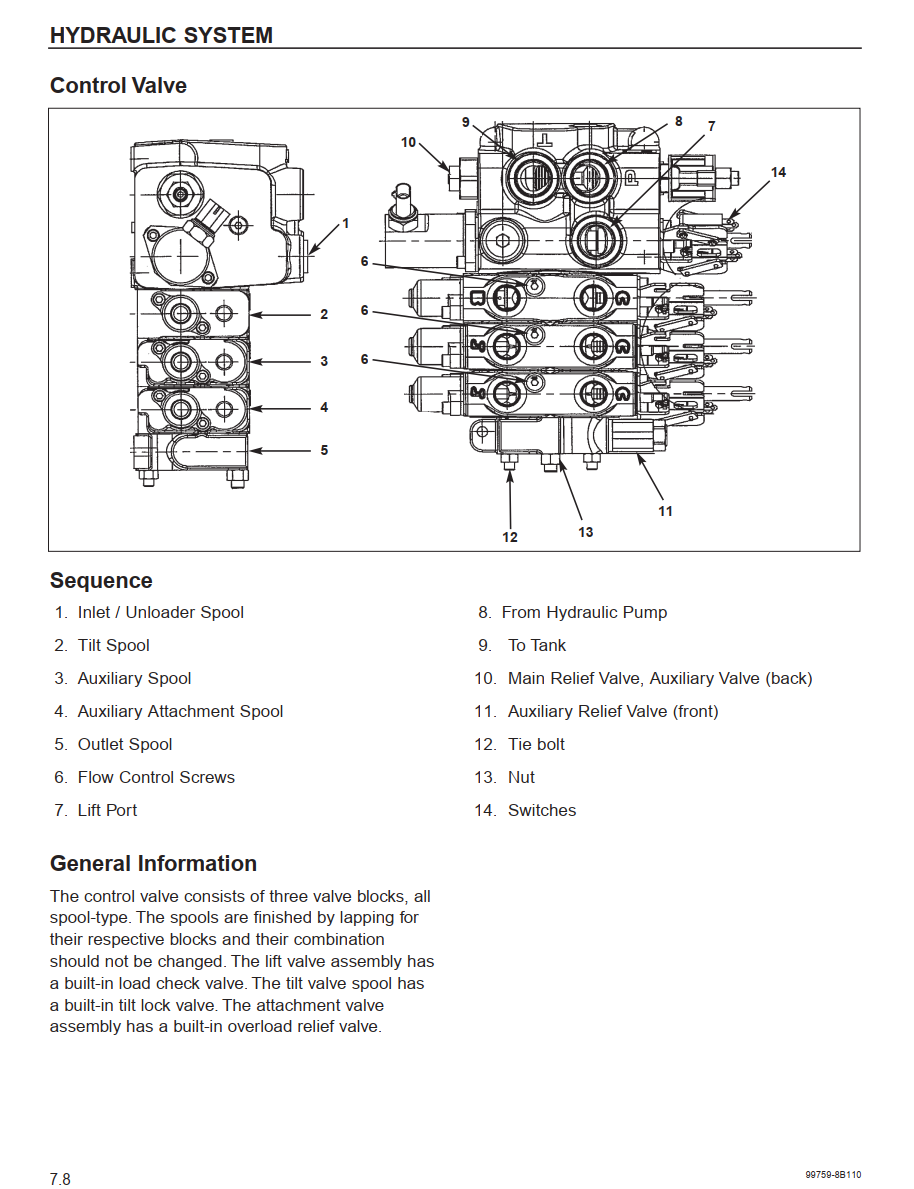

HYDRAULIC SYSTEM

MAST AND FORKS

TROUBLESHOOTING

MAINTENANCE SERVICE DATA

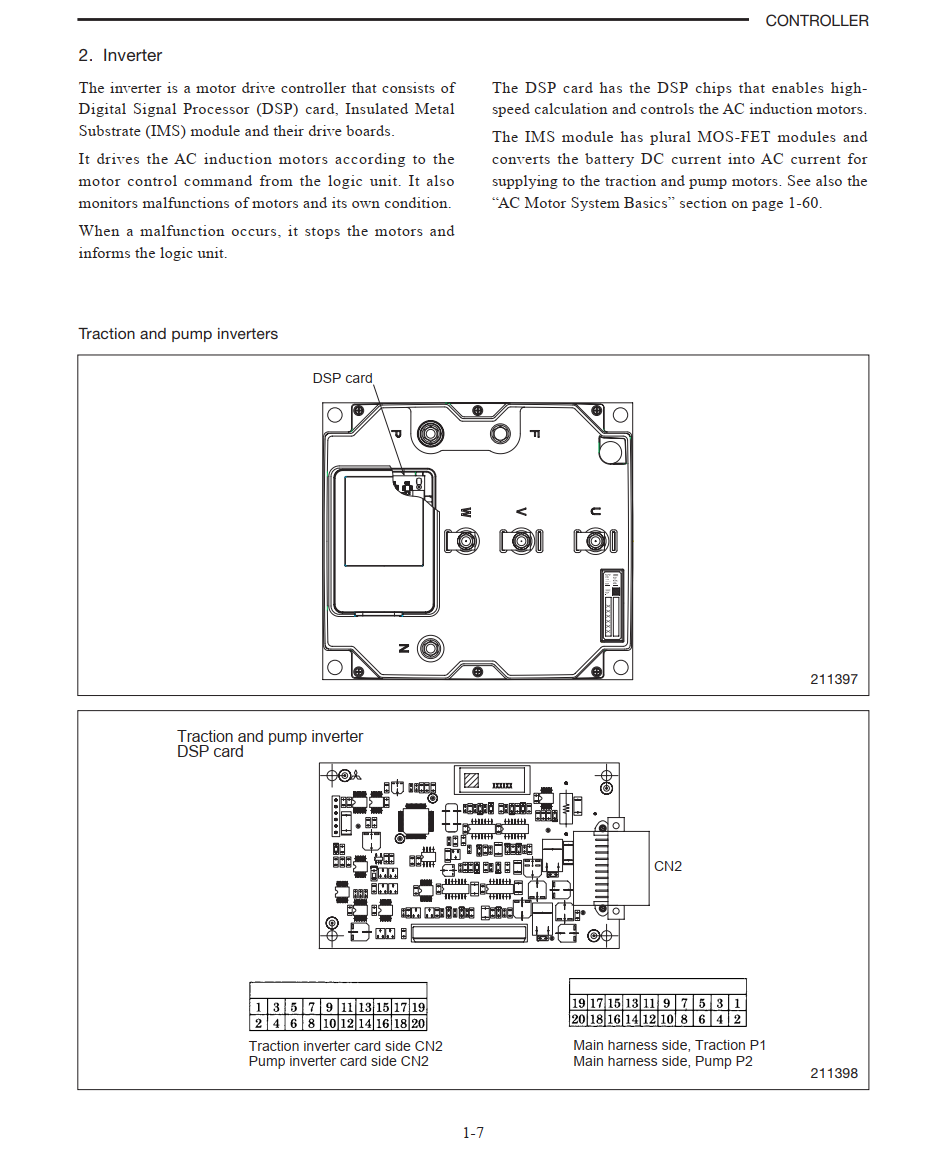

CONTROLLER

TROUBLESHOOTING FOR CONTROL CIRCUITS

E3000 CONTROLLER INFO

E3000 GENERAL INFO

E3000 TROUBLESHOOTING CHASSIS

E3000 WIRING DIAGRAMS

MOTORS

WIRING DIAGRAMS

MAST TILTING ANGLES

The Caterpillar CAT E3000–E6500 lift truck service manual covers electric forklift models from E3000 to E6500.
It includes general specifications, safety procedures, and identification details.
A major focus is on electrical systems, including wiring diagrams, battery, and controller diagnostics.
It explains drive systems, traction motors, hydraulics, steering, and braking systems.
The manual provides step-by-step repair, disassembly, and reassembly instructions.
It also includes troubleshooting guides, fault codes, and diagnostic procedures.
Finally, it outlines maintenance schedules, lubrication, and torque specifications for servicing.
