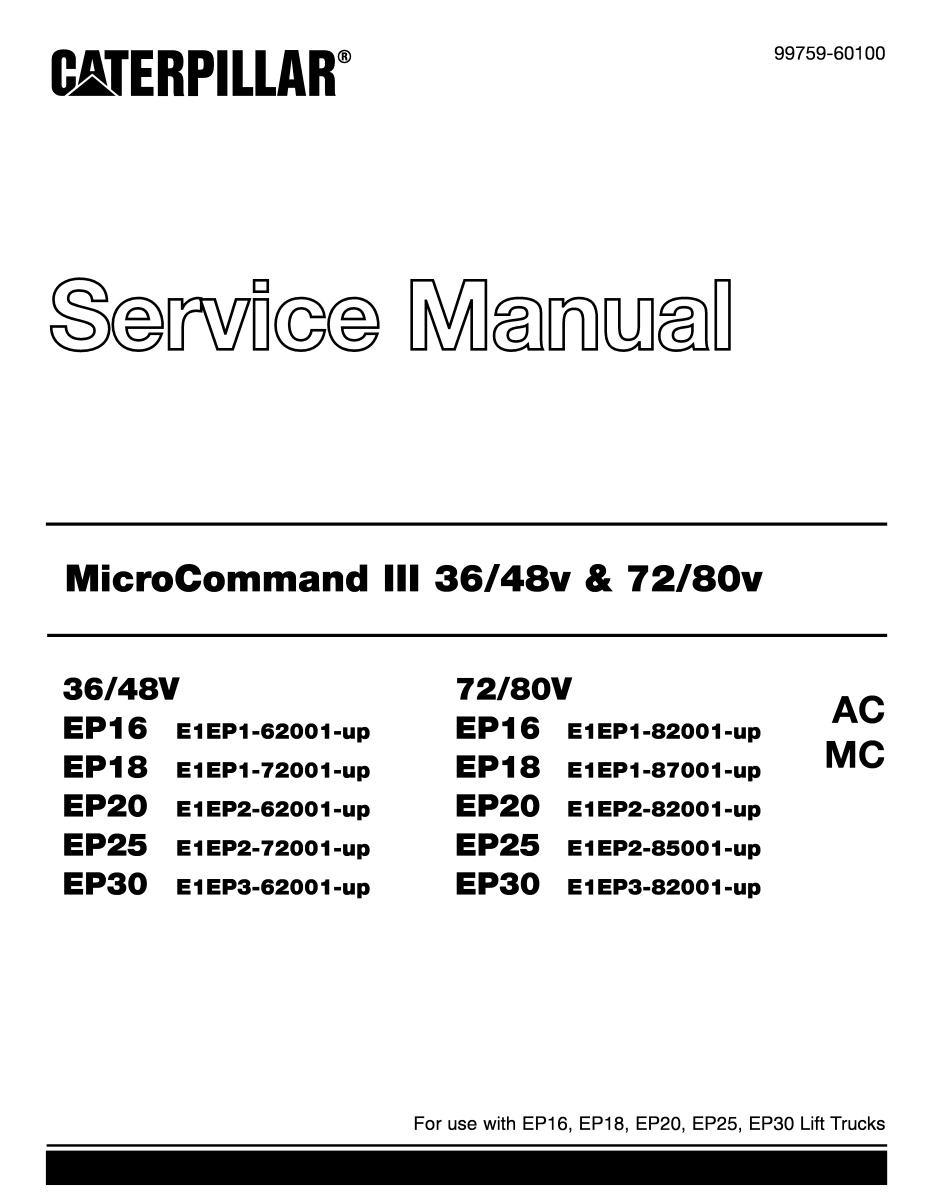

CATERPILLAR CAT EP16 EP18 EP20 EP25 EP30 36V 48V 72V 80V MicroCommand III LIFT TRUCK SERVICE, WIRING MANUAL

CATERPILLAR CAT EP16 EP18 EP20 EP25 EP30 36V 48V 72V 80V MicroCommand III LIFT TRUCK SERVICE, WIRING MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 182
FILE SIZE: 12.1MB

MODEL COVERED:

MicroCommand III 36/48v & 72/80v

36V/48V

EP16 E1EP1-62001-up

EP18 E1EP1-72001-up

EP20 E1EP2-62001-up

EP25 E1EP2-72001-up

EP30 E1EP3-62001-up

72V/80V

EP16 E1EP1-82001-up

EP18 E1EP1-87001-up

EP20 E1EP2-82001-up

EP25 ElEP2-85001-up

EP30 E1EP3-82001-up

PART NO:

99759-60100

FOR EP16, EP18, EP20, EP25, EP30 Lift Trucks


CONTENTS:

SPECIFICATIONS

SYSTEMS OPERATION

TESTING AND ADJUSTING

FINGER CONTROL SYSTEM

HYDRAULIC SYSTEM

TRACTION MODULE TEST PROCEDURE

TROUBLESHOOTING

CIRCUIT TESTS

TROUBLESHOOTING CHARTS

SYSTEM OPERATION AND TEST EQUIPMENT

PUMP MODULE TEST PROCEDURE

ELECTRICAL SYSTEM ADJUSTMENTS

WIRING DIAGRAMS

The Caterpillar (CAT) EP16-EP30 series electric forklifts equipped with the MicroCommand III control system are advanced 3-wheel and 4-wheel electric pneumatic tire forklifts, typically operating across 36V, 48V, 72V, and 80V systems. The MicroCommand III system is known for its transistorized control of traction and hydraulic motors, offering high energy efficiency and precise control.
