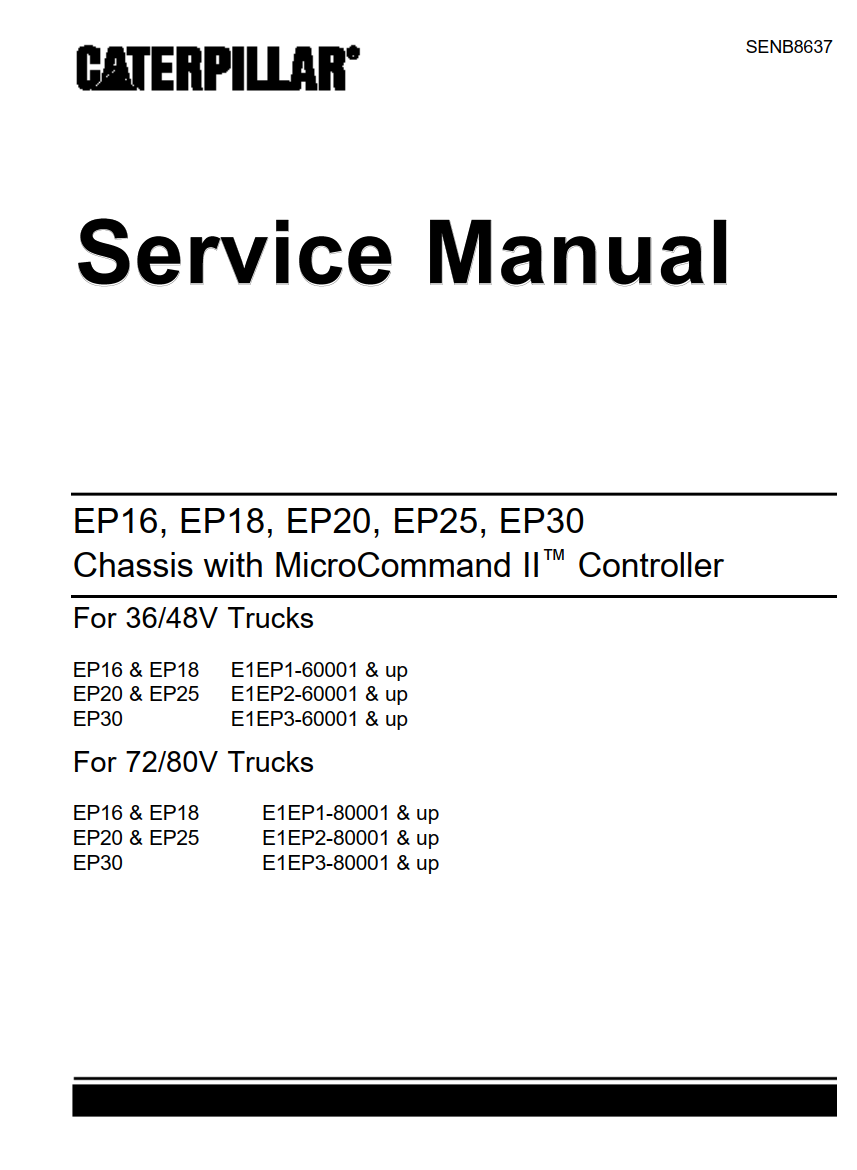

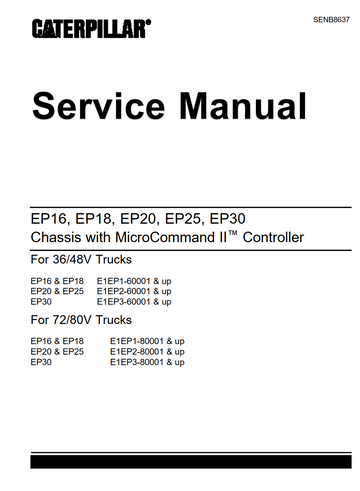

CATERPILLAR CAT EP16, EP18, EP20, EP25, EP30 CHASSIS WITH MICROCOMMAND II CONTROLLER FORKLIFT SERVICE MANUAL

CATERPILLAR CAT EP16, EP18, EP20, EP25, EP30 CHASSIS WITH MICROCOMMAND II CONTROLLER FORKLIFT SERVICE MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 218
FILE SIZE: 4.56MB

MODEL COVERED:

CHASSIS WITH MICROCOMMAND II CONTROLLER

FOR 36/48V TRUCKS

EP16 & EP18 E1EP1-60001 & UP

EP20 & EP25 E1EP2-60001 & UP

EP30 E1EP3-60001 & UP

FOR 72/80V TRUCKS

EP16 & EP18 E1EP1-80001 & UP

EP20 & EP25 E1EP2-80001 & UP

EP30 E1EP3-80001 & UP

PART NO:

SENB8637


CONTENTS:

GENERAL INFORMATION

REAR AXLE

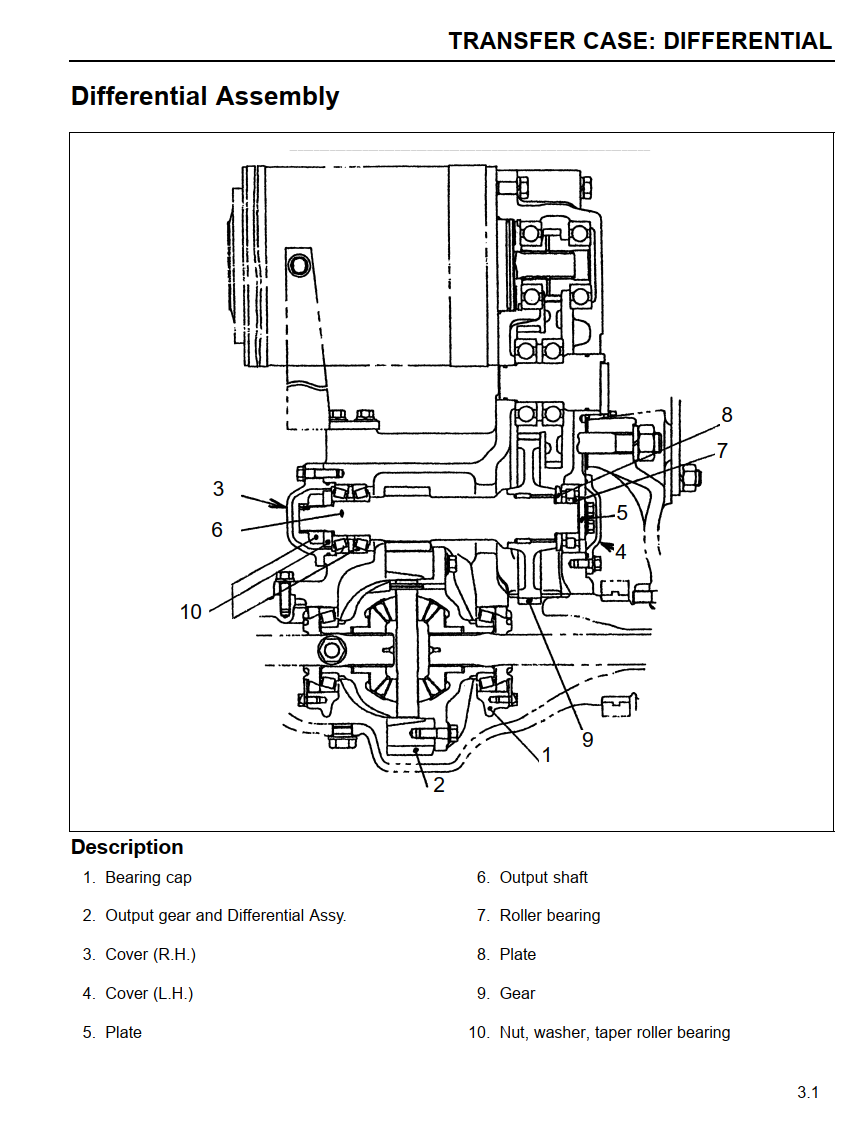

TRANSFER CASE

STEERING SYSTEM

FRONT AXLE

BRAKE SYSTEM

HYDRAULIC SYSTEM

MAST AND FORKS

TROUBLESHOOTING

MAINTENANCE SERVICE DATA

The Caterpillar CAT EP16-EP30 Chassis with MicroCommand II Controller Service Manual provides comprehensive repair, maintenance, and troubleshooting instructions for electric forklifts, covering models EP16KT, EP18KT, EP20KC, EP25K, and EP30K. Available as a downloadable PDF, it features detailed sections on chassis components, electrical circuits, motors, and hydraulic systems, often structured in specialized manuals.
