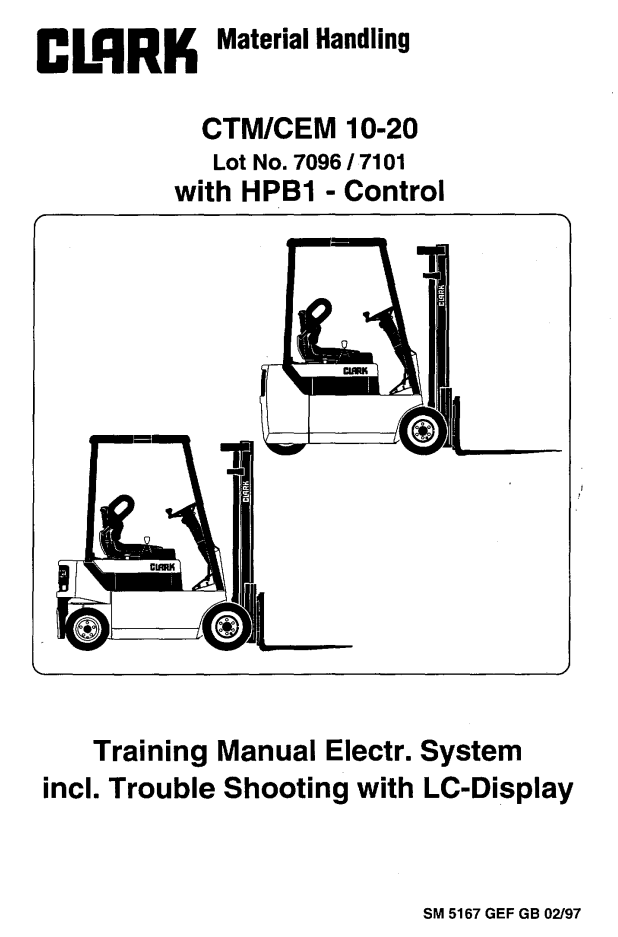

CLARK CTM CEM 10 - 20 SM 5167 MATERIAL HANDLING FORKLIFT SERVICE REPAIR MANUAL

CLARK CTM CEM 10 - 20 SM 5167 MATERIAL HANDLING FORKLIFT SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF (SCANNED PDF)
PAGES: 126
FILE SIZE: 2.41MB

MODEL COVERED:

CTM/CEM 10-20

LOT NO. 7096 / 7101

WITH HPB1 - CONTROL

PART NO: SM 5167

FEBRUARY, 1997


CONTENTS:

1 INTRODUCTION

2 LOCATION OF THE COMPONENTS - SUBASSEMBLIES

Layout of HP81 control system

Layout of 81 control

Cable Connections - Traction Control B1

Connectors Traction Control B1

Cable Connections - Pump Control HP

Connectors Pump Control HP

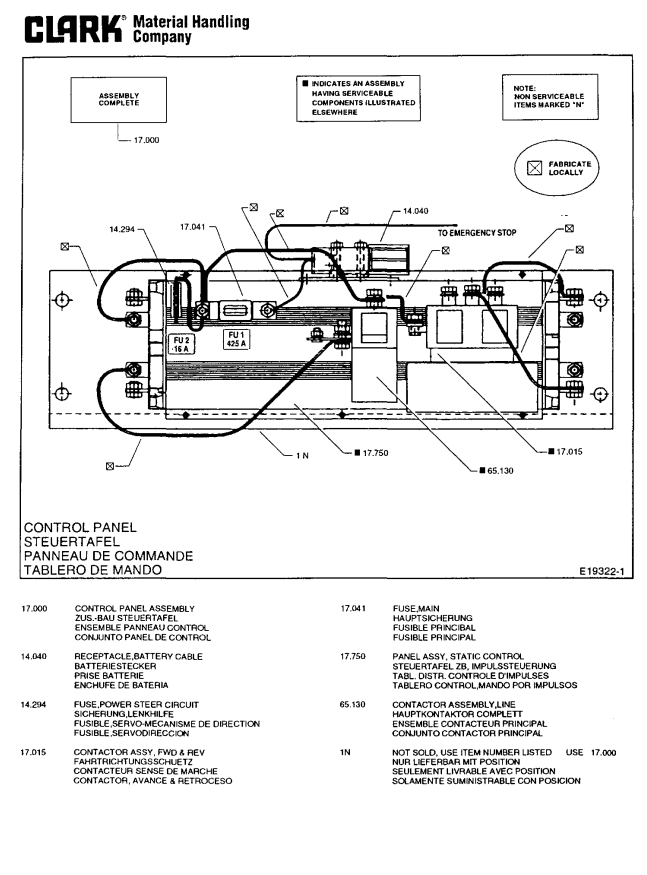

3 EXERPTS FROM THE SPARE PARTS CATALOGUE

4 GENERAL REPAIR INFORMATION

Fault finding in the HP81 control

LC-Display unit (Dash Panel)

Maintenance- and interference input

Display operation

Diagnostic and adjustments

1.Diagnostic truck periphery

2.Diagnostic pulse control

Steer wheel angle adjustment

Parameter list Traction Control B1

Parameter list Hydraulic-Pump Control

Trouble-shooting

Table fault code

5 HOW TO CHECK THE COMPONENTS

General information

Annual safety check

Removal control card

Motors

Insulation testing

Current measurements

Thermal protector

F/R contactor

Fuses

Accelerator unit

Sensor

6 WIRING DIAGRAMS
