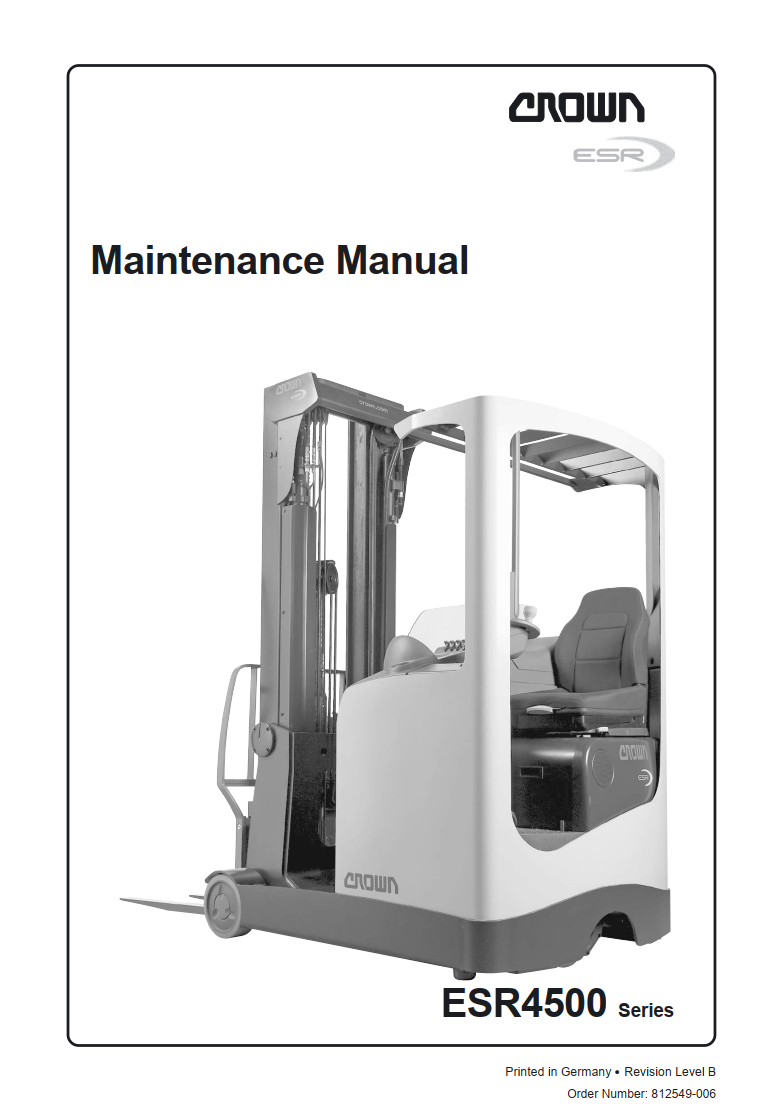

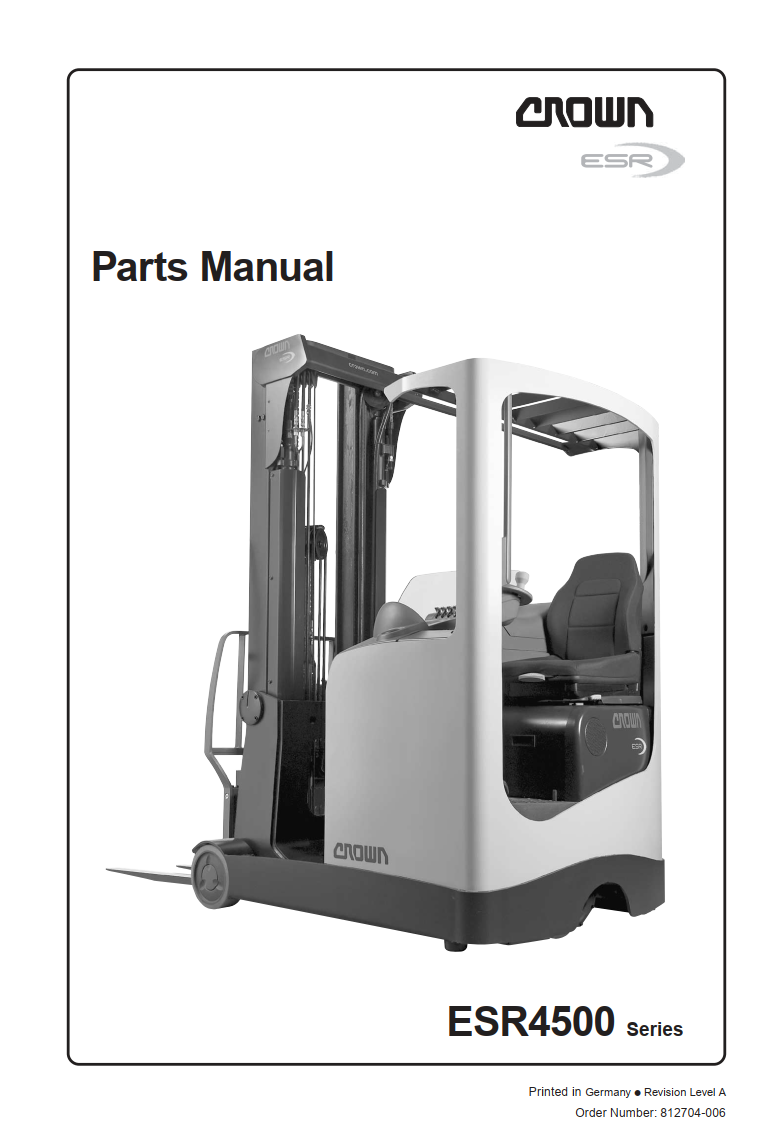

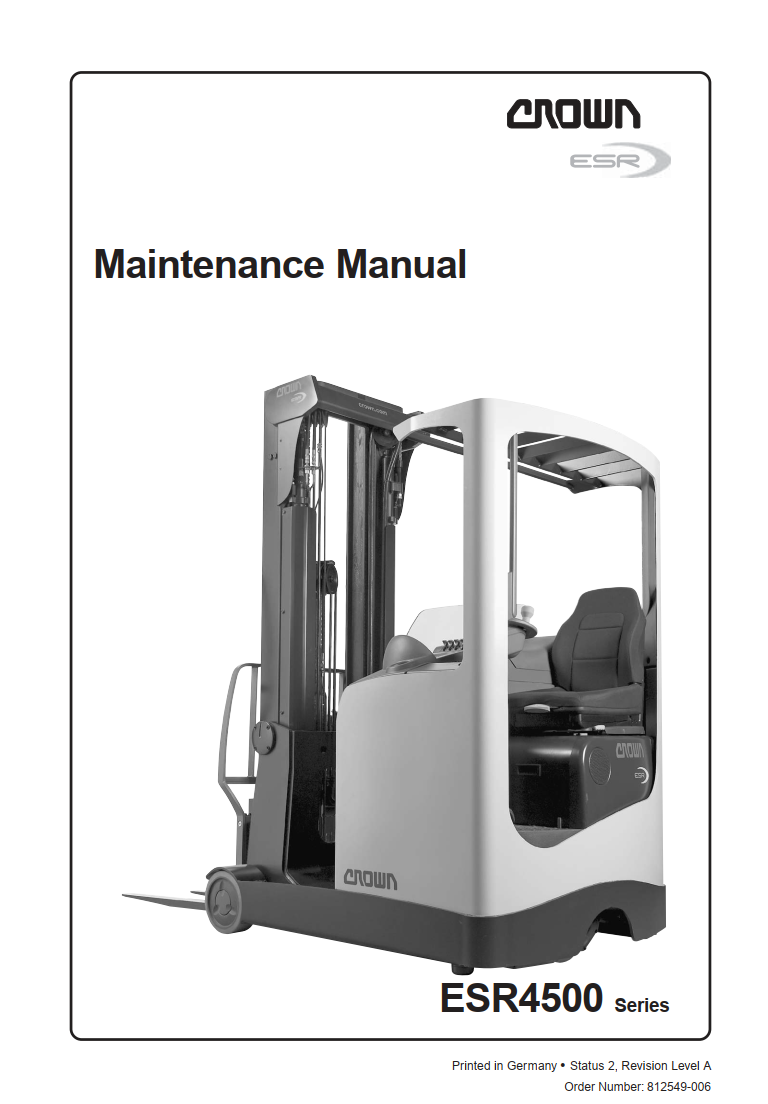

CROWN ESR4500 REACH TRUCK FORKLIFT SERVICE MAINTENANCE, PARTS MANUAL

CROWN ESR4500 REACH TRUCK FORKLIFT SERVICE MAINTENANCE, PARTS MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,216
FILE SIZE: 27.5MB

MODEL COVERED:

CROWN ESR4500 REACH TRUCK FORKLIFT

PART NO: 812549-006

REVISION LEVEL A

REVISION LEVEL B

ISSUED:

2004

2006


CONTENTS:

SAFETY

INTRODUCTION

LUBRICATION AND ADJUSTMENT

HYDRAULICS

DRIVE UNIT

ELECTRICS

BRAKE

STEERING

MAST /LIFTING

CYLINDER

ELECTRICAL DIAGRAMS

HYDRAULIC DIAGRAMS

The CROWN ESR4500 Reach Truck Forklift Service Maintenance & Parts Manual is a comprehensive workshop manual designed for professional technicians, forklift mechanics, warehouse maintenance teams, and fleet operators responsible for servicing and repairing Crown ESR4500 electric reach trucks. This manual provides complete factory-level maintenance procedures, detailed repair instructions, technical specifications, troubleshooting guides, and exploded parts illustrations to ensure accurate diagnosis, efficient repairs, and maximum equipment reliability. It covers all major mechanical, hydraulic, electrical, steering, braking, and lifting systems while helping reduce downtime and extend the service life of the reach truck. The ESR4500 service documentation includes extensive information for preventive maintenance, component removal and installation, system testing, controller diagnostics, and detailed wiring and hydraulic schematics, making it an essential resource for both routine servicing and major overhauls.
