CROWN FC 4500 SERIES AC TRACTION FORKLIFT SERVICE REPAIR AND PARTS MANUAL

CROWN FC 4500 SERIES AC TRACTION FORKLIFT SERVICE REPAIR AND PARTS MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,461
FILE SIZE: 60.7MB

MODEL COVERED:

CROWN FC 45000 SERIES AC TRACTION FORKLIFT

ISSUED:

2007


CONTENTS:

SAFETY

INTRODUCTION

LUBRICATION AND ADJUSTMENT

HYDRAULICS

DRICE UNIT

ELECTRICAL

BRAKE

STEERING

MAST

CYLINDER

PLATFORM

GLOSSARY

WIRING DIAGRAMS

The CROWN FC 4500 Series AC Traction Forklift Service Repair and Parts Manual is a comprehensive workshop guide developed for technicians, mechanics, service centers, and forklift owners responsible for maintaining and repairing CROWN FC 4500 electric counterbalance forklifts. This professional manual provides detailed service procedures, complete disassembly and assembly instructions, diagnostic troubleshooting, maintenance schedules, electrical testing methods, hydraulic repair procedures, and an illustrated parts catalog to ensure accurate repairs and maximum equipment reliability.

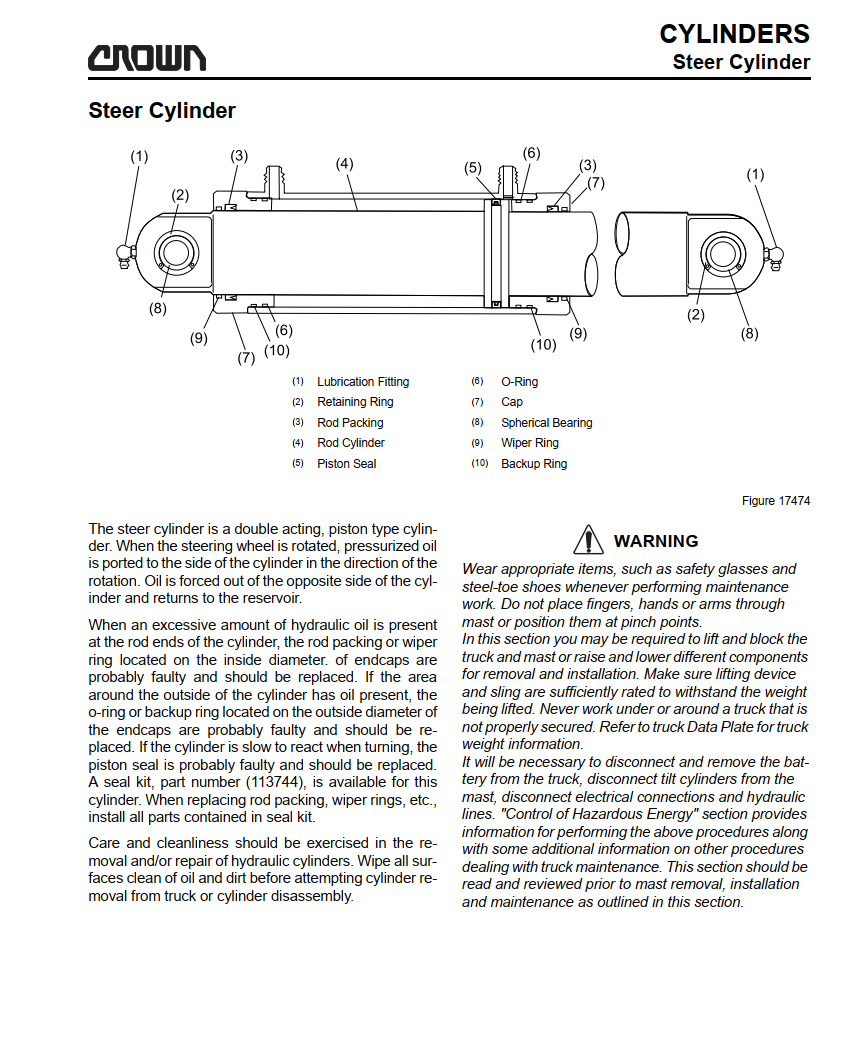

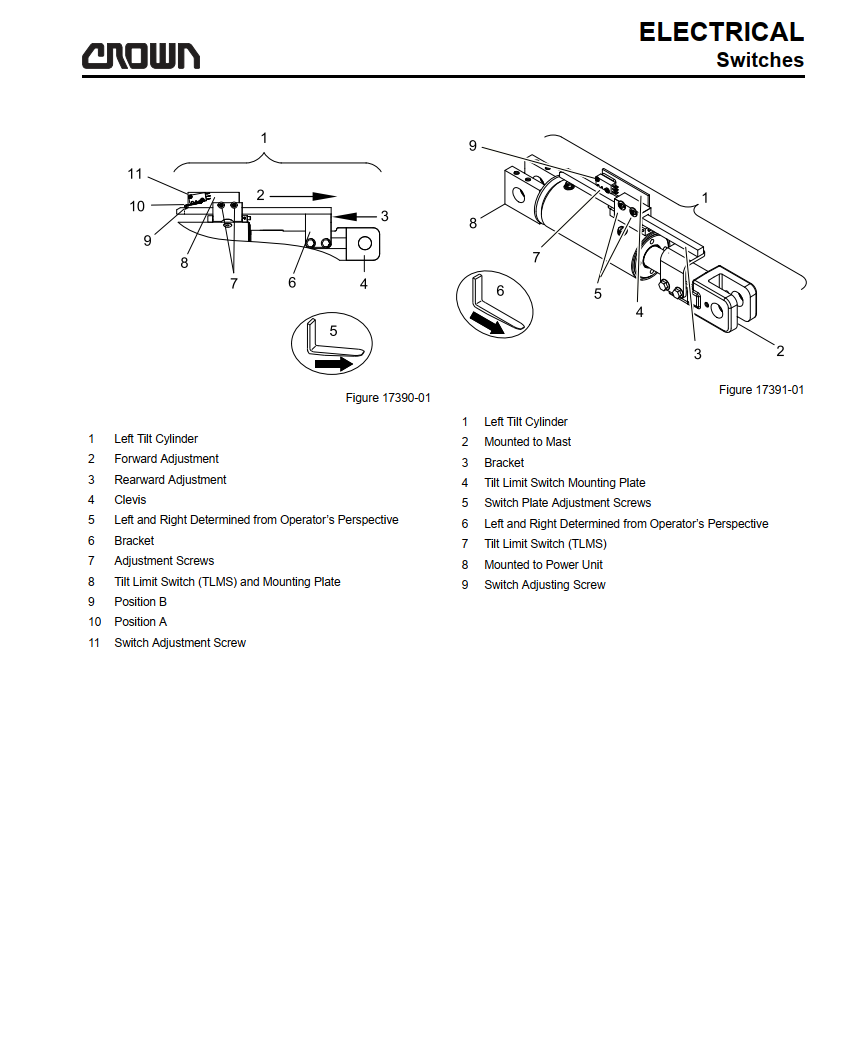

Designed for both routine maintenance and major overhauls, the manual covers every essential component of the FC 4500 Series. Step-by-step instructions are supported by detailed diagrams, wiring schematics, exploded component illustrations, torque specifications, adjustment procedures, and safety precautions. Whether replacing hydraulic components, diagnosing AC traction motor faults, servicing the steering system, or repairing electrical controls, this manual offers factory-level guidance to complete repairs efficiently and correctly.
