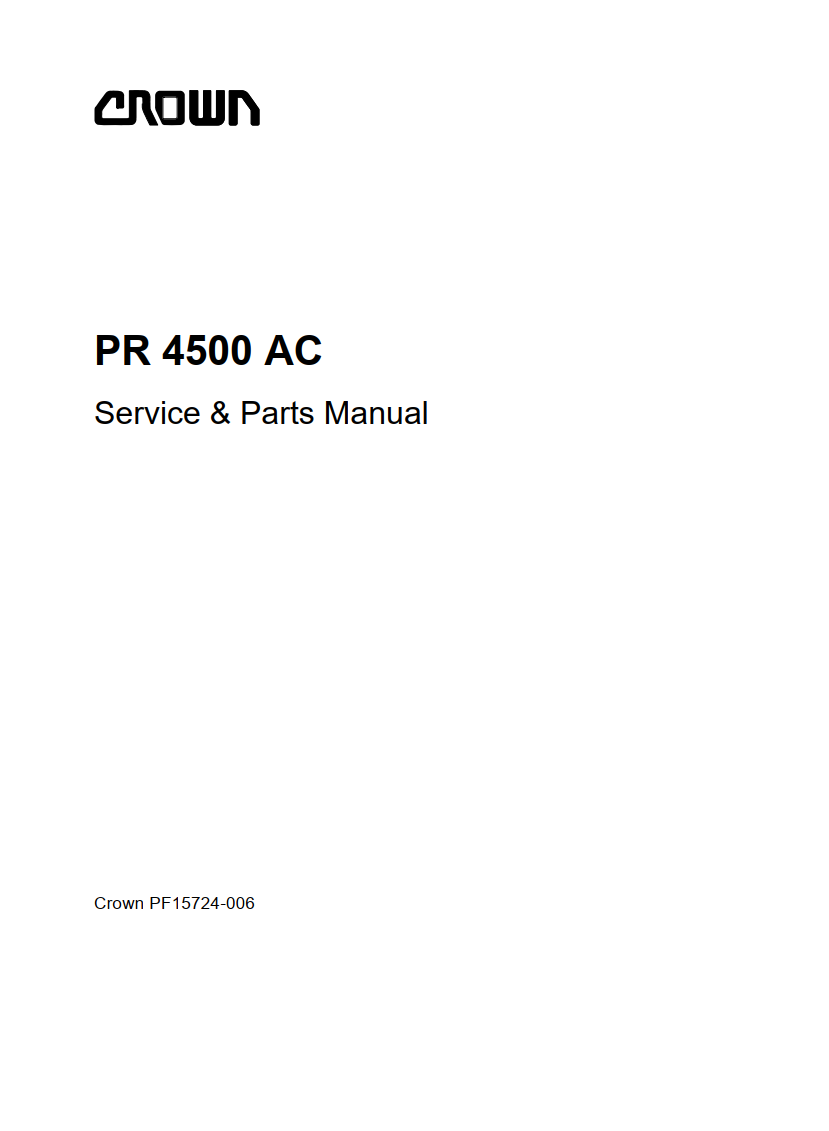

CROWN PR 4500 AC SERIES PALLET JACK FORKLIFT SERVICE AND PARTS MANUAL

CROWN PR 4500 AC SERIES PALLET JACK FORKLIFT SERVICE AND PARTS MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 782
FILE SIZE: 46.3MB

MODEL COVERED:

CROWN PR4500 AC SERIES PALLET JACK FORKLIFT

PART NO:

PF15724-006

ISSUED:

2001

2007


CONTENTS:

SAFETY

INTRODUCTION

LUBRICATION AND ADJUSTMENT

HYDRAULICS

DRICE UNIT

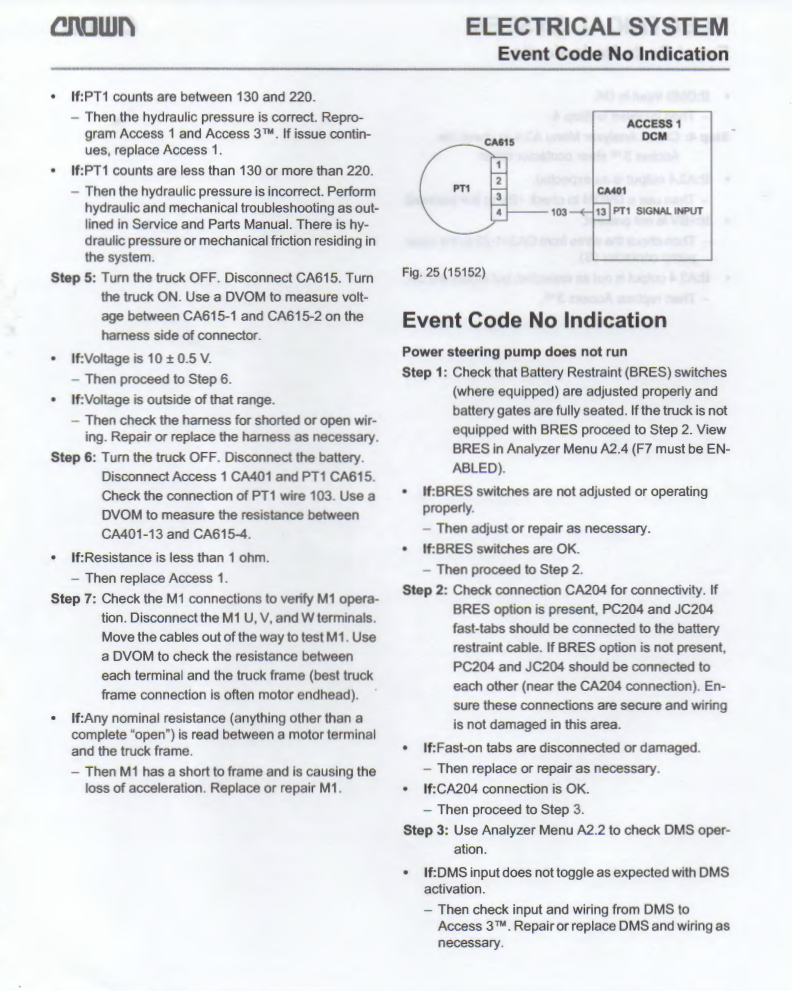

ELECTRICAL

BRAKE

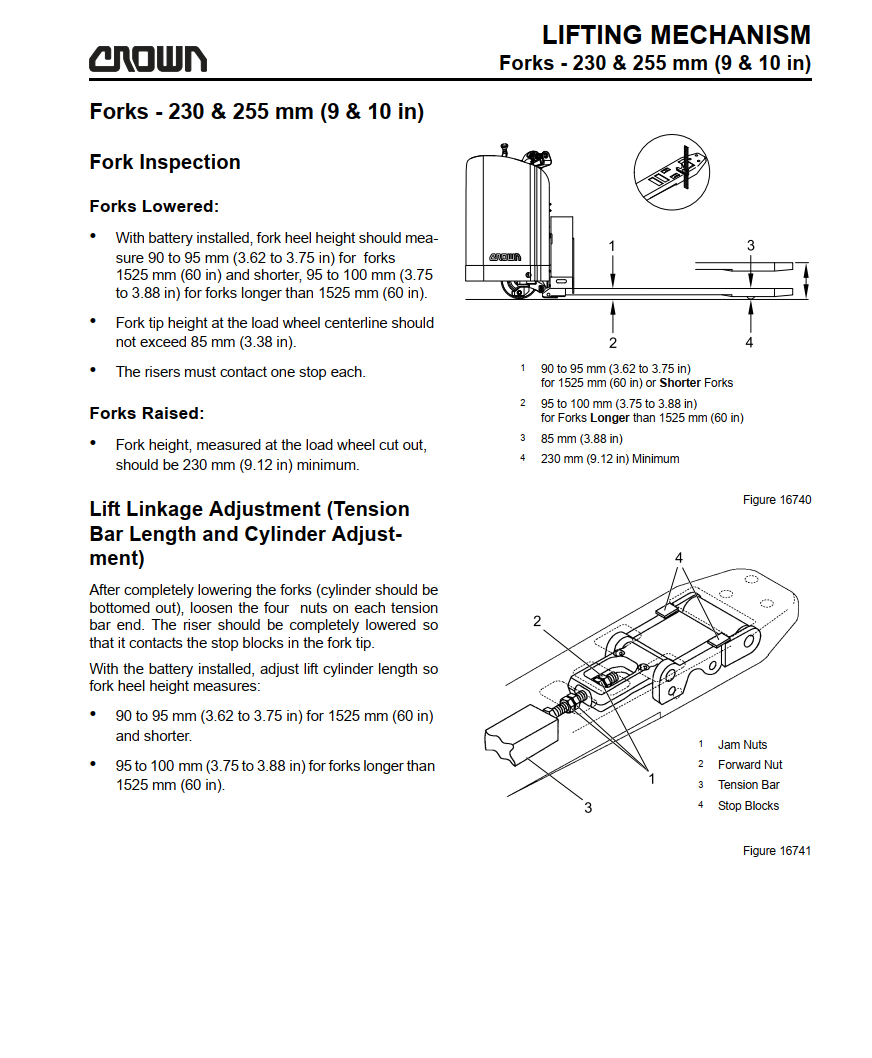

LIFTING MECHANISM

GLOSSARY

CYLINDERS

WIRING DIAGRAMS

NB: PR 4500 SERIES AC TRACTION MANUAL INCLUDED

The CROWN PR 4500 AC Series Pallet Jack Forklift Service and Parts Manual is a comprehensive factory workshop manual designed to help technicians, mechanics, and fleet operators perform professional maintenance, troubleshooting, repairs, and parts identification for the Crown PR 4500 AC Series rider pallet truck. This detailed manual includes complete service procedures, preventive maintenance schedules, electrical and hydraulic diagnostics, wiring diagrams, component disassembly and assembly instructions, AC drive system troubleshooting, steering and brake service, transmission and drive unit repairs, lift system maintenance, control handle adjustments, battery and charging system information, error code diagnostics, torque specifications, lubrication charts, safety procedures, and complete exploded-view parts catalogs with OEM part numbers for accurate replacement. The manual provides step-by-step instructions supported by detailed illustrations, diagrams, and technical specifications, making it an essential reference for maintaining maximum performance, reliability, and safety while reducing equipment downtime. Factory manuals for the PR 4500 AC Series are typically extensive, with versions around 406 pages covering service and parts information in detail.
