CROWN RR5200 SERIES RECH TRUCK FORKLIFT SERVICE, REPAIR AND PARTS MANUAL

CROWN RR5200 SERIES RECH TRUCK FORKLIFT SERVICE, REPAIR AND PARTS MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 2,398
FILE SIZE: 129MB

MODEL COVERED:

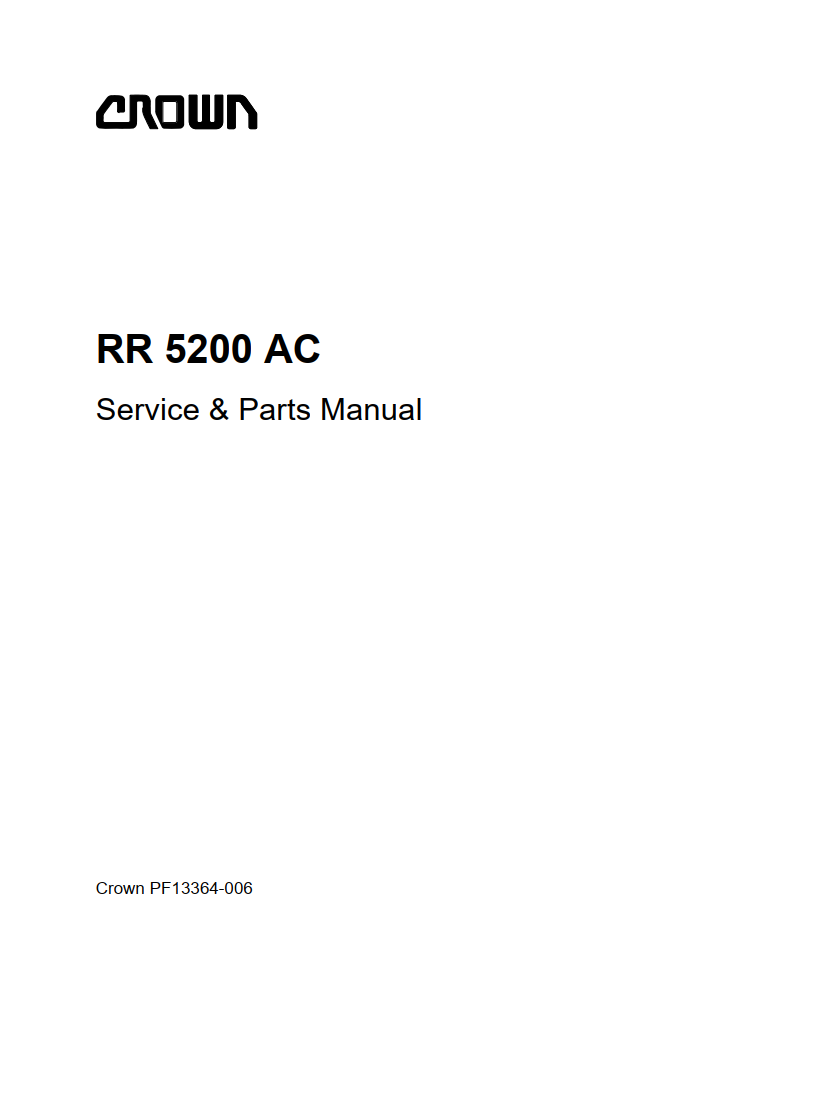

CROWN RR5200 AC

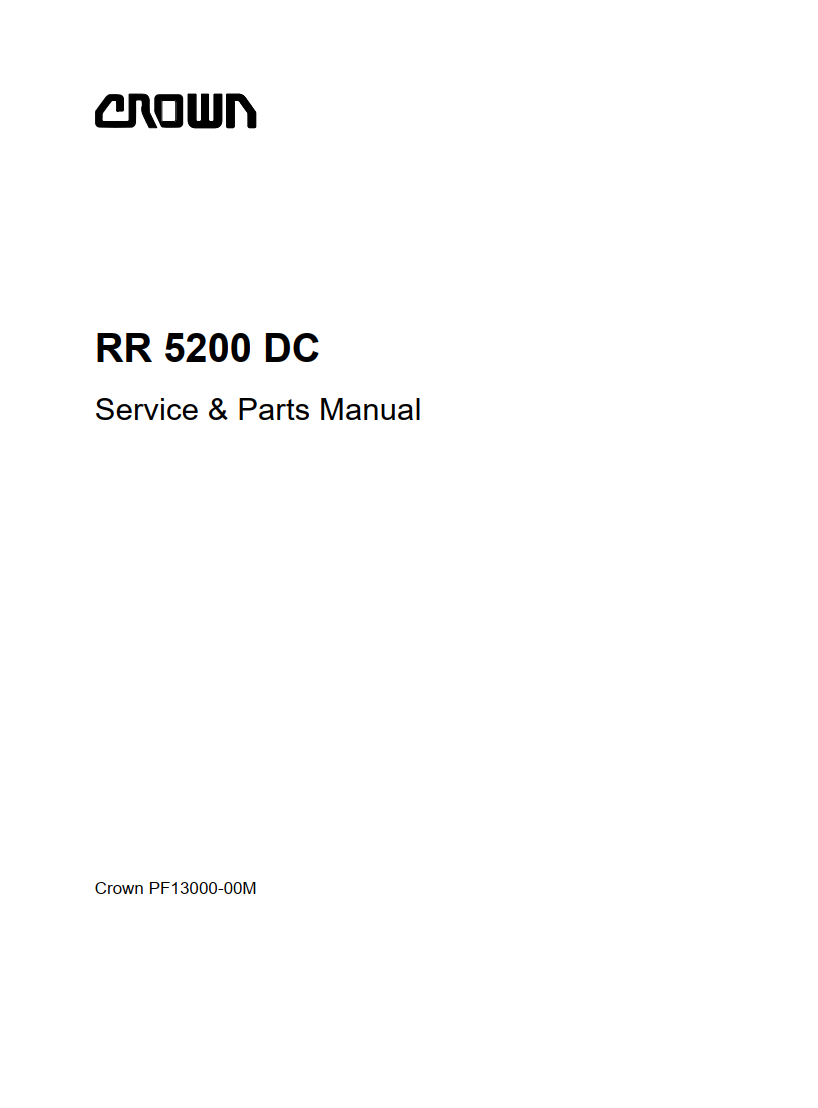

CROWN RR5200 DC

PART NO:

PF13000-00M

PF13364-006

ISSUED:

2001


CONTENTS:

LUBRICATION AND ADJUSTMENT

HYDRAULIC MAINTENANCE

DRIVE UNIT MAINTENANCE

ELECTRICAL MAINTENANCE

BRAKE MAINTENANCE

STEERING MAINTENANCE

MAST MAINTENANCE

CYLINDER MAINTENANCE

REACH MECHANISM MAINTENANCE

GLOSSARY

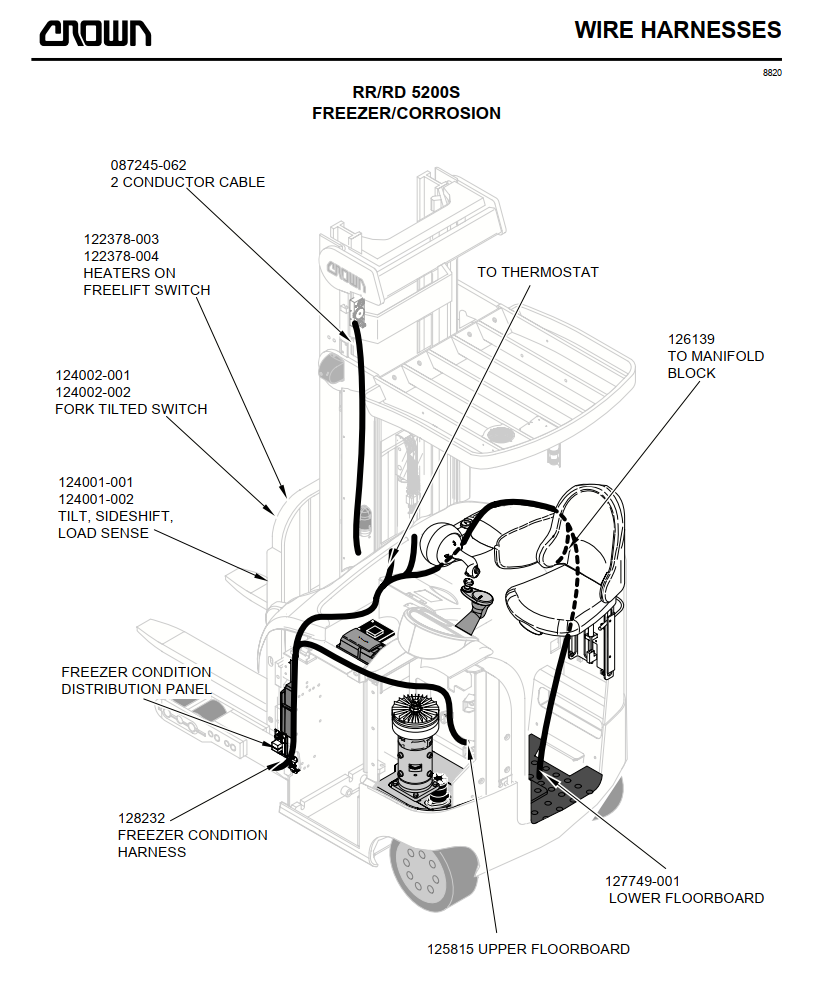

WIRING DIAGRAMS

HYDRAULIC SCHEMATICS

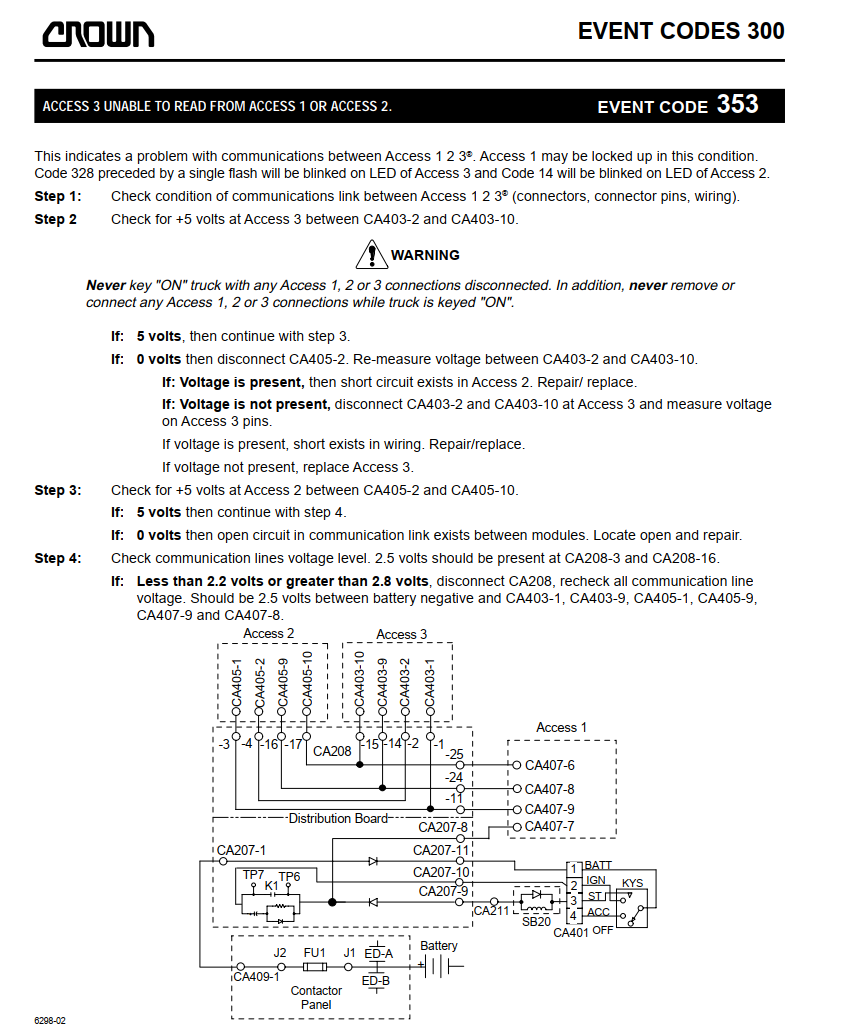

The CROWN RR5200 Series Reach Truck Forklift Service, Repair and Parts Manual is a comprehensive workshop resource designed for technicians, mechanics, and forklift owners responsible for maintaining and repairing Crown RR5200 electric reach trucks. This detailed manual includes complete service procedures, preventative maintenance schedules, electrical wiring diagrams, hydraulic system diagnostics, troubleshooting guides, component overhaul instructions, and a fully illustrated parts catalogue for accurate identification and replacement of genuine components. Covering essential systems such as drive motors, steering, braking, mast assembly, lift hydraulics, electronic controls, and Access 1 2 3 diagnostic systems, this manual provides step-by-step instructions to simplify repairs and reduce equipment downtime. Whether performing routine maintenance or major repairs, the CROWN RR5200 Series Service, Repair and Parts Manual is an indispensable reference for ensuring safe operation, maximum performance, and long service life of your Crown reach truck.
