CROWN RR5200S SERIES PALLET TRUCK FORKLIFT SERVICE, REPAIR AND PARTS MANUAL

CROWN RR5200S SERIES PALLET TRUCK FORKLIFT SERVICE, REPAIR AND PARTS MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 2,457
FILE SIZE: 135MB

MODEL COVERED:

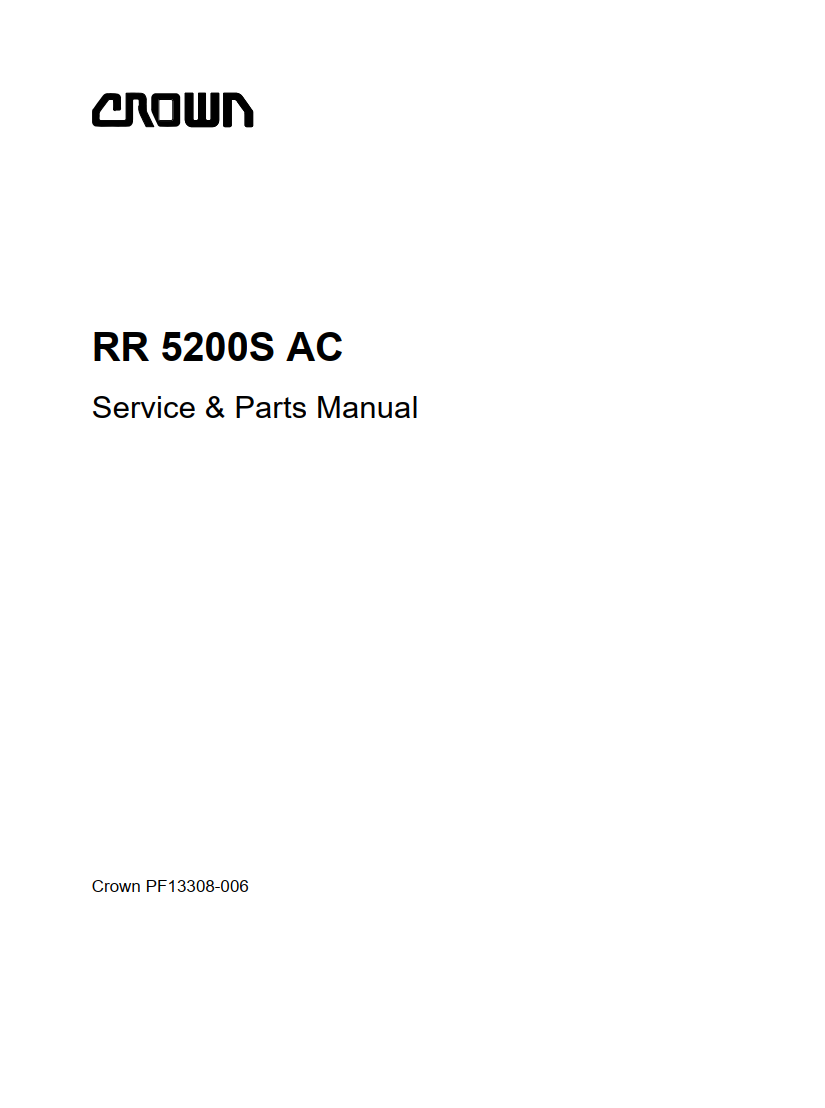

CROWN RR5200S AC

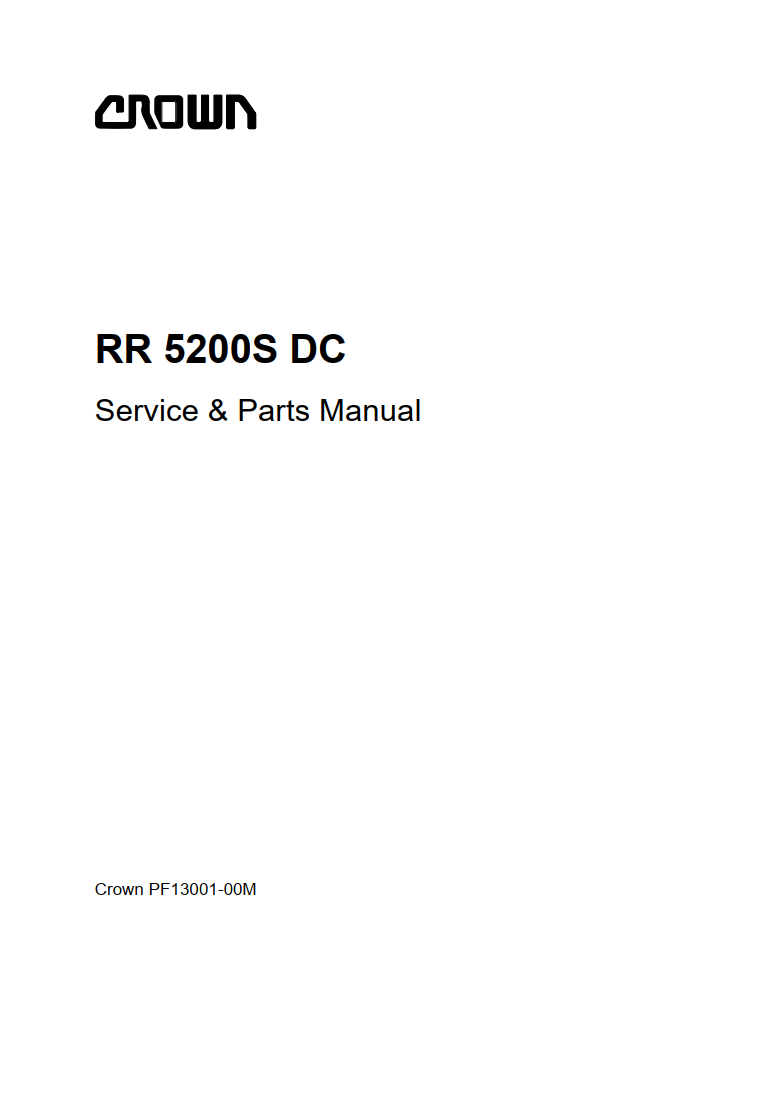

CROWN RR5200S DC

PART NO:

PF13308-006

PF13001-00M

ISSUED:

2001


CONTENTS:

LUBRICATION AND ADJUSTMENT

HYDRAULIC MAINTENANCE

DRIVE UNIT MAINTENANCE

ELECTRICAL MAINTENANCE

BRAKE MAINTENANCE

STEERING MAINTENANCE

MAST MAINTENANCE

CYLINDER MAINTENANCE

REACH MECHANISM MAINTENANCE

GLOSSARY

WIRING DIAGRAMS

HYDRAULIC SCHEMATICS

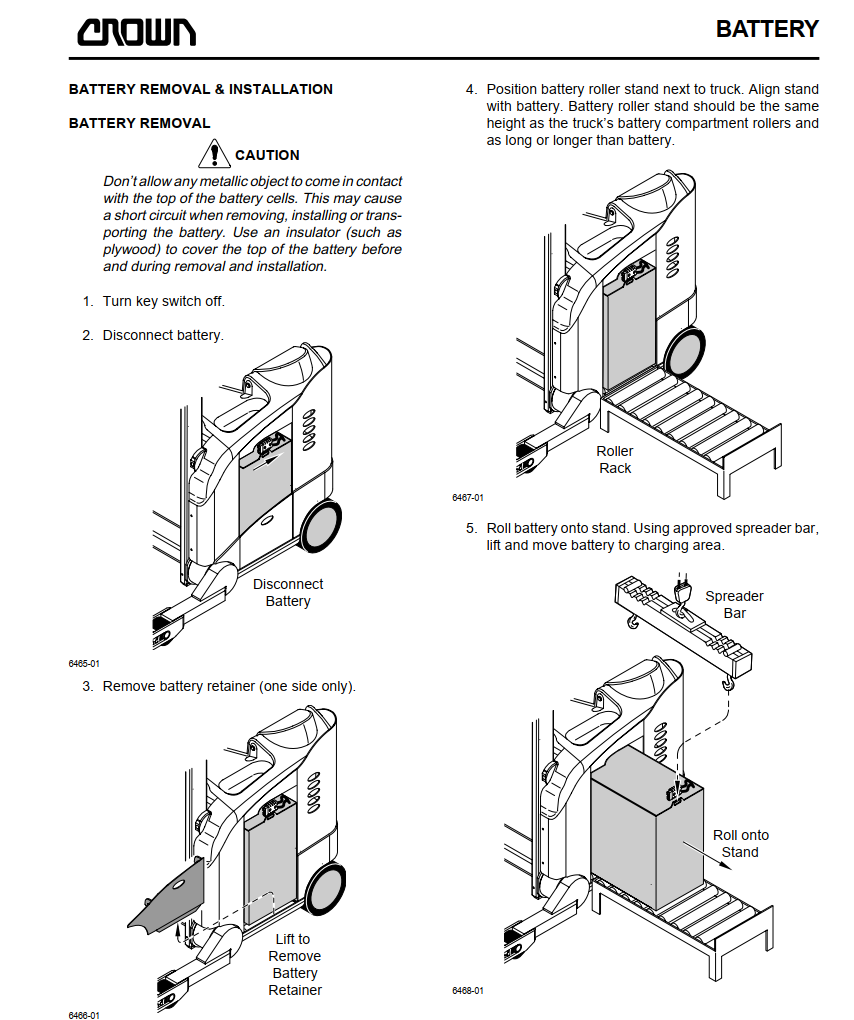

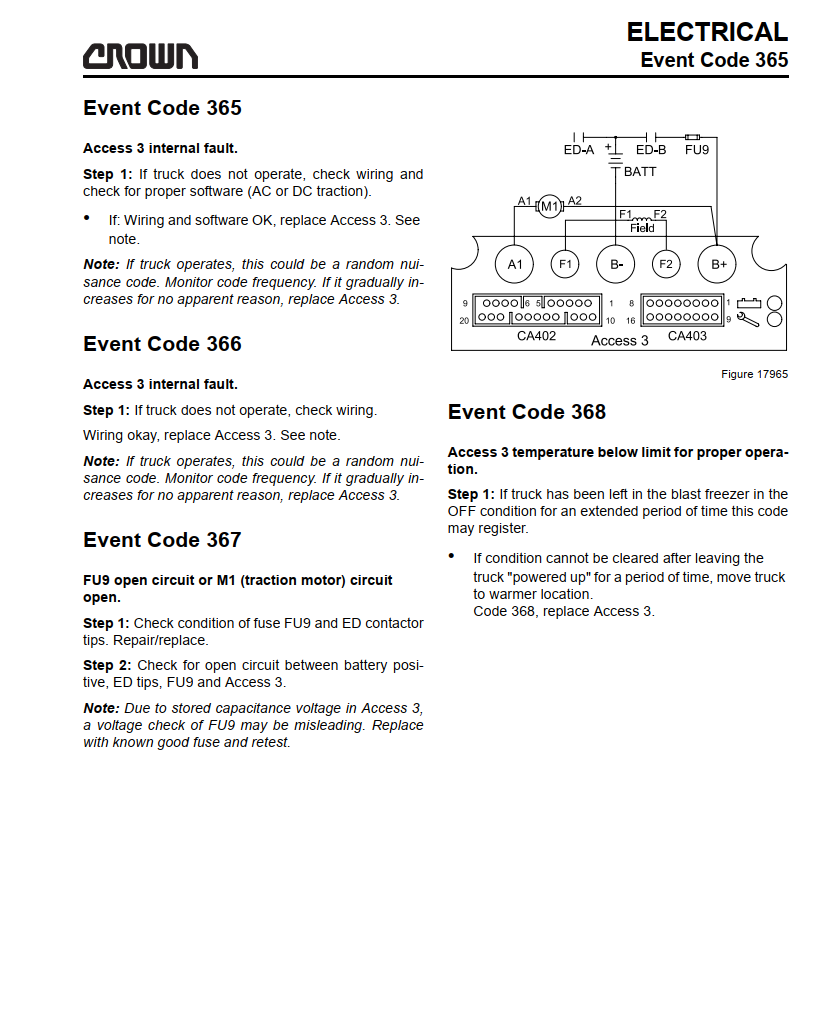

The CROWN RR5200S Series Pallet Truck Forklift Service, Repair and Parts Manual is an essential workshop reference for technicians, fleet managers, and forklift owners. This comprehensive manual provides detailed service procedures, preventive maintenance schedules, troubleshooting guides, hydraulic and electrical system diagnostics, wiring diagrams, component overhaul instructions, and an illustrated parts catalogue for the Crown RR5200S Series. Whether you're performing routine maintenance, diagnosing electrical faults, repairing the drive unit, servicing the hydraulic system, or ordering genuine replacement parts, this manual delivers accurate factory-level information to help minimise downtime, improve safety, and maintain peak forklift performance. Suitable for professional workshops and DIY mechanics alike, it offers step-by-step instructions and exploded-view illustrations for efficient repairs and long-term reliability.
