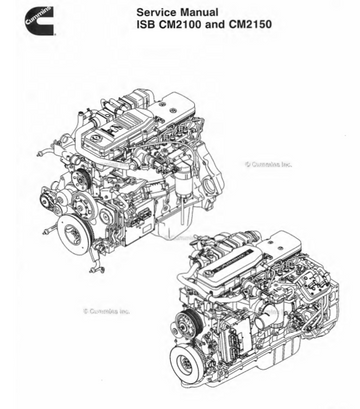

CUMMINS ISB 6.7 QSB 6.7 DIESEL ENGINE SERVICE REPAIR MANUAL

CUMMINS ISB 6.7 QSB 6.7 DIESEL ENGINE SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,567
FILE SIZE: 66.7MB

ENGINE SPECIFICATION:

Bore and Stroke : 1 07 mm [4.21 in] X 124 mm [4.88 in]

Displacement : 6. 7 liters [409 C.I.D.)

Firing Order : 1-5-3-6-2-4

Approximate Engine Dry Weight (with standard accessories): 519 kg [11441b]

Crankshaft Rotation (viewed from the front of the engine) : Clockwise

Valve Clearance:

Intake : 0.254 mm [0.01 0 in]

Exhaust : 0.660 mm [0.026 in]

Maximum Overspeed Capability (15 seconds maximum) : 4200 rpm

Minimum Ambient Air Temperature for Unaided Cold Start : -12.2°C [10°F]

Maximum Engine Cranking Speed : 150 rpm

Engine Idle Speed : Minimum 600 rpm to Maximum 1000 rpm

Altitude Limit : 3658 m [12,000 ft]


CONTENTS:

INTRODUCTION

ENGINE & SYSTEM IDENTIFICATION

FAMILIARIZATION

TROUBLESHOOTING SYMPTOMS

ENGINE DISASSEMBLY

ENGINE ASSEMBLY

COMPLETE ENGINE

CYLINDER BLOCK

CYLINDER HEAD

ROCKER LEVERS

CAM FOLLOWERS/TAPPETS

FUEL SYSTEM

INJECTORS & FUEL LINES

LUBRICATING OIL SYSTEM

COOLING SYSTEM

DRIVE UNITS

AIR INTAKE SYSTEM

EXHAUST SYSTEM

COMPRESSED AIR SYSTEM

ELECTRICAL EQUIPMENT

ENGING TESTING

MOUNTING ADAPTATIONS

MISCELLANEOUS

SERVICE LITERATURE

SPECIFICATIONS
