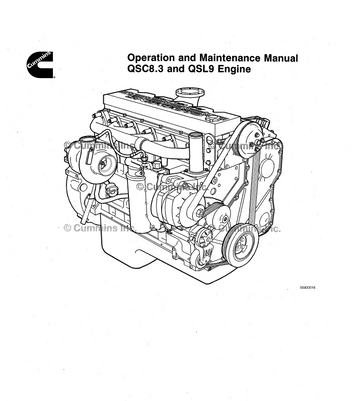

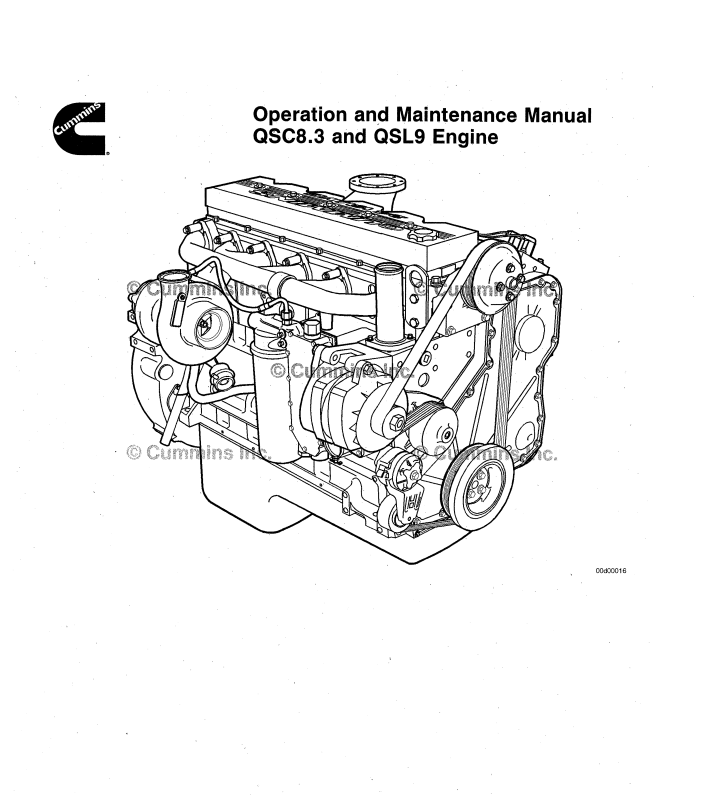

CUMMINS QSC 8.3 QSL 9 MARINE DIESEL ENGINE SERVICE REPAIR MANUAL
⚫ Instant Download
⚫ No Physical Shipping
Guarantee safe & secure checkout
CUMMINS QSC 8.3 QSL 9 MARINE DIESEL ENGINE SERVICE REPAIR MANUAL
CUMMINS QSC 8.3 QSL 9 MARINE DIESEL ENGINE SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 351
FILE SIZE: 29.3MB
|
ENGINE SPECIFICATION: |
|
QSC 8.3 QSL 9 |
|
Configuration: In-line 6-cylinder, 4-stroke diesel In-line 6-cylinder, 4-stroke diesel |
|
Aspiration: Turbocharged/After-cooled Turbocharged / After-cooled |
|
Displacement: 8.3 L (505 in3) 8.9 L (542 in3) |
|
Bore & Stroke: 114 mm x 135 mm (4.49 in x 5.31 in) 114 mm x 145 mm (4.49 in x 5.71 in) |
|
Rotation: Counter clockwise facing flywheel Counter clockwise facing flywheel |
|
Power:490 - 600 hp / 366 - 448 kW 285 - 405 hp / 213 - 303 kW |
|
Torque:1327 lb-ft / 1800 - 1800 N•m 983 - 1194 lb-ft / 1333 - 1619 N•m |
CONTENTS:
Introduction
Engine Identification
Industrial Features
Operating Instructions
Maintenance Guidelines
Maintenance Procedures at Daily Interval
Maintenance Procedures at 250 Hours or 3 Months
Maintenance Procedures at 500 Hours or 6 Months
Maintenance Procedures at 1000 Hours or 1 Years
Maintenance Procedures at 2000 Hours or 2 Years
Maintenance Procedures at 5000 Hours or 4 years
Adjustment, Repair, and Replacement
System Diagrams
Service Literature
Component Manufactures
Service Assistance
Troubleshooting Symptoms
Maintenance Specifications
Warranty
