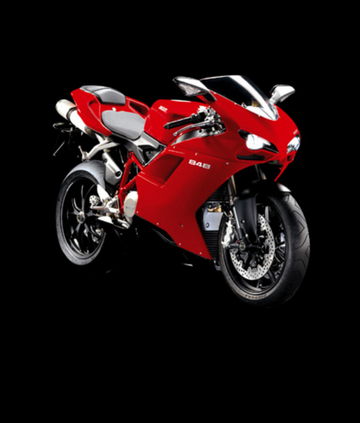

DUCATI 848 BIKE 2008-2012 WORKSHOP SERVICE REPAIR MANUAL

DUCATI 848 BIKE 2008-2012 WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 774
FILE SIZE: 83.6MB

BIKE TECHNICAL INFORMATION:

ENGINE:

Type Longitudinal 90º “L” twin cylinder, four stroke

Bore 94 mm

Stroke 61.2 mm

Displacement 849.4 cm³

Compression ratio 12±0.5:1

Technical specifications:

Timing system With toothed belt, double overhead camshaft,

4 valves per cylinder and 8 rocker arms

Lubrication system Forced lubrication by pump, with oil cooler

Oil pump type Gear pump

Cooling system Liquid cooling

Air filter Two filter units

Crankshaft type One-piece

CONTENTS:

GENERAL INFORMATION

INFO ABOUT THE MODEL

TECHNICAL DATA

USE AND MAINTENANCE

FAIRINGS

CONTROLS-DEVICES

WHEELS

SUSPENSION

BRAKES

FRAME

FUEL SYSTEM

EXHAUST SYSTEM

FINAL DRIVE

FUEL INJECTION

IGNITION SYSTEM

ENGINE REMOVAL AND INSTALLATION

LUBRICATION SYSTEM

COOLING SYSTEM

CYLINDER HEAD

GEARBOX

CRANKCASE

CLUTCH

ELECTRICAL SYSTEM/WIRING DIAGRAM
