DUCATI SUPERBIKE 1198 1198S BIKE WORKSHOP SERVICE REPAIR, PARTS MANUAL

DUCATI SUPERBIKE 1198 1198S BIKE WORKSHOP SERVICE REPAIR, PARTS MANUAL
LANGUAGE: ENGLISH
FORMAT: HTML (WINDOWS COMPUTER ONLY)
COMPATIBILITY: WINDOWS 7, 8, 10, 11
PAGES: UNKNOWN
FILE SIZE: 246MB

ENGINE COVERED:

Type.....Longitudinal 90º “L” twin cylinder, four-stroke

Bore.....106 mm

Stroke.....67.9 mm

Displacement.....1198.4 cm³

Compression ratio.....12.7±0.5:1

Timing system.....With toothed belt, double overhead camshaft, 4 valves per cylinder

CONTENTS:

DESCRIPTION

MODEL SPECIFIC INFORMATION

SPECIFICATION

MAINTENANCE

FAIRING

CONTROL-DEVICES

WHEEL SUSPENSION

BRAKES

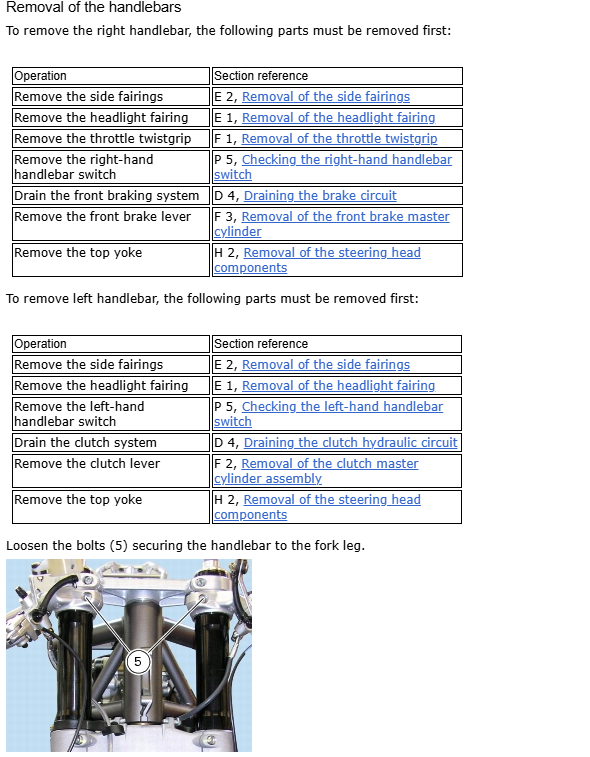

HANDLEBAR

STEERING

FRAME

FUEL SYSTEM

EXHAUST SYSTEM

IGNITION SYSTEM

INJECTION SYSTEM

ENGINE REMOVAL/INSTALLATION

LUBRICATION SYSTEM

CYLINDER/PISTON/CLUTCH

GEARBOX/CONNECTING RODS

ELECTRIC SYSTEM

WIRING DIAGRAM

PARTS CATALOG
