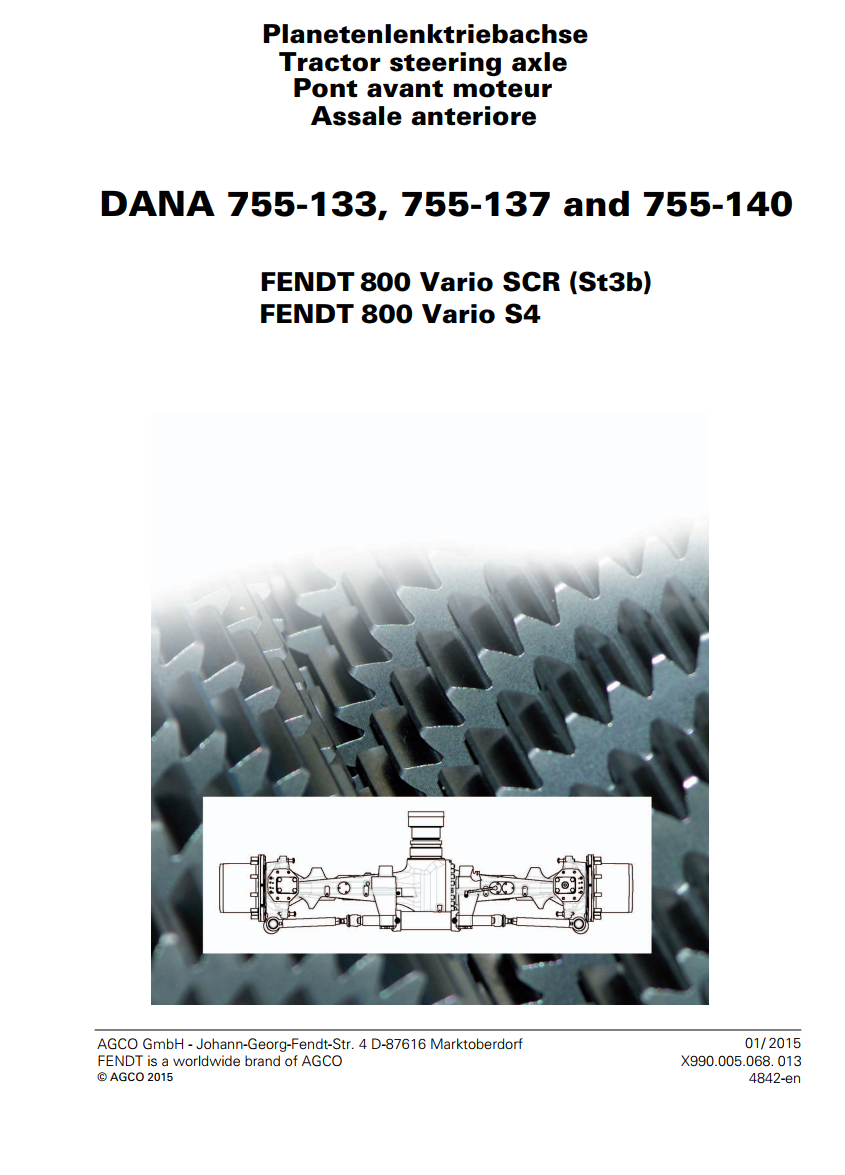

FENDT TRACTOR STEERING AXLE 800 VARIO S4, SCR (ST3B) DANA 755-133, 755-137, 755-140 SERVICE MANUAL

FENDT TRACTOR STEERING AXLE 800 VARIO S4, SCR (ST3B) DANA 755-133, 755-137, 755-140 SERVICE MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 84
FILE SIZE: 61.9MB

MODEL COVERED:

DANA 755-133, 755-137, 755-140

FENDT 819 VARIO SCR (ST3B) 832 .. 0101

FENDT 822 VARIO SCR (ST3B) 833 .. 0101

FENDT 824 VARIO SCR (ST3B) 834 .. 0101

FENDT 826 VARIO SCR (ST3B) 835 .. 0101

FENDT 828 VARIO SCR (ST3B) 836 .. 0101

FENDT 822 VARIO S4 839 .. 0101

FENDT 824 VARIO S4 840 .. 0101

FENDT 826 VARIO S4 841 .. 0101


CONTENTS:

INTRODUCTION

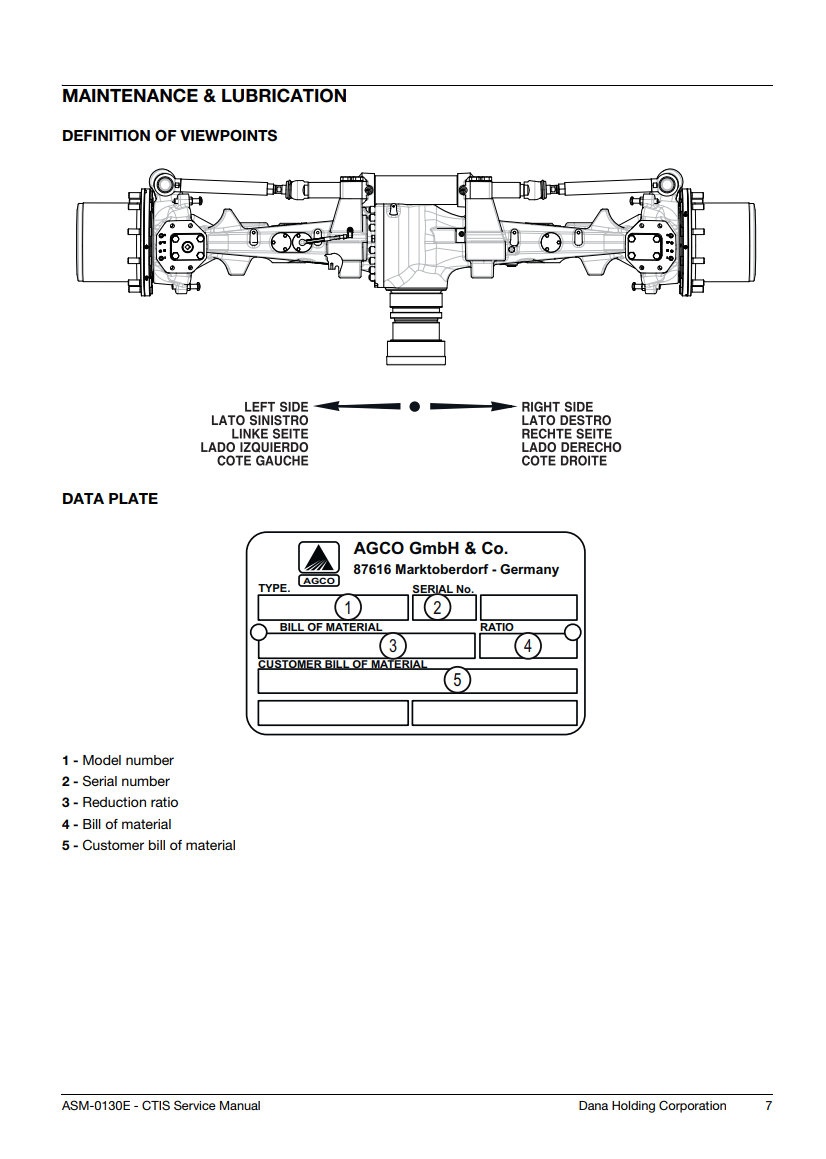

MAINTENANCE AND LUBRICATION

SAFETY PRECAUTIONS

STEERING SENSOR

PLANETARY REDUCTION GEAR

COMPLETE STEERING CASE

CENTRAL TIRE INFLATION SYSTEM

STEERING CYLINDER

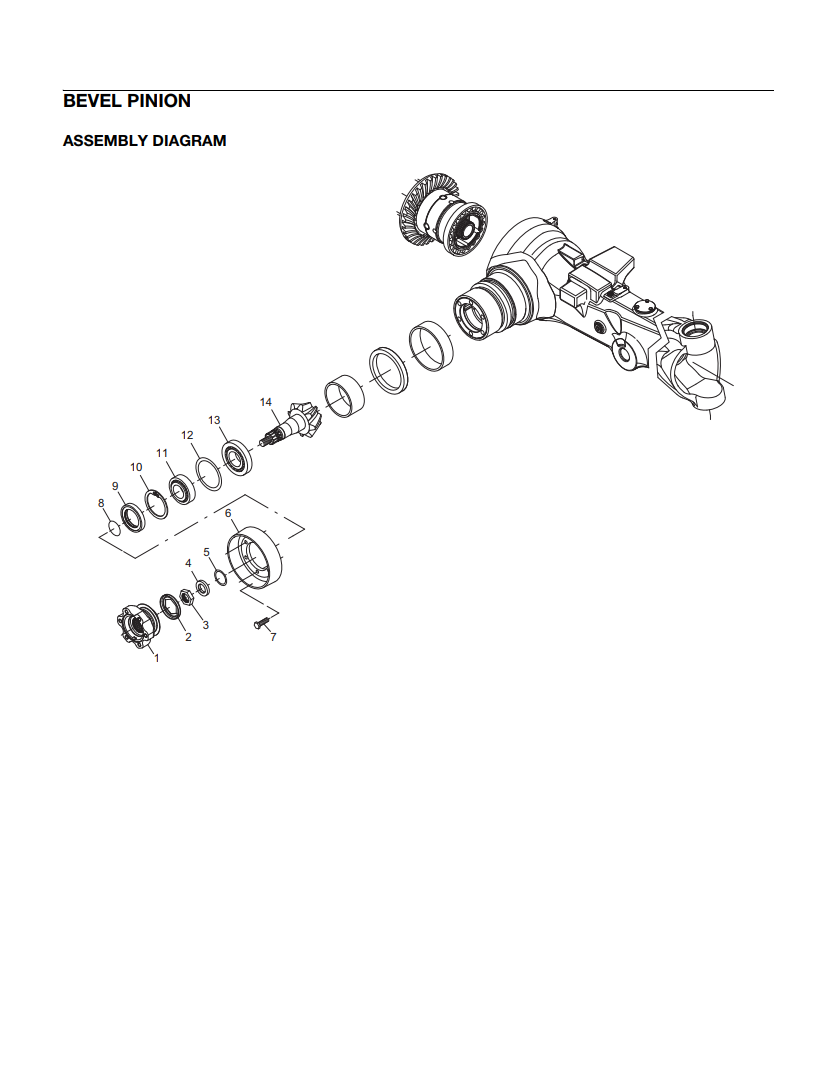

BEVEL PINION

DIFFERENTIAL UNIT

SPECIAL TOOLS
