FIAT KOBELCO SL45B SL55BH COMPACT LOADER WITH ACCESSORIES WORKSHOP SERVICE MANUAL

FIAT KOBELCO SL45B SL55BH COMPACT LOADER WITH ACCESSORIES WORKSHOP SERVICE MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 754
FILE SIZE: 15.5MB

MODEL COVERED:

COMPACT LOADER WITH ACCESSORIES

SL45B - SL55BH

PART NO:

604.06.923.01

ISSUED:

JULY, 2002


CONTENTS:

INDEX

SECTION 00 – GENERAL INFORMATION

SECTION 10 – ENGINE

SECTION 27 – REAR DRIVE AXLE (GEARBOXES)

SECTION 29 - HYDROSTATIC TRANSMISSION

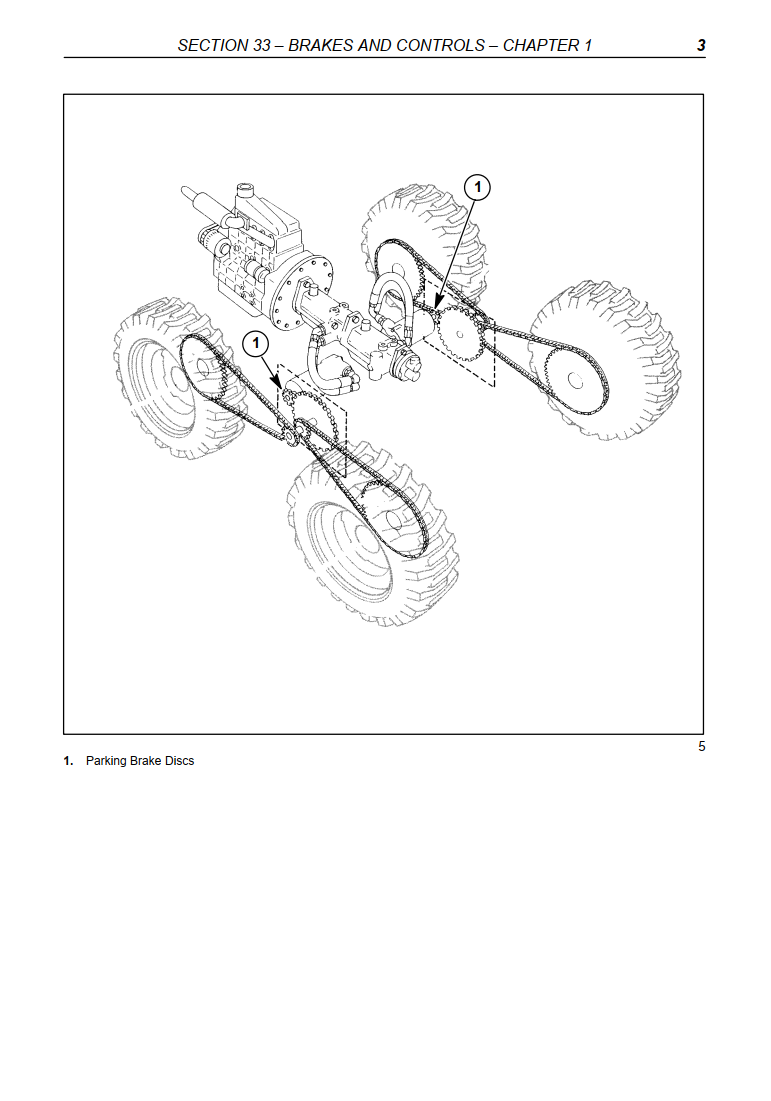

SECTION 33 – BRAKES AND CONTROLS

SECTION 35 - HYDRAULIC SYSTEM

SECTION 37 – TOWING HOOKS AND BALLASTING

SECTION 39 – FRAMES

SECTION 44 – AXLES AND WHEELS Chapter 1 – Axles

SECTION 50 – CAB CLIMATE CONTROL

SECTION 55 – ELECTRICAL SYSTEM

SECTION 82 – FRONT LOADER (BOOM AND MOUNTING PLATE)

SECTION 88 – ACCESSORIES

SECTION 90 – PLATFORM, CAB, BODYWORK, AND DECALS

The Fiat Kobelco SL45B and SL55BH Compact Loader Workshop Manual provides comprehensive technical guidance for maintenance, diagnostics, and repairs. Covering both models, this manual includes detailed procedures for the engine, hydraulic systems, hydrostatic pumps, troubleshooting, and component disassembly for accessories, ensuring safe and optimal performance.
