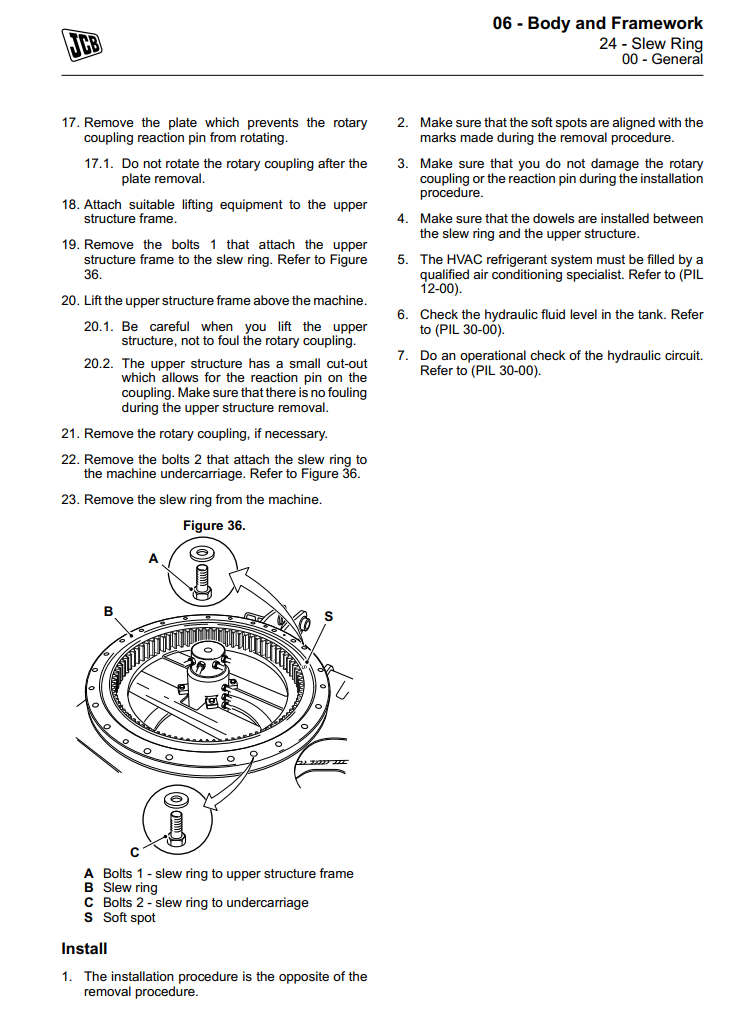

JCB 8026 CTS, JCB 30 PLUS COMPACT EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL

JCB 8026 CTS, JCB 30 PLUS COMPACT EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 914
FILE SIZE: 35.5MB

MODEL COVERED:

JCB 8026 CTS, JCB 30 PLUS COMPACT EXCAVATOR

JCB 30PLUS FROM 2491671

8026 CTS

PUB NO: 9813/7850 - ISSUE 2

JUNE, 2017

VOL.1, VOL.2, VOL.3 & VOL.4


CONTENTS:

01 - MACHINE

03 - ATTACHMENTS, COUPLINGS AND LOAD HANDLING

06 - BODY AND FRAMEWORK

09 - OPERATOR STATION

15 - ENGINE

18 - FUEL AND EXHAUST SYSTEM

21 - COOLING SYSTEM

27 - DRIVELINE

30 - HYDRAULIC SYSTEM

33 - ELECTRICAL SYSTEM

72 - FASTENERS AND FIXINGS

75 - CONSUMABLE PRODUCTS

78 - AFTER SALES

NB: The bookmark or hyperlink provided in this manual is non-functional. You are required to either scroll through the manual or utilize the search feature to locate the relevant keywords.
