JCB JS115 JS130 JS145 TIER III AUTO TRACKED EXCAVATOR SERVICE REPAIR MANUAL

JCB JS115 JS130 JS145 TIER III AUTO TRACKED EXCAVATOR SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 556
FILE SIZE: 50.6MB

MODEL COVERED:

JCB JS115 JS130 JS145 TIER III AUTO

JCB JS115 FROM SERIAL NUMBER 1703500 TO 1703599.

JCB JS115 FROM SERIAL NUMBER 1777500 TO 1777999.

JCB JS130 FROM SERIAL NUMBER 1535000 TO 1535999.

JCB JS145 FROM SERIAL NUMBER 1600011 TO 1600999.

ENGINE:

A1-4JJ1X-TIER III

ISUZU A1-4JJ1X 4-CYCLE, WATER COOLED TYPE, INLINE 4 CYLINDER DOHC

PUB NO: 9803/9860-5


CONTENTS:

SECTION 1 - GENERAL INFORMATION

SECTION 2 - CARE & SAFETY

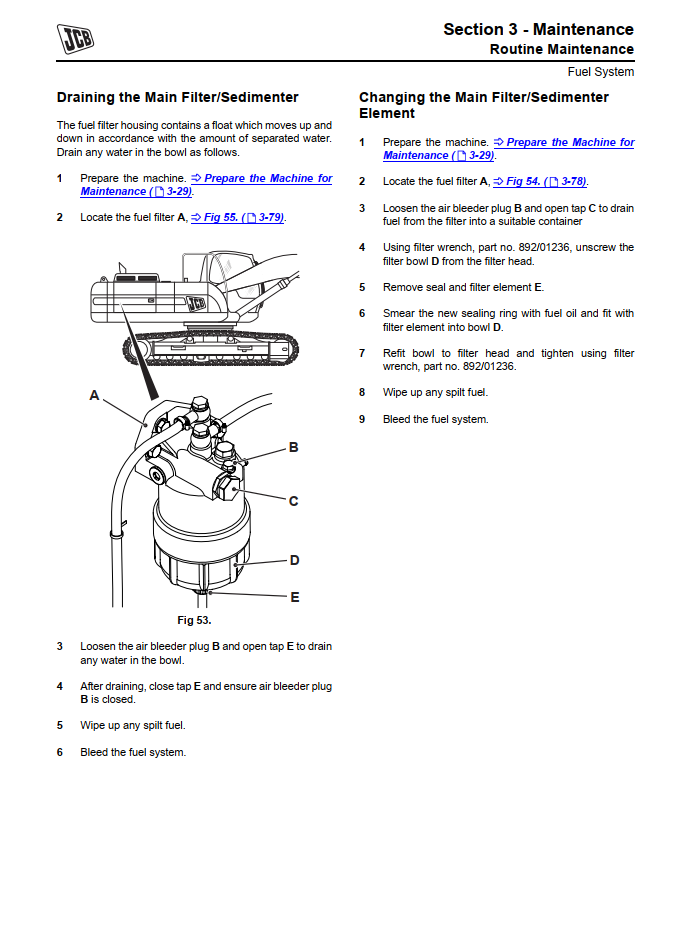

SECTION 3 - MAINTENANCE

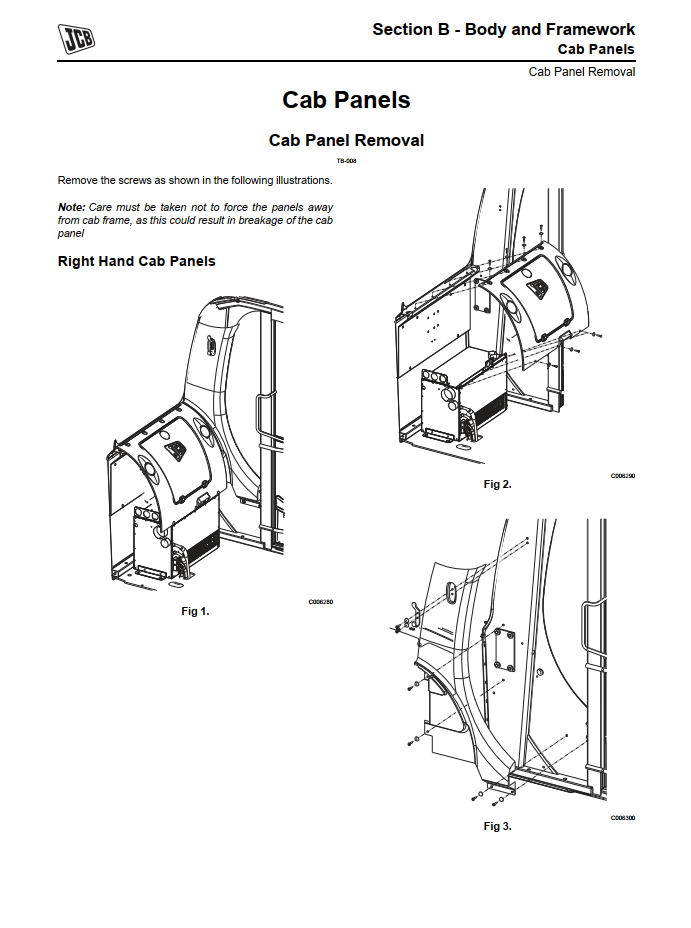

SECTION B - BODY & FRAMEWORK

SECTION C - ELECTRICS

SECTION E - HYDRAULICS

SECTION F - TRANSMISSION

SECTION J - TRACK & RUNNING GEAR

SECTION K - ENGINE

NB: The bookmark or hyperlink provided in this manual is non-functional. You are required to either scroll through the manual or utilize the search feature to locate the relevant keywords.
