JCB JS120 JS 120 TRACKED EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL

JCB JS120 JS 120 TRACKED EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 647
FILE SIZE: 55.1MB

MODEL COVERED:

JCB JS120 TRACKED EXCAVATOR

– JCB JS120 FROM SERIAL NUMBER 1777500 TO 1777999 ONWARDS

– JCB JS120 UPGRADE FROM SERIAL NUMBER 02425471 TO 02426000

ENGINE:

JCB ECOMAX 444

WATER-COOLED, 4 STROKE, 4 CYLINDER IN-LINE DIRECT INJECTION

PUB NO: 9813/1300-02


CONTENTS:

SECTION 1 - GENERAL INFORMATION

SECTION 2 - OPERATOR’S MANUAL

SECTION B - BODY AND FRAMEWORK

SECTION F - TRANSMISSIONS

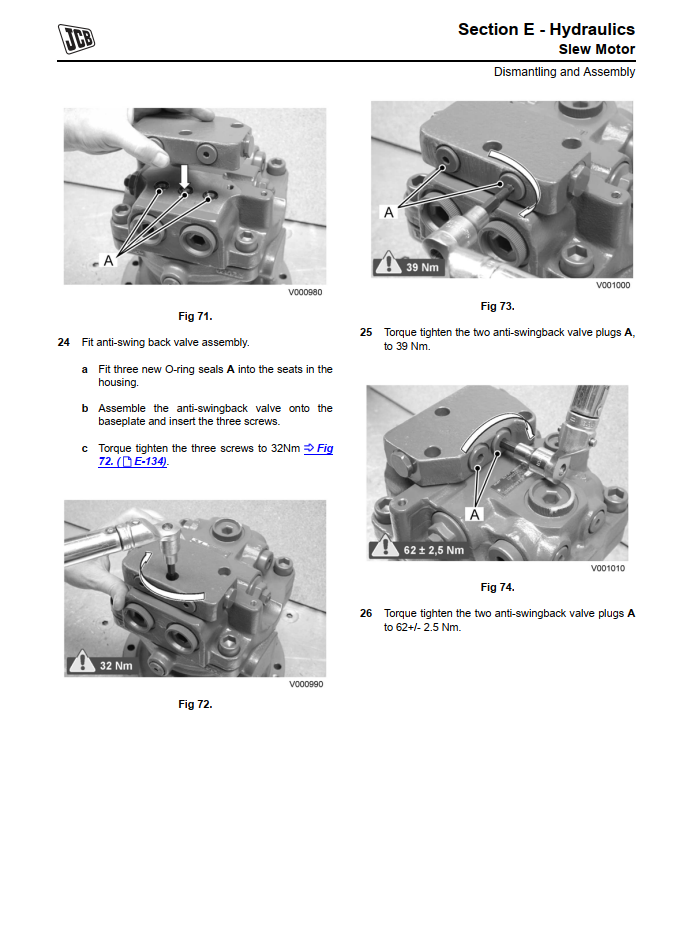

SECTION E - HYDRAULICS

SECTION F - TRANSMISSIONS

SECTION J - TRACK AND RUNNING GEAR

SECTION K - ENGINE

NB: The bookmark or hyperlink provided in this manual is non-functional. You are required to either scroll through the manual or utilize the search feature to locate the relevant keywords.
