JCB JS200 JS210 JS220 JS240 JS260 TRACKED EXCAVATOR SERVICE REPAIR MANUAL

JCB JS200 JS210 JS220 JS240 JS260 TRACKED EXCAVATOR SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,354
FILE SIZE: 77.4MB

MODEL COVERED:

JCB JS200 JS210 JS220 JS240 JS260

JS200

FROM MACHINE NO. 705001

JS210

FROM MACHINE NO. 705648

JS220

FROM MACHINE NO. 705001

JS240

FROM MACHINE NO. 708001

JS260

FROM MACHINE NO. 708501

ENGINE:

- JS200 A-6BG1TQB-04

- JS210 A-6BG1TQB-04

- JS220 A-6BG1TQB-04

- JS240 A-6BG1TQB-05

- JS260 A-6BG1TQB-05

JS200, JS210, JS220 - BB-6BG1TRB-06

JS240, JS260 - BB-6BG1TRB-06

PUB:

9803/6400

9803/6510-03


CONTENTS:

SECTION 1 - GENERAL INFORMATION

SECTION 2 - CARE AND SAFETY

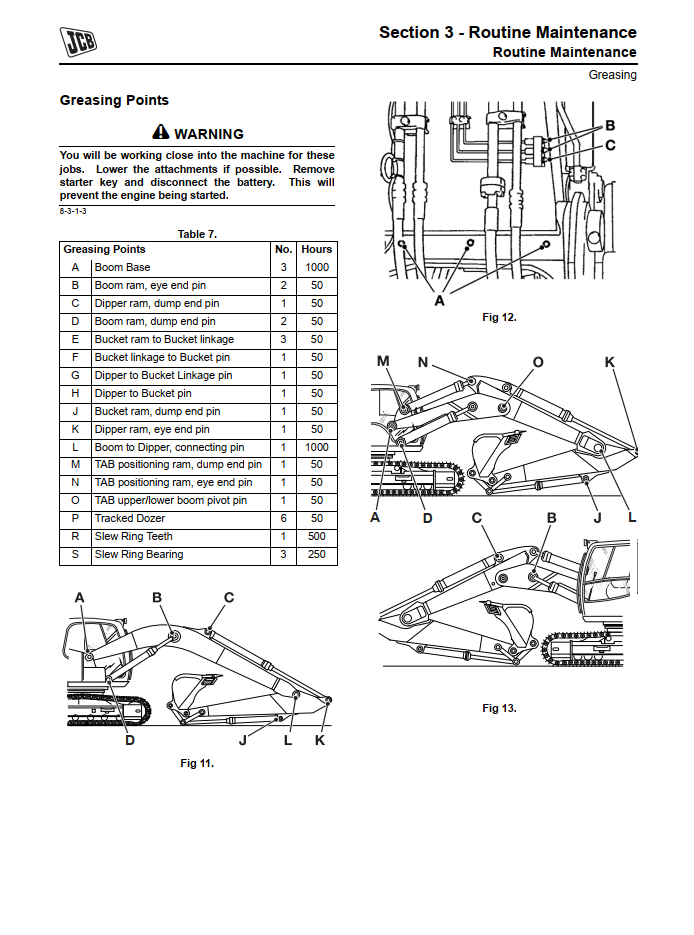

SECTION 3 - ROUTINE MAINTENANCE

SECTION B - BODY & FRAMEWORK

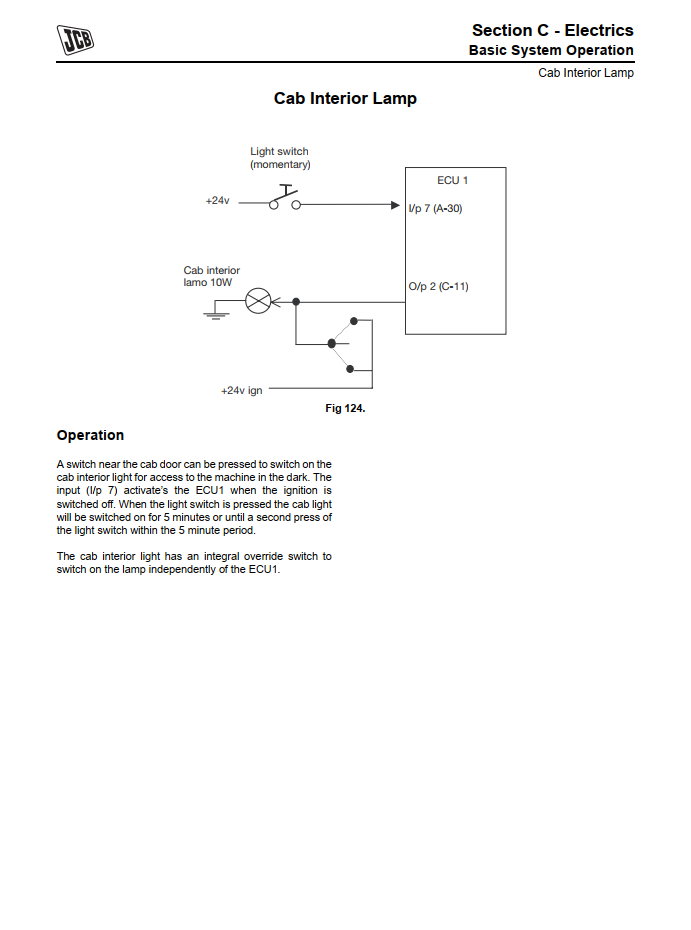

SECTION C - ELECTRICS

SECTION E - HYDRAULICS

SECTION F - TRANSMISSION

SECTION J - TRACK AND RUNNING GEAR

SECTION K - ENGINE

NB: The bookmark or hyperlink provided in this manual is non-functional. You are required to either scroll through the manual or utilize the search feature to locate the relevant keywords.
