JCB JS200 - JS260 TIER III AUTO TRACKED EXCAVATOR WORKSHOP SERVICE MANUAL

JCB JS200 - JS260 TIER III AUTO TRACKED EXCAVATOR WORKSHOP SERVICE MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 885
FILE SIZE: 76.3MB

MODEL COVERED:

JCB JS200 - JS260 TIER III AUTO

JCB JS200-220 FROM SERIAL NUMBER 1610000 TO 1612499 AND 1459000 TO 1461999.

JCB JS235 FROM SERIAL NUMBER 1314000 TO 1314099

JCB JS240-260 FROM SERIAL NUMBER 1504700 TO 1505099.

JCB JS240 - JS260 FROM SERIAL NUMBER 1773500 TO 1774499

ENGINE:

4HK1X-TIER III

ISUZU 4HK1 4-CYCLE/WATER COOLED TYPE, INLINE 4 CYLINDER OHC

PUB: 9803/6580-7


CONTENTS:

SECTION 1 - GENERAL INFORMATION

SECTION 2 - CARE AND SAFETY

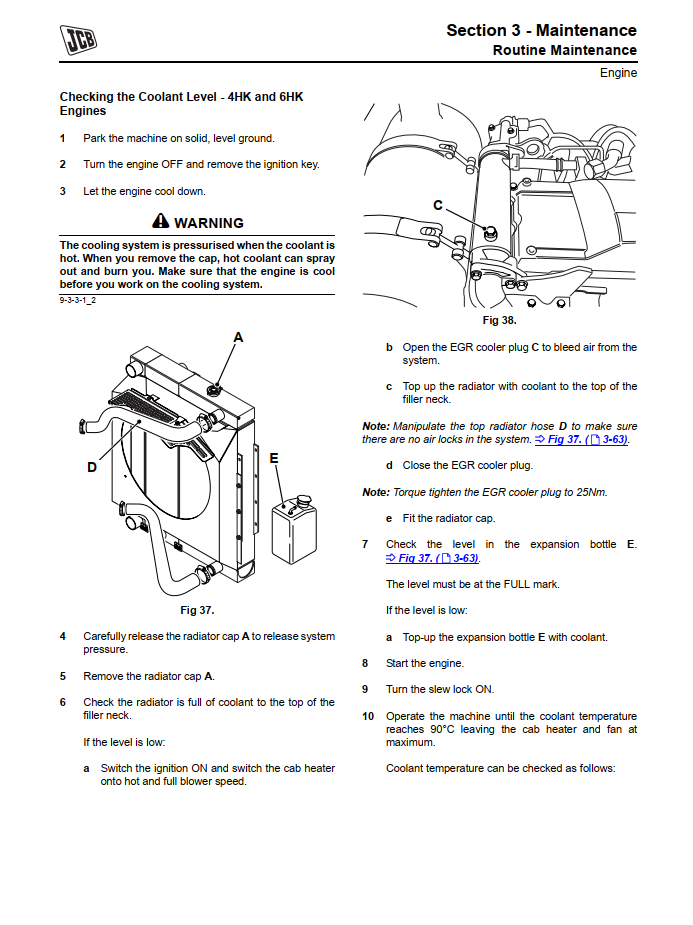

SECTION 3 - MAINTENANCE

SECTION B - BODY & FRAMEWORK

SECTION C - ELECTRICS

SECTION E - HYDRAULICS

SECTION F - TRANSMISSION

SECTION J - TRACK AND RUNNING GEAR

SECTION K - ENGINE

NB: The bookmark or hyperlink provided in this manual is non-functional. You are required to either scroll through the manual or utilize the search feature to locate the relevant keywords.
