JCB JS200W TIER III WHEELED EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL

JCB JS200W TIER III WHEELED EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 557
FILE SIZE: 50.5MB

MODEL COVERED:

JCB JS200W TIER III

– JCB JS200W TIER III SERIAL NO. 1314600 TO 1314699

– JCB JS200W TIER III SERIAL NO. 1542000 TO 1542499

ENGINE:

4HK1X-TIER III

ISUZU 4HK1 4-CYCLE/WATER COOLED TYPE, IN-LINE 4 CYLINDER OHC

PUB NO: 9803/9540-6


CONTENTS:

SECTION 1 - GENERAL INFORMATION

SECTION 2 - CARE AND SAFETY

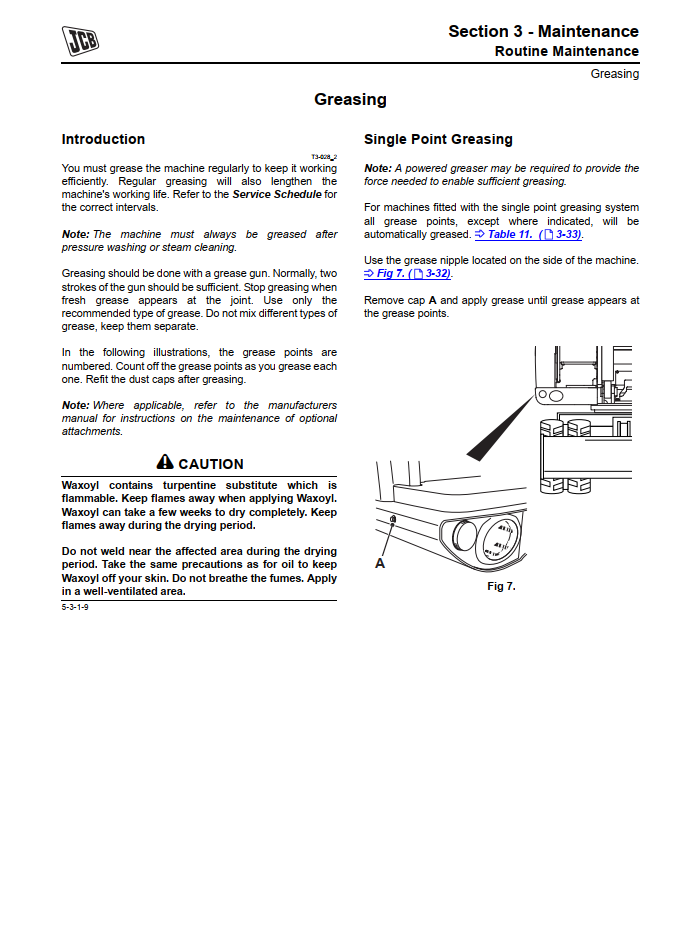

SECTION 3 - MAINTENANCE

SECTION B - BODY & FRAMEWORK

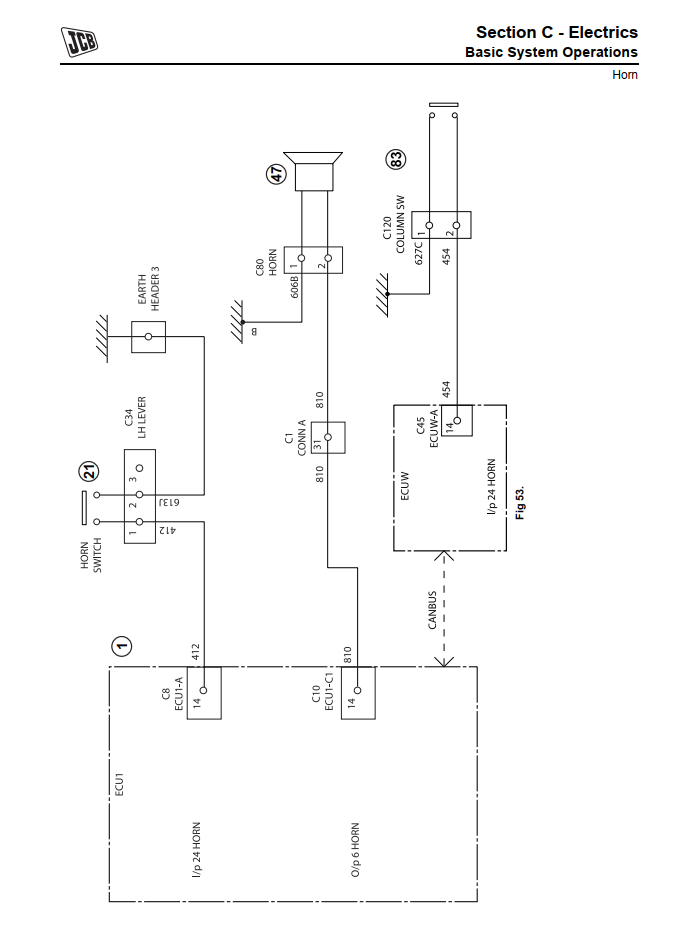

SECTION C - ELECTRICS

SECTION E - HYDRAULICS

SECTION F - TRANSMISSION

SECTION K - ENGINE

NB: The bookmark or hyperlink provided in this manual is non-functional. You are required to either scroll through the manual or utilize the search feature to locate the relevant keywords.
