JCB JS210 JS230 TRACKED EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL

JCB JS210 JS230 TRACKED EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,560
FILE SIZE: 127MB

MODEL COVERED:

JCB JS210 LC

110026 ON

PUB: 9813/8000 - ISSUE 1

OCTOBER, 2016

VOL.1, VOL.2, VOL.3 & VOL.4


CONTENTS:

01 - MACHINE

03 - ATTACHMENTS, COUPLINGS AND LOAD HANDLING

06 - BODY AND FRAMEWORK

09 - OPERATOR STATION

12 - HEATING, VENTILATING AND AIR-CONDITIONING (HVAC)

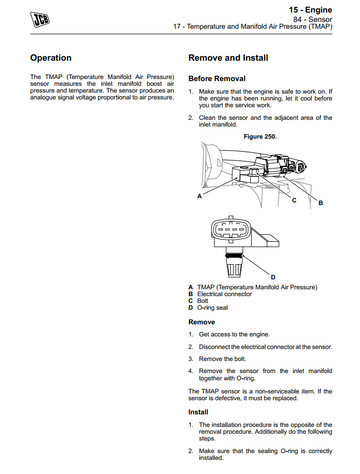

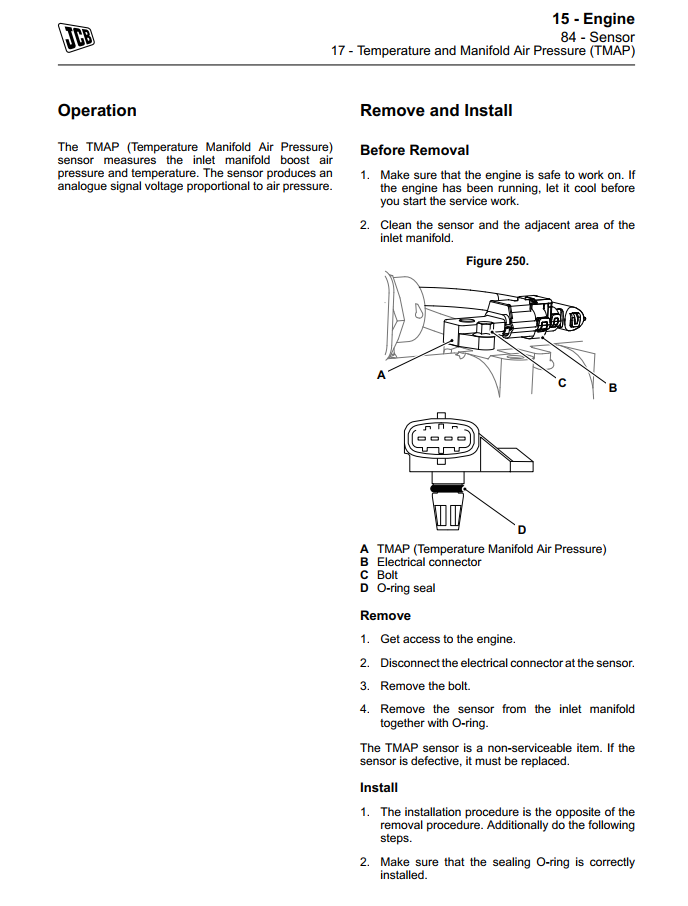

15 - ENGINE

18 - FUEL AND EXHAUST SYSTEM

21 - COOLING SYSTEM

27 - DRIVELINE

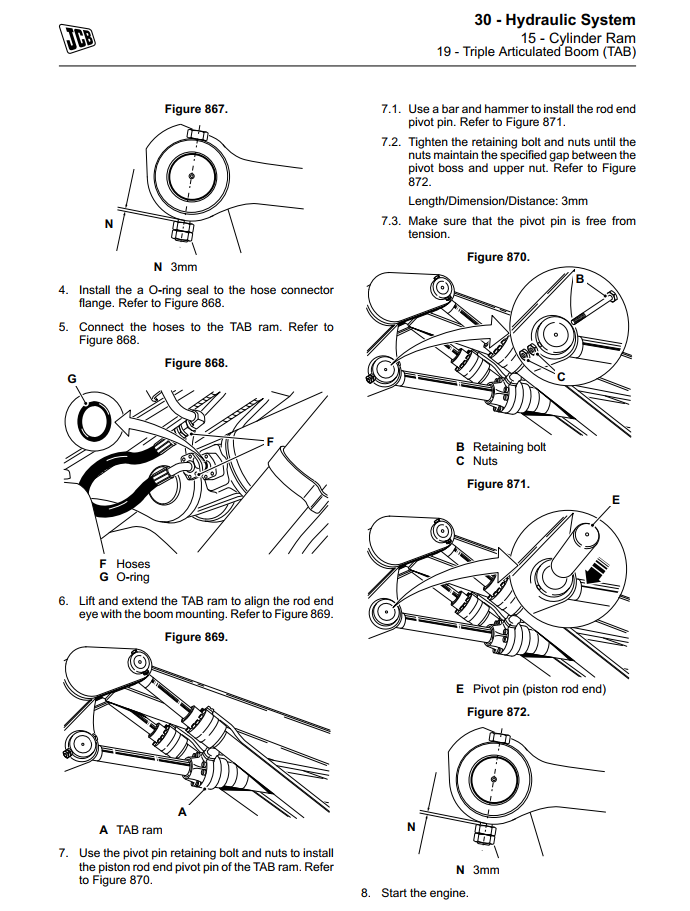

30 - HYDRAULIC SYSTEM

33 - ELECTRICAL SYSTEM

72 - FASTENERS AND FIXINGS

75 - CONSUMABLE PRODUCTS

78 - AFTER SALES

NB: The bookmark or hyperlink provided in this manual is non-functional. You are required to either scroll through the manual or utilize the search feature to locate the relevant keywords.
