JCB JS300 JS330 JS370 TRACKED EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL

JCB JS300 JS330 JS370 TRACKED EXCAVATOR WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,444
FILE SIZE: 88.2MB

MODEL COVERED:

JCB JS300 JS330 JS370 TRACKED EXCAVATOR

JS300 FROM 2491541

JS330 FROM 2491581

JS370 FROM 2491607

ENGINE:

935.911

IN-LINE ENGINE WITH EGR (EXHAUST GAS RECIRCULATION) AND CHARGE-AIR PRESSURE CONTROL

6 CYLINDERS - 4-STROKE DIRECT INJECTION DIESEL

PUB: 9813/7500 - ISSUE 2

OCTOBER, 2017

VOL.1, VOL.2, VOL.3 & VOL.4


CONTENTS:

01 - MACHINE

03 - ATTACHMENTS, COUPLINGS AND LOAD HANDLING

06 - BODY AND FRAMEWORK

09 - OPERATOR STATION

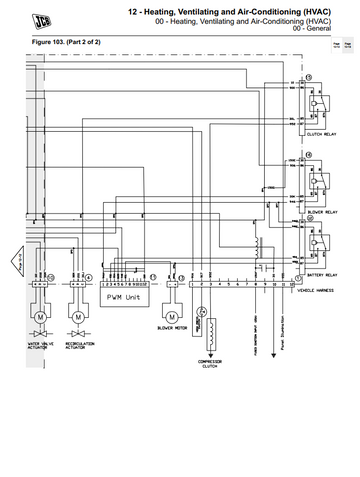

12 - HEATING, VENTILATING AND AIR-CONDITIONING (HVAC)

15 - ENGINE

18 - FUEL AND EXHAUST SYSTEM

21 - COOLING SYSTEM

27 - DRIVELINE

30 - HYDRAULIC SYSTEM

33 - ELECTRICAL SYSTEM

72 - FASTENERS AND FIXINGS

75 - CONSUMABLE PRODUCTS

78 - AFTER SALES

NB: The bookmark or hyperlink provided in this manual is non-functional. You are required to either scroll through the manual or utilize the search feature to locate the relevant keywords.
