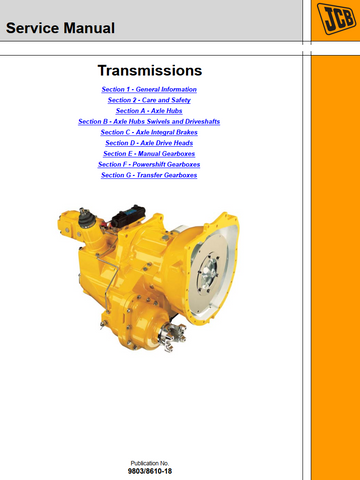

JCB TRANSMISSIONS FACTORY WORKSHOP SERVICE REPAIR MANUAL

JCB TRANSMISSIONS FACTORY WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 2,546
FILE SIZE: 194MB

MODEL COVERED:

JCB TRANSMISSIONS

PUB NO:

9803/8610-18

9813/4750 - ISSUE 2

DECEMBER, 2017


CONTENTS:

SECTION 1 - GENERAL INFORMATION

SECTION 2 - CARE AND SAFETY

SECTION A - AXLE HUBS

SECTION B - AXLE HUBS SWIVELS AND DRIVESHAFTS

SECTION C - AXLE INTEGRAL BRAKES

SECTION D - AXLE DRIVE HEADS

SECTION E - MANUAL GEARBOXES

SECTION F - POWERSHIFT GEARBOXES

SECTION G - TRANSFER GEARBOXES

NB: The bookmark or hyperlink provided in this manual is non-functional. You are required to either scroll through the manual or utilize the search feature to locate the relevant keywords.
