JCB VMT160 VMT260 TIER 2 AND 4 ROLLER WORKSHOP SERVICE REPAIR MANUAL

JCB VMT160 VMT260 TIER 2 AND 4 ROLLER WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 319
FILE SIZE: 22.4MB

MODEL COVERED:

VMT160 VMT260 TIER 2 AND TIER 4

– VMT 160-90 FROM SERIAL NO. 1700515 TO 1701469 AND 2802000 TO 2804999

– VMT 260-100 FROM SERIAL NO. 1700515 TO 1701469 AND 2802000 TO 2804999

– VMT 260-120 FROM SERIAL NO. 1700515 TO 1701469 AND 2802000 TO 2804999

ENGINE:

VMT 160 - D1005

VMT 260 - D1503, D1703

PUB NO: 9803/9530-6


CONTENTS:

SECTION 1 - GENERAL INFORMATION

SECTION 2 - CARE AND SAFETY

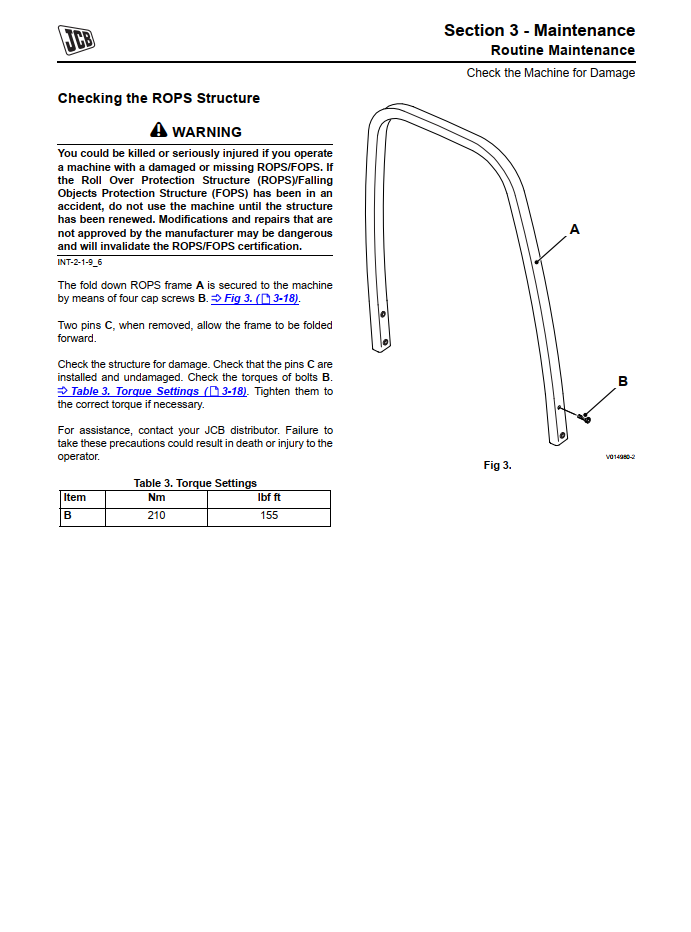

SECTION 3 - MAINTENANCE

SECTION C - ELECTRICS

SECTION E - HYDRAULICS

SECTION H - STEERING

SECTION K - ENGINE

SECTION L - VIBRATION

NB: The bookmark or hyperlink provided in this manual is non-functional. You are required to either scroll through the manual or utilize the search feature to locate the relevant keywords.
