JCB WLS 430ZX PLUS WHEEL LOADER SHOVEL WORKSHOP SERVICE REPAIR MANUAL

JCB WLS 430ZX PLUS WHEEL LOADER SHOVEL WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 575
FILE SIZE: 48.2MB

MODEL COVERED:

JCB WLS 430ZX PLUS WHEEL LOADER SHOVEL

– 430ZX (JCB ENGINE) FROM 1767600 TO 1768499

– 430ZX (ASHOK LEYLAND ENGINE) FROM 2054250 TO 2054524

– 430ZXPLUS (ASHOK LEYLAND H-SERIES ENGINE) FROM

2054525 TO 2056249

ENGINE:

430ZX PLUS WITH AL H SERIES ENGINE

H6ETIC3RU - TURBOCHARGED - 5.76 LITRES

PUB NO: 9813/4650-02


CONTENTS:

SECTION 1 - GENERAL INFORMATION

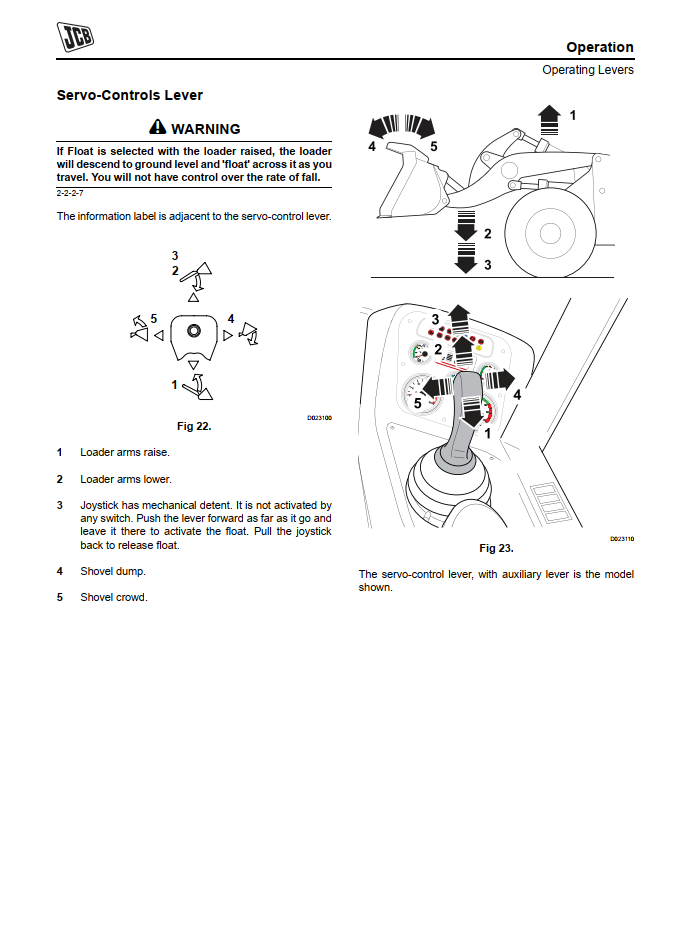

SECTION 2 - OPERATOR’S MANUAL

SECTION B - BODY AND FRAMEWORK

SECTION C - ELECTRICS

SECTION E - HYDRAULICS

SECTION F - TRANSMISSION

SECTION G - BRAKES

SECTION H - STEERING

SECTION K - ENGINE

NB: The bookmark or hyperlink provided in this manual is non-functional. You are required to either scroll through the manual or utilize the search feature to locate the relevant keywords.
