KAWASAKI NINJA 650R ABS 2005-2010 BIKE WORKSHOP REPAIR SERVICE MANUAL

KAWASAKI NINJA 650R ABS 2005-2010 BIKE WORKSHOP REPAIR SERVICE MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,463
FILE SIZE: 35.8MB

ENGINE SPECIFICATION:

Engine Type...4-stroke, DOHC, 2-cylinder

Cooling System...Liquid-cooled

Bore and Stroke...83 × 60 mm (3.3 × 2.4 in.)

Displacement...649 cm³ (39.60 cu in.)

Compression Ratio 11.3 : 1

Carburetion System...FI (Fuel Injection) KEIHIN TTK38 × 2

Starting System...Electric starter

Ignition System...Battery and coil (transistorized)

Timing Advance...Electronically advanced (digital igniter)


CONTENTS:

GENERAL INFORMATION

MAINTENANCE

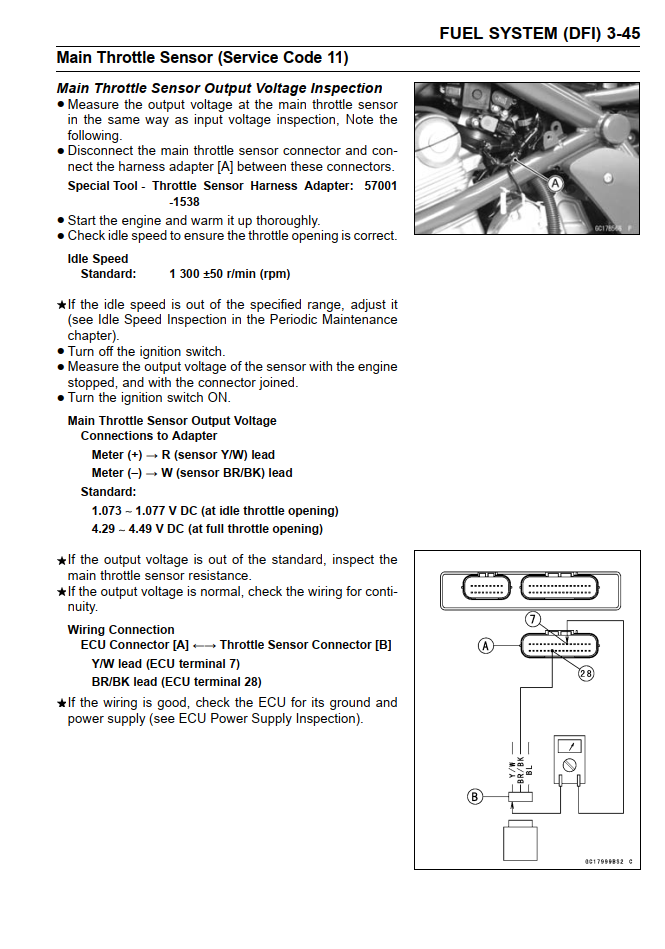

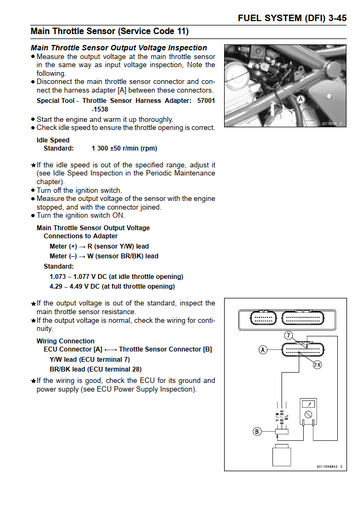

FUEL SYSTEM

COOLING SYSTEM

ENGINE TOP END

CLUTCH

LUBRICATION SYSTEM

ENGINE REMOVAL/INSTALLATION

CRANKSHAFT/TRANSMISSION

WHEELS/TIRES

FINAL DRIVE

BRAKES

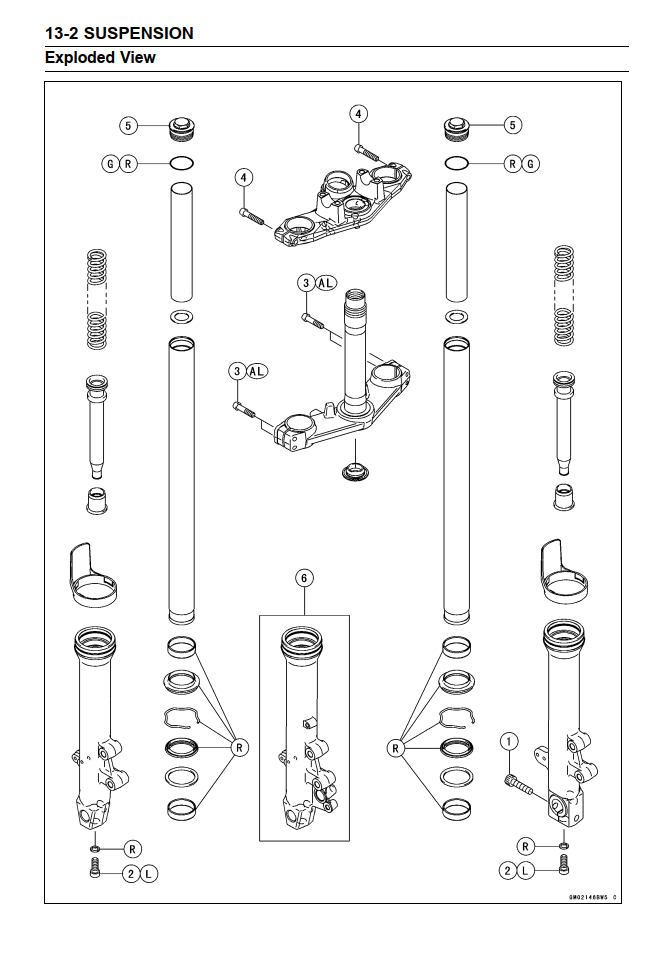

SUSPENSION

STEERING

FRAME

ELECTRICAL SYSTEM

PARTS DIAGRAM
