KOBELCO 27SR ACERA TIER 4 COMPACT CRAWLER EXCAVATOR SERVICE REPAIR MANUAL

KOBELCO 27SR ACERA TIER 4 COMPACT CRAWLER EXCAVATOR SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 841
FILE SIZE: 53.3MB

MODEL COVERED:

27SR ACERA TIER 4

PART NO:

S5PV0018E01 NA

ISSUED:

SEPTEMBER, 2008

FIRST EDITION


CONTENTS:

SAFETY AND GENERAL INFORMATION

GENERAL PRECAUTIONS FOR MAKING REPAIRS

SPECIFICATIONS

ATTACHMENT DIMENSIONS

MAINTENANCE

TOOLS

STANDARD MAINTENANCE TIME TABLE

MAINTENANCE STANDARD AND TEST PROCEDURE SYSTEMS

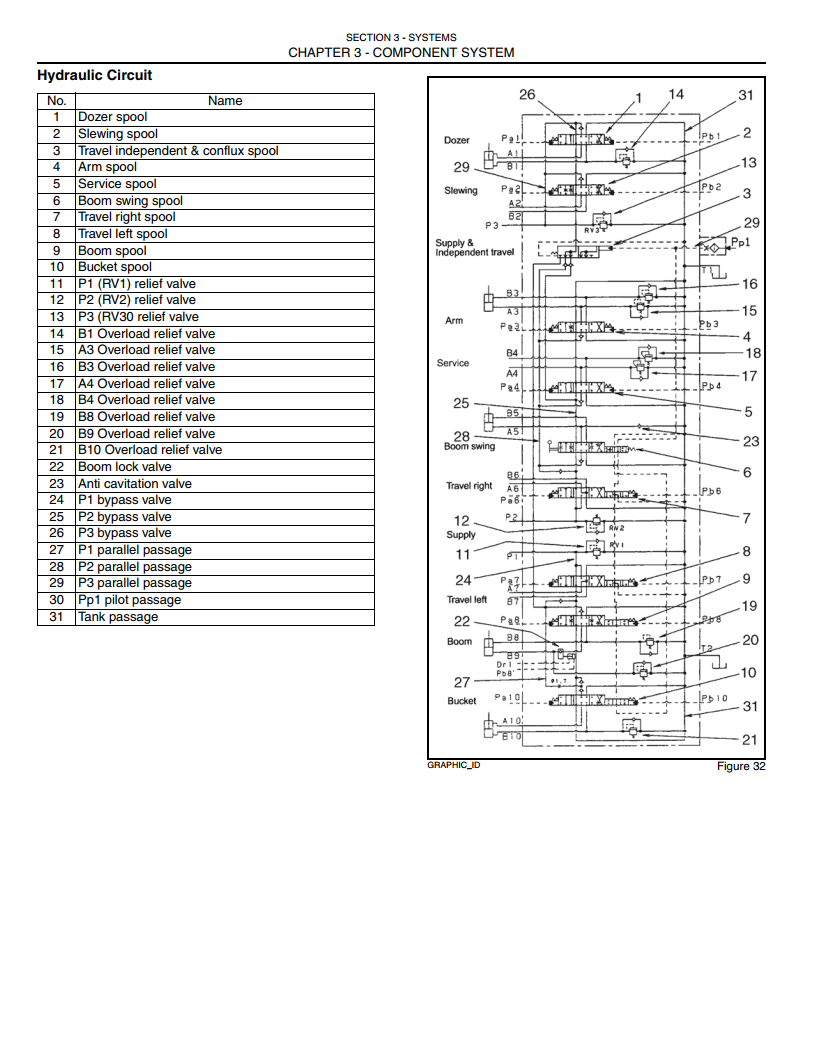

HYDRAULIC SYSTEM

ELECTRICAL SYSTEM

COMPONENT SYSTEM

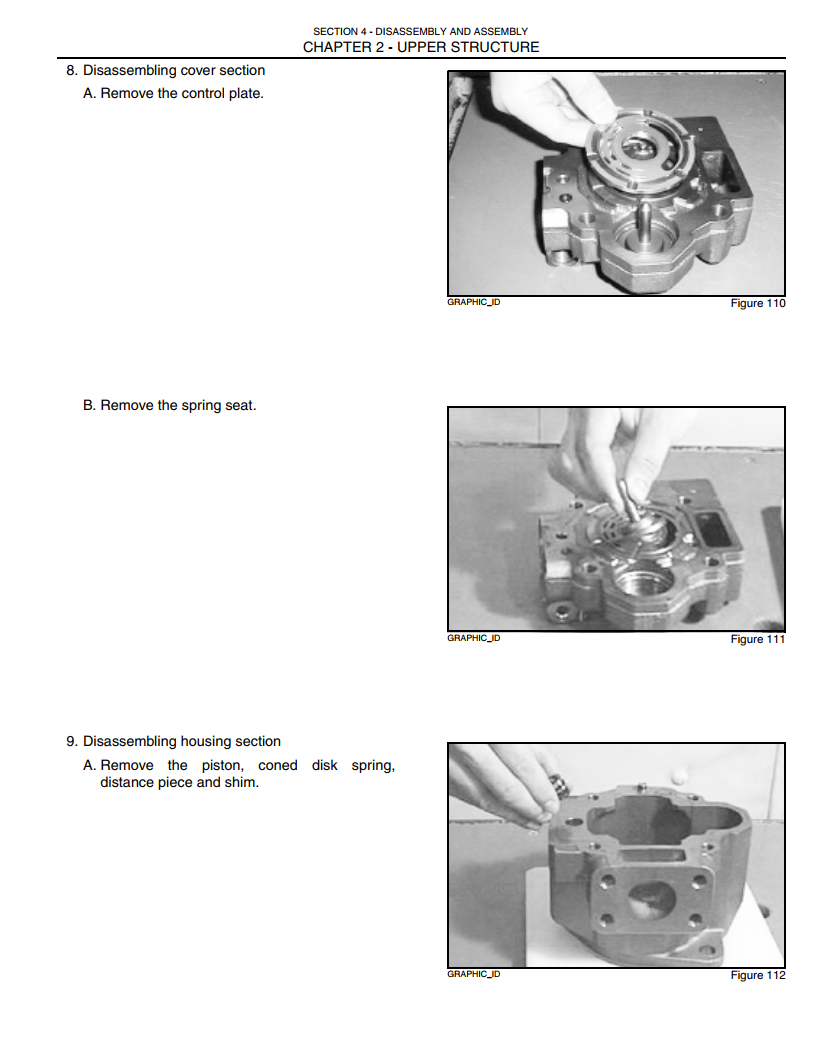

DISASSEMBLY AND ASSEMBLY

ATTACHMENTS

UPPER STRUCTURE

TRAVEL SYSTEM

TROUBLESHOOTING

TROUBLESHOOTING (HYDRAULIC SYSTEM)

TROUBLESHOOTING (ELECTRICAL SYSTEM)

TROUBLESHOOTING (ENGINE)

ENGINE

The Kobelco 27SR Acera Tier 4 Compact Crawler Excavator Service Repair Manual (Form No. S5PV0018E01 NA) is a factory-authorized digital shop manual. It provides comprehensive, step-by-step repair, maintenance, and troubleshooting instructions, equipping professional mechanics and technicians with the data needed to service the machine.
