KOBELCO CK1600 CRAWLER CRANE OPERATION AND MAINTENANCE, PARTS CATALOG MANUAL

KOBELCO CK1600 CRAWLER CRANE OPERATION AND MAINTENANCE, PARTS CATALOG MANUAL
LANGUAGE: ENGLISH, JAPANESE
FORMAT: PDF
PAGES: 1,224
FILE SIZE: 66.7MB

MODEL COVERED:

KOBELCO CK1600 CRAWLER CRANE

APPLICABLE: FROM GN03-02001

PART NO:

S2GN00003ZE10

ISSUED:

MAY, 2007


CONTENTS:

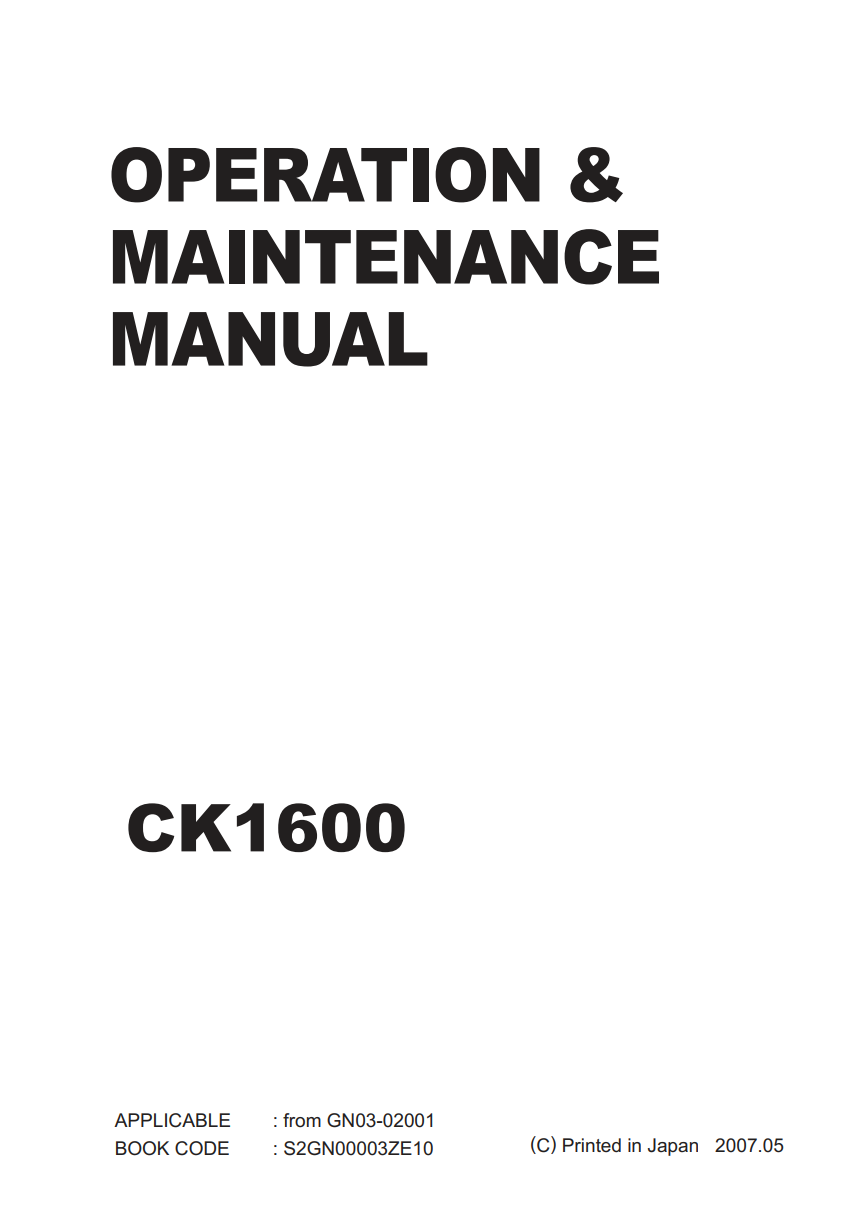

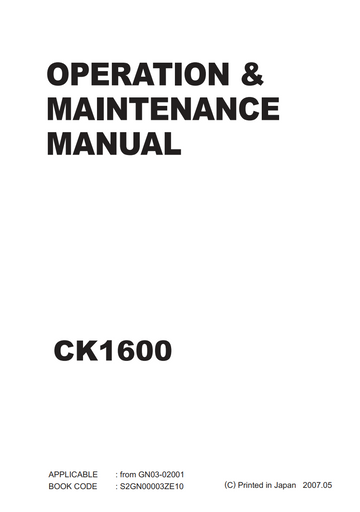

OPERATION AND MAINTENANCE MANUAL:

SAFE OPERATION PRACTICE FOR MOBILE CRANES

OPERATION

LOAD SAFETY DEVICE

UNLOADING/LOADING THE BASIC MACHINE

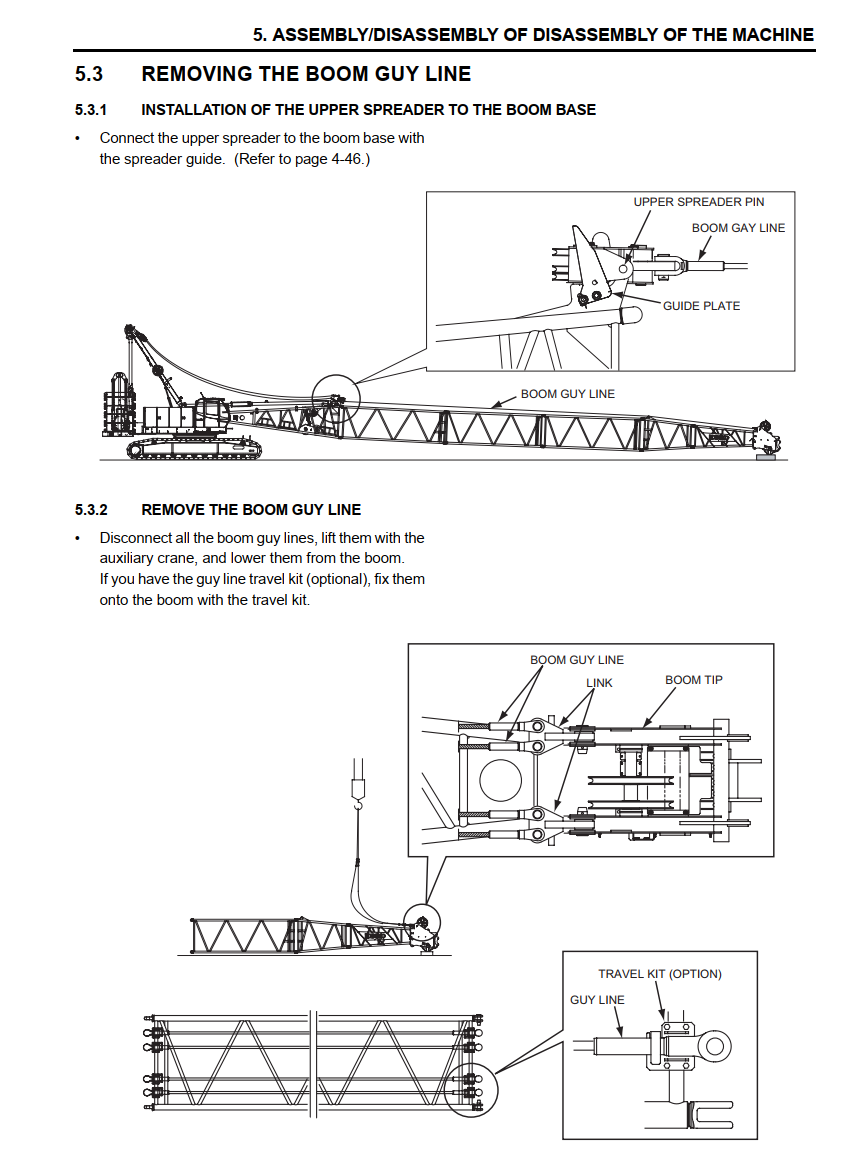

ASSEMBLY/DISASSEMBLY OF BASIC MACHINE

ASSEMBLY/DISASSEMBLY OF CRANE ATTACHMENT

WIRE ROPE

MAINTENANCE

REFERENCE MATERIALS

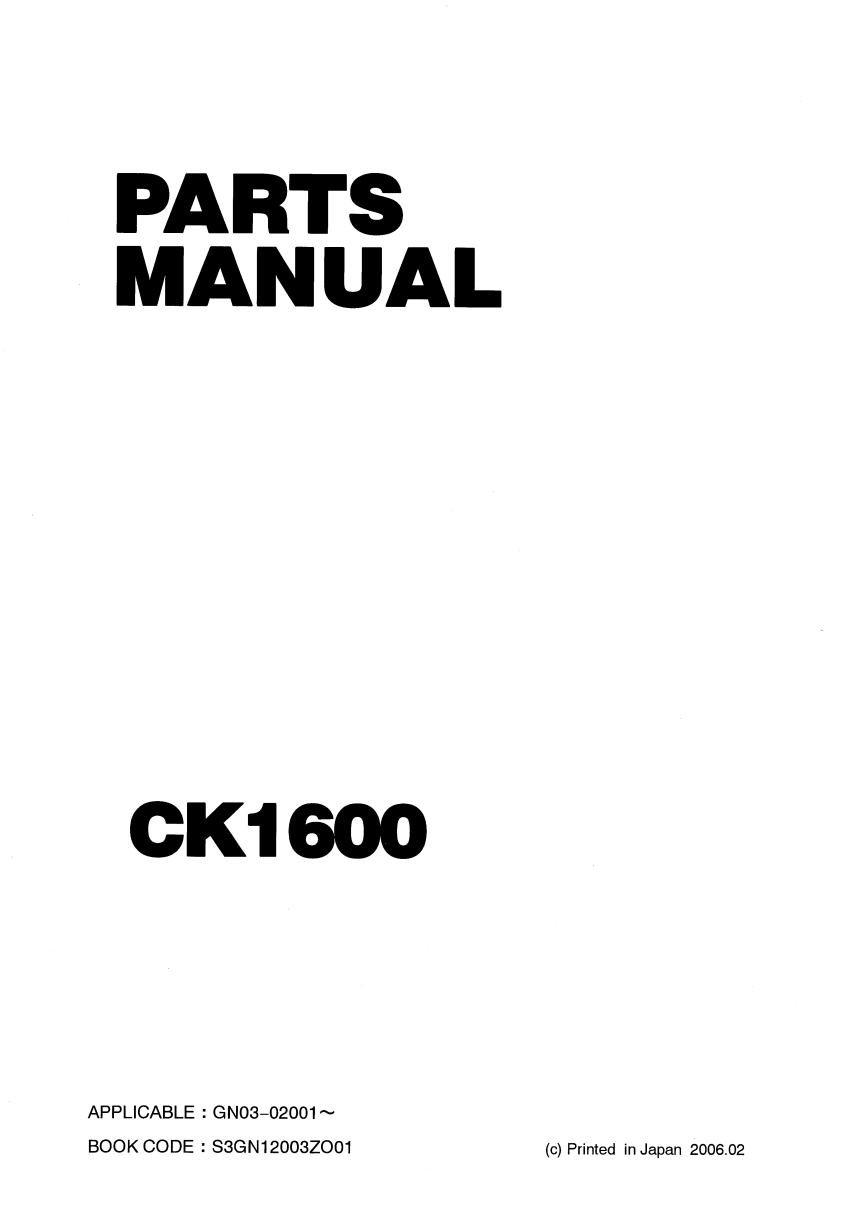

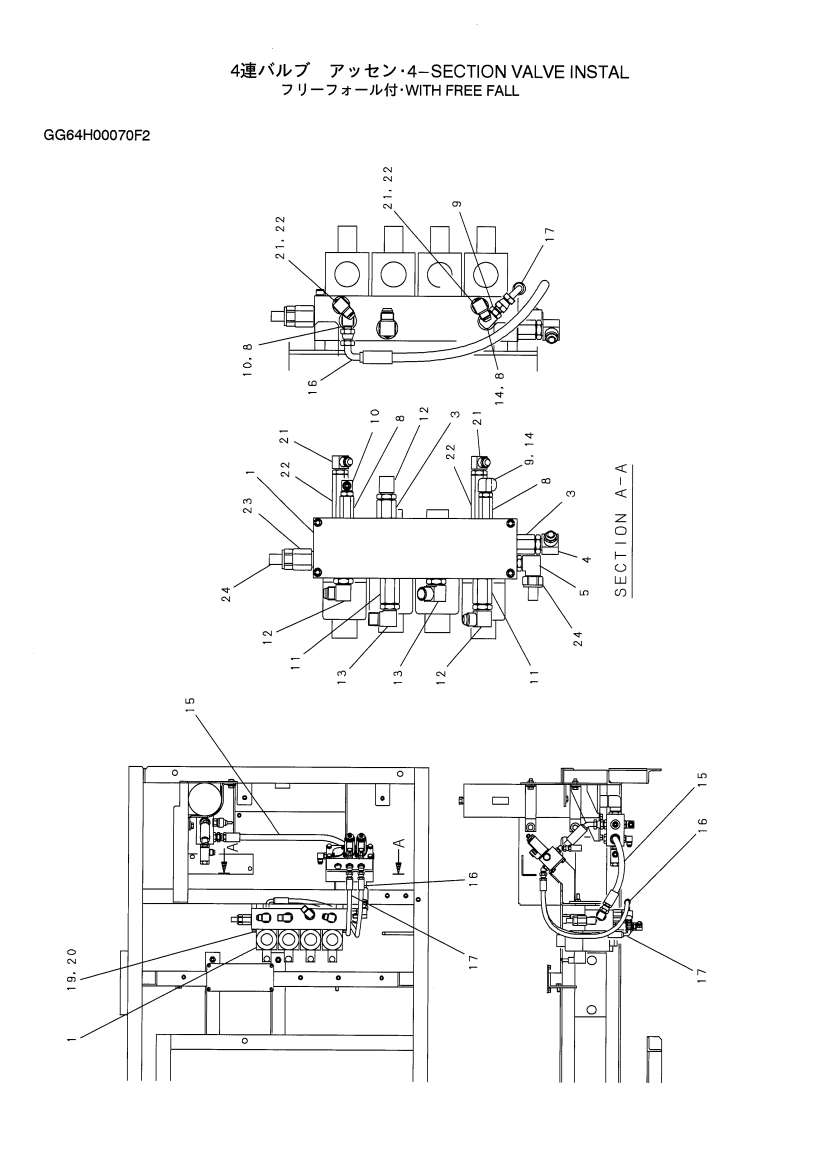

PARTS MANUAL:

CONTROL SYSTEM

WINCH SYSTEM

BOOM HOIST SYSTEM

SWING SYSTEM

LINES

POWER PLANT

ELECTRIC SYSTEM

CAB GUARD PLATFORM

LOWER SYSTEM

CRANE ATTACHMENT

LUFFIN JIB ASSY

GANTRY ASSY

TAGLINE

CONTROL ASSY

SAFETY DEVICE

COUNTERWEIGHT ASSY

LABEL

OTHERS

INDEX

The Kobelco CK1600 is a 160-ton (320,000 lbs) lattice boom crawler crane designed for heavy-duty lifting, featuring a fully hydraulic system, Kohler-designed ITCS (Intelligent Total Control System), and a maximum boom length of 250 ft. It is geared toward high efficiency with specialized, energy-saving "G-Mode" for reduced fuel consumption.
