KOBELCO ISUZU K904 II, K905LC II INDUSTRIAL DIESEL ENGINE SERVICE MANUAL

KOBELCO ISUZU K904 II, K905LC II INDUSTRIAL DIESEL ENGINE SERVICE MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 221
FILE SIZE: 13MB

MODEL & ENGINE COVERED:

K904-II

K905-II

4BD1

4B 6B SERIES

PART NO:

IDE-2041-00

ISSUED:

FEBRUARY, 1987

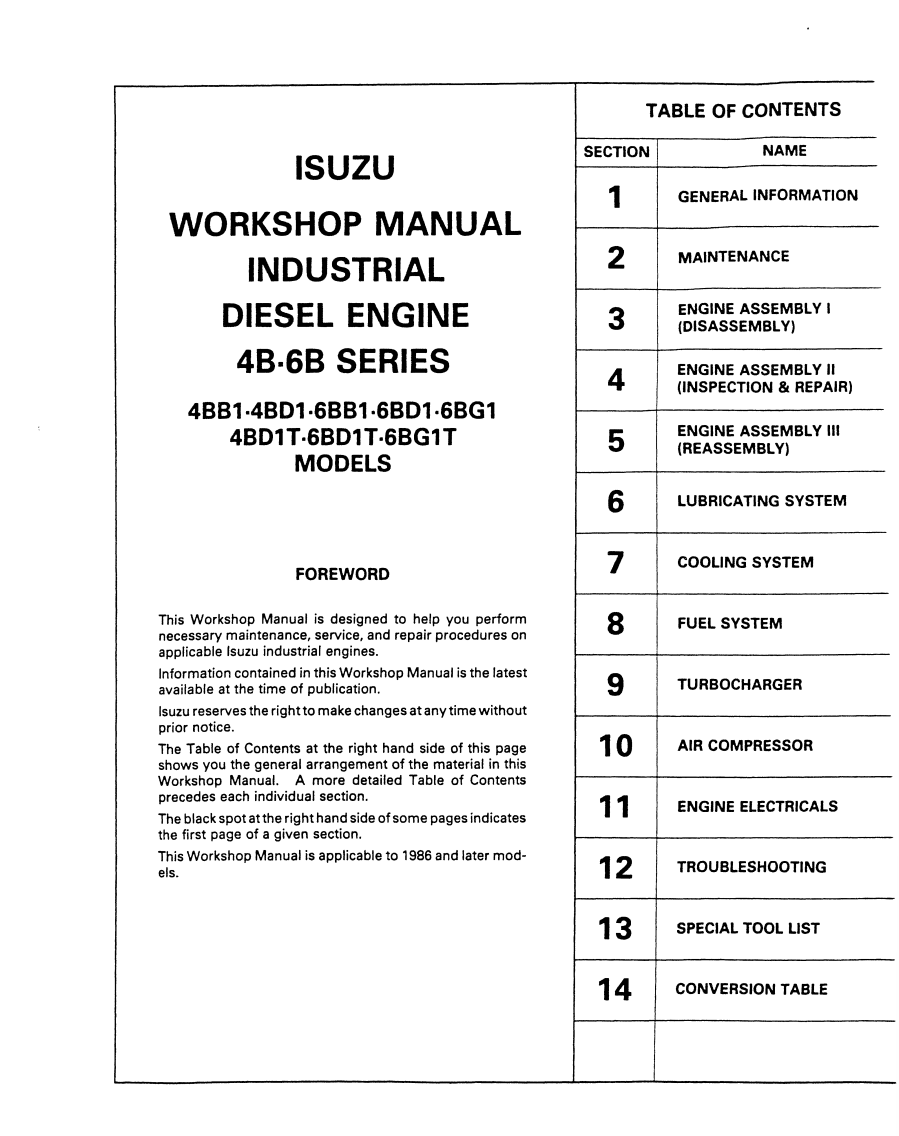

CONTENTS:

SECTION 1 - GENERAL INFORMATION

SECTION 2 - MAINTENANCE

SECTION 3 - ENGINE ASSEMBLY I (DISASSEMBLY)

SECTION 4 - ENGINE ASSEMBLY II (INSPECTION & REPAIR)

SECTION 5 - ENGINE ASSEMBLY III (REASSEMBLY)

SECTION 6 - LUBRICATING SYSTEM

SECTION 7 - COOLING SYSTEM

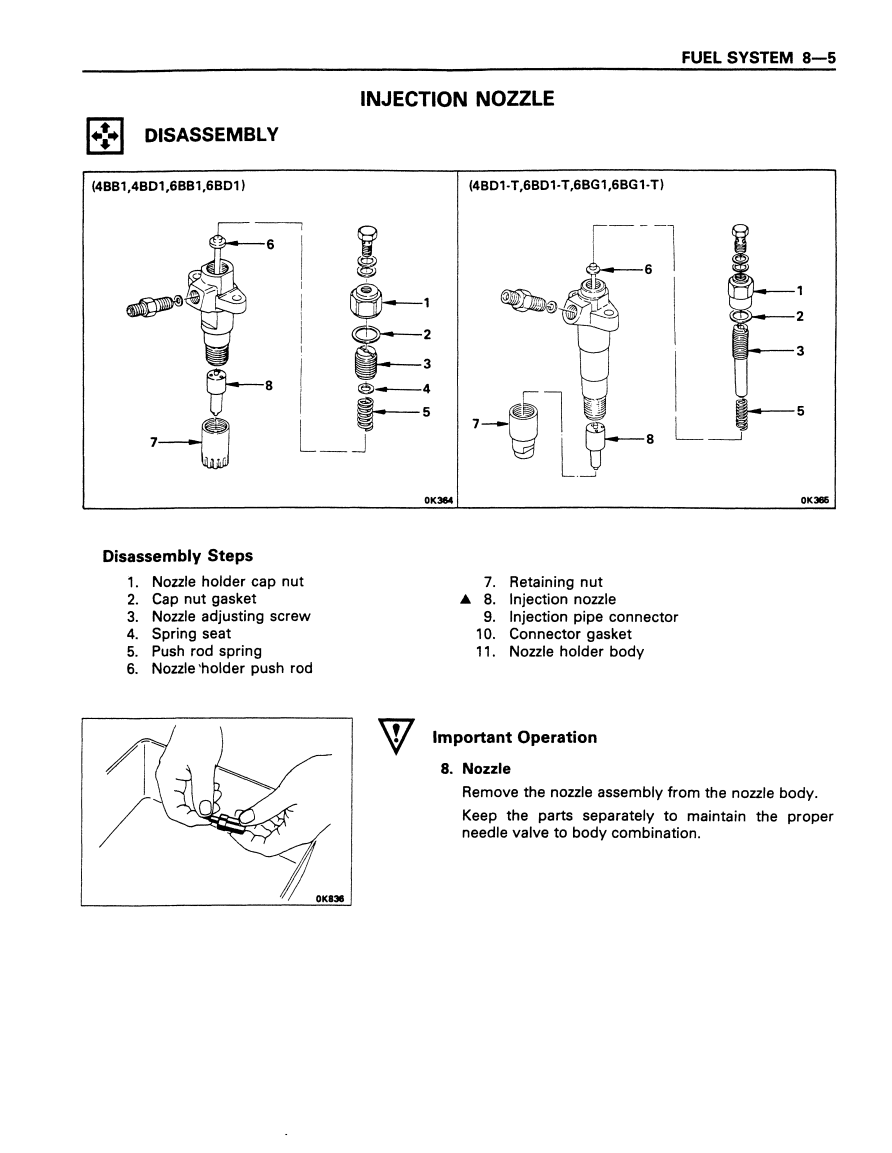

SECTION 8 - FUEL SYSTEM

SECTION 9 - TURBOCHARGER

SECTION 10 - AIR COMPRESSOR

SECTION 11 - ENGINE ELECTRICALS

SECTION 12 - TROUBLESHOOTING

SECTION 13 - SPECIAL TOOL LIST

SECTION 14 - CONVERSION TABLE

The Isuzu K904 II and K905LC II (1987) industrial diesel engine service repair manual (OEM Part Number: IDE-2041) is a comprehensive 221-page factory technical publication. It is primarily designed for heavy equipment mechanics and service centers to facilitate complex teardowns, overhauls, and troubleshooting for these specific power units, which are famously utilized in Kobelco hydraulic excavators from the same era.
