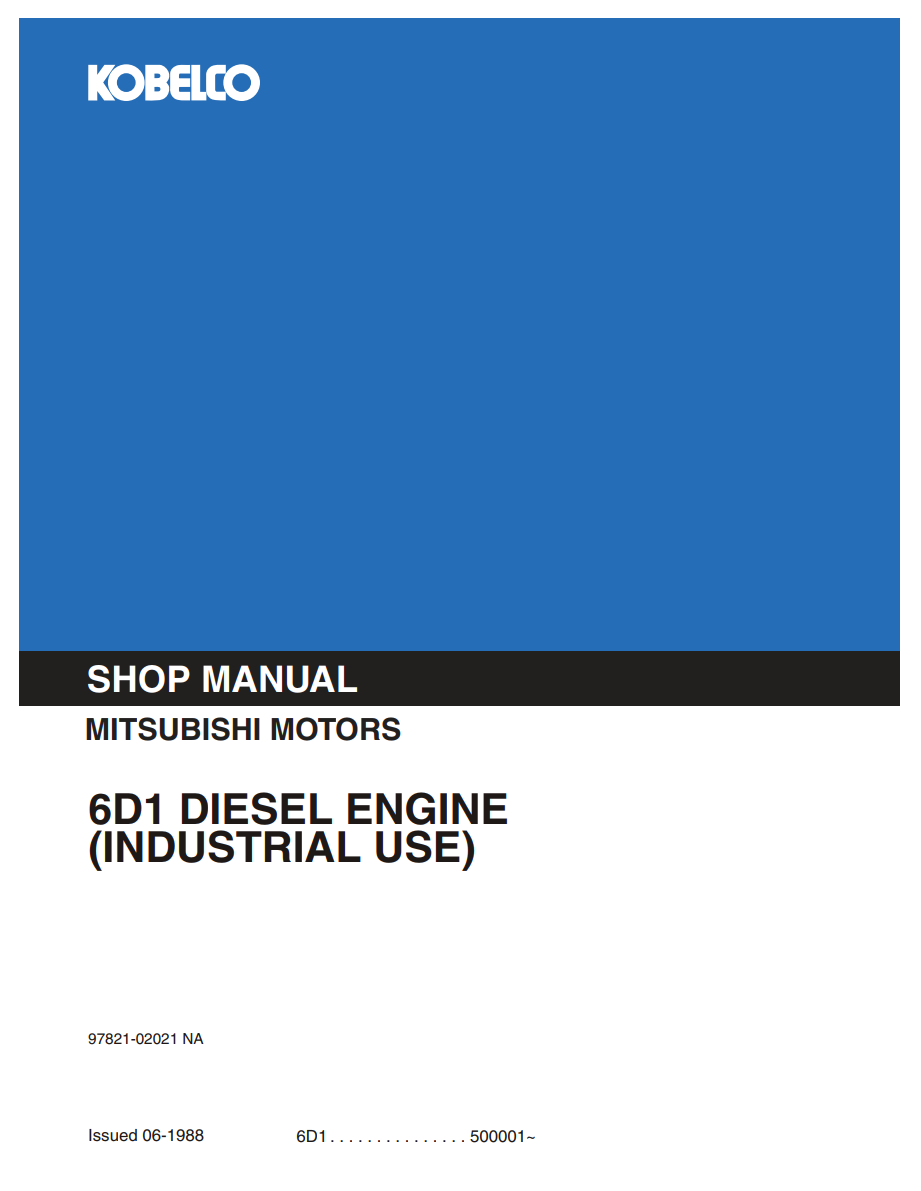

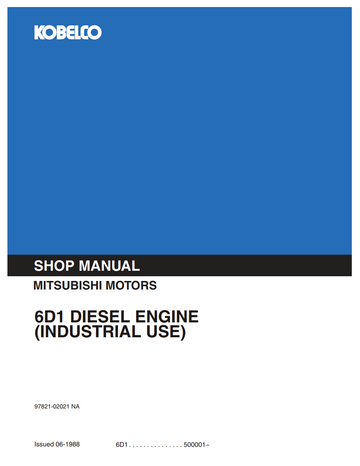

KOBELCO MITSUBISHI MOTOR 6D1 INDUSTRIAL DIESEL ENGINE SERVICE SHOP MANUAL

KOBELCO MITSUBISHI MOTOR 6D1 INDUSTRIAL DIESEL ENGINE SERVICE SHOP MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 402
FILE SIZE: 32.4MB

MODEL COVERED:

6D1 DIESEL ENGINE (INDUSTRIAL USE)

6D1 - 500001 AND UP

PART NO:

97821-02021 NA

ISSUED:

JUNE, 1998

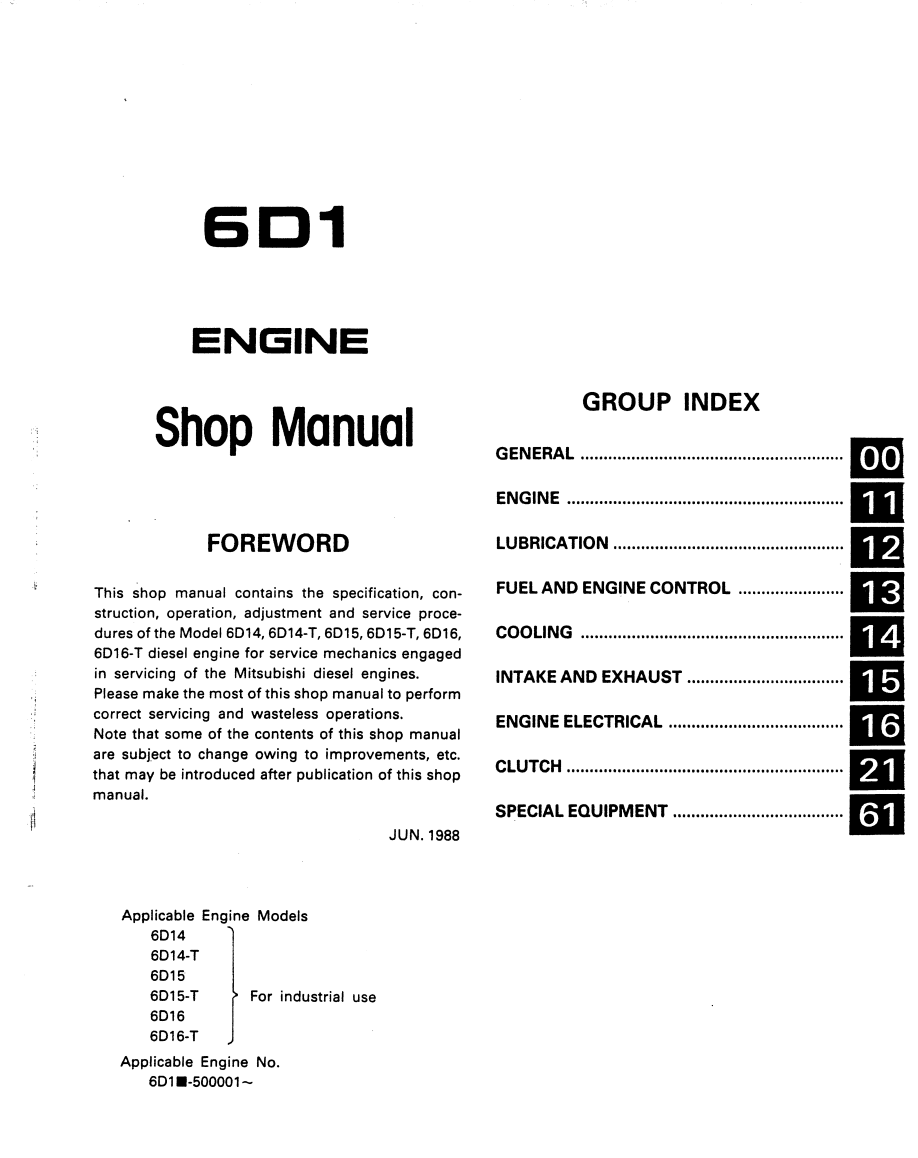

CONTENTS:

GENERAL

ENGINE

LUBRICATION

FUEL AND ENGINE CONTROL

COOLING

INTAKE AND EXHAUST

ENGINE ELECTRICAL

CLUTCH

TRANSMISSION

SPECIAL EQUIPMENT

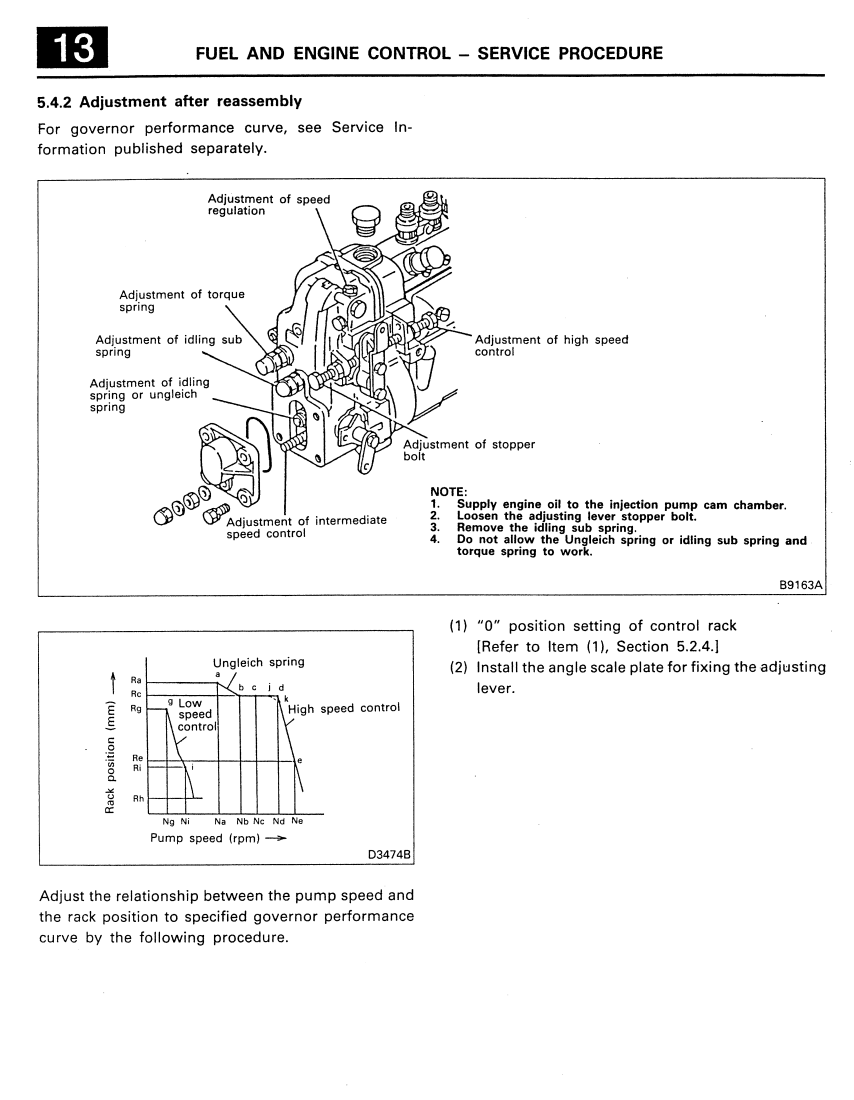

The Kobelco Mitsubishi 6D1 Industrial Diesel Engine Service Shop Manual is a detailed repair and maintenance guide for Mitsubishi 6D1-series diesel engines, including models such as the 6D14, 6D15, and 6D16 used in Kobelco excavators, generators, and other industrial machinery. The manual provides comprehensive information on engine disassembly, inspection, overhaul, assembly, and troubleshooting procedures. It covers major systems including the engine mechanical components, lubrication system, fuel injection system, cooling system, intake and exhaust system, turbocharger, electrical system, and clutch components where applicable. The manual also includes engine specifications, torque values, wear limits, valve clearance settings, wiring diagrams, maintenance schedules, and diagnostic flowcharts for identifying problems such as hard starting, overheating, low oil pressure, excessive smoke, abnormal noise, and power loss. Detailed exploded diagrams, service procedures, and testing methods are provided to help technicians perform accurate repairs and preventive maintenance on Mitsubishi 6D1 industrial diesel engines commonly installed in heavy construction and industrial equipment.
