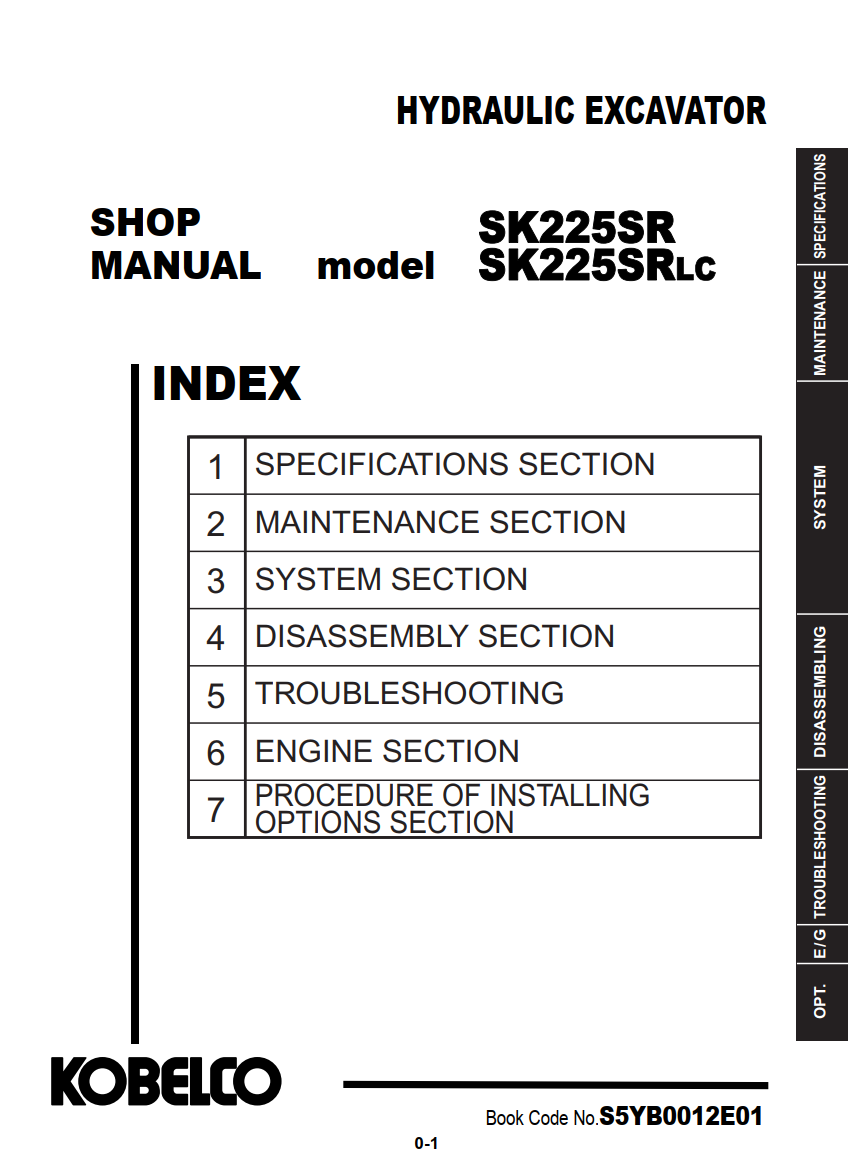

KOBELCO SK225SR, SK225SRLC HYDRAULIC EXCAVATOR SERVICE REPAIR SHOP MANUAL

KOBELCO SK225SR, SK225SRLC HYDRAULIC EXCAVATOR SERVICE REPAIR SHOP MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 1,200
FILE SIZE: 66.6MB

MODEL COVERED:

KOBELCO SK225SR, SK225SRLC HYDRAULIC EXCAVATOR

APPLICABLE MACHINES:

YB06-03580 AND HIGHER

LA06-02501 AND HIGHER

PART NO:

S5YB0012E01

ISSUED:

DECEMBER, 2010


CONTENTS:

SPECIFICATIONS SECTION

MAINTENANCE SECTION

SYSTEM SECTION

DISASSEMBLY SECTION

TROUBLESHOOTING

ENGINE SECTION

PROCEDURE OF INSTALLING OPTIONS SECTION

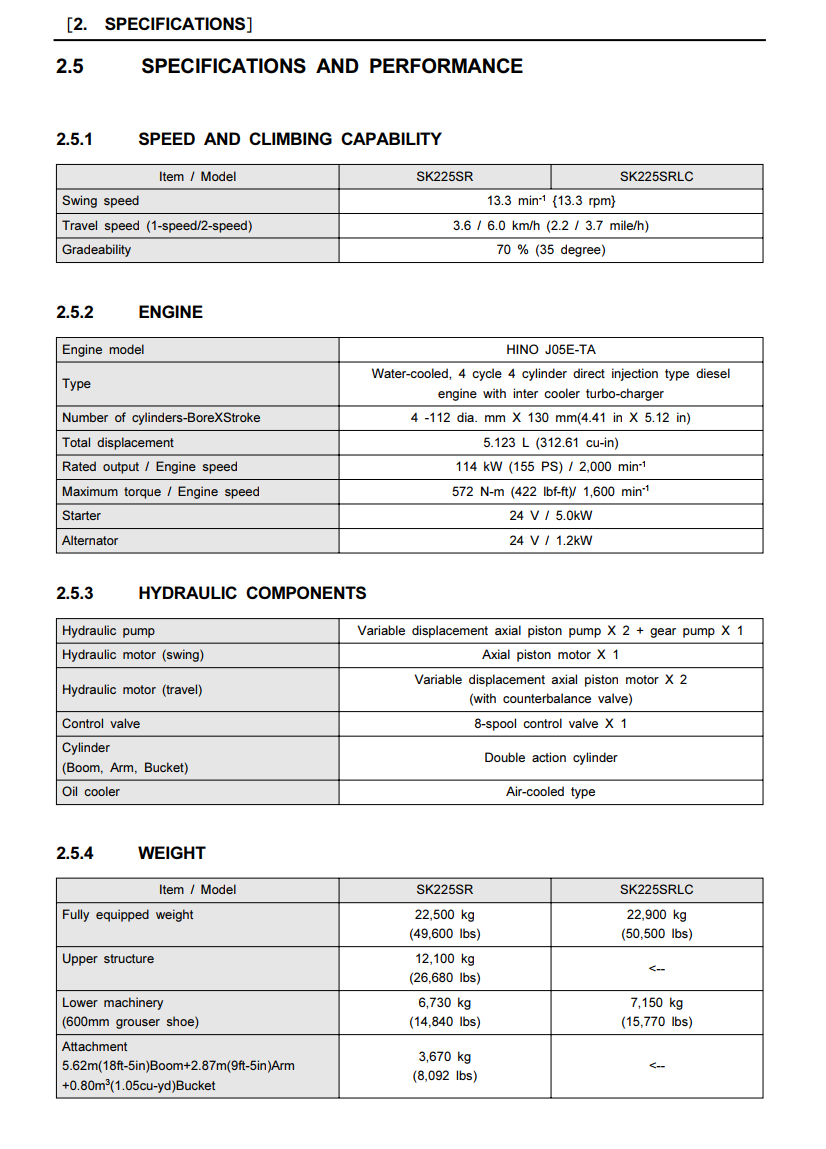

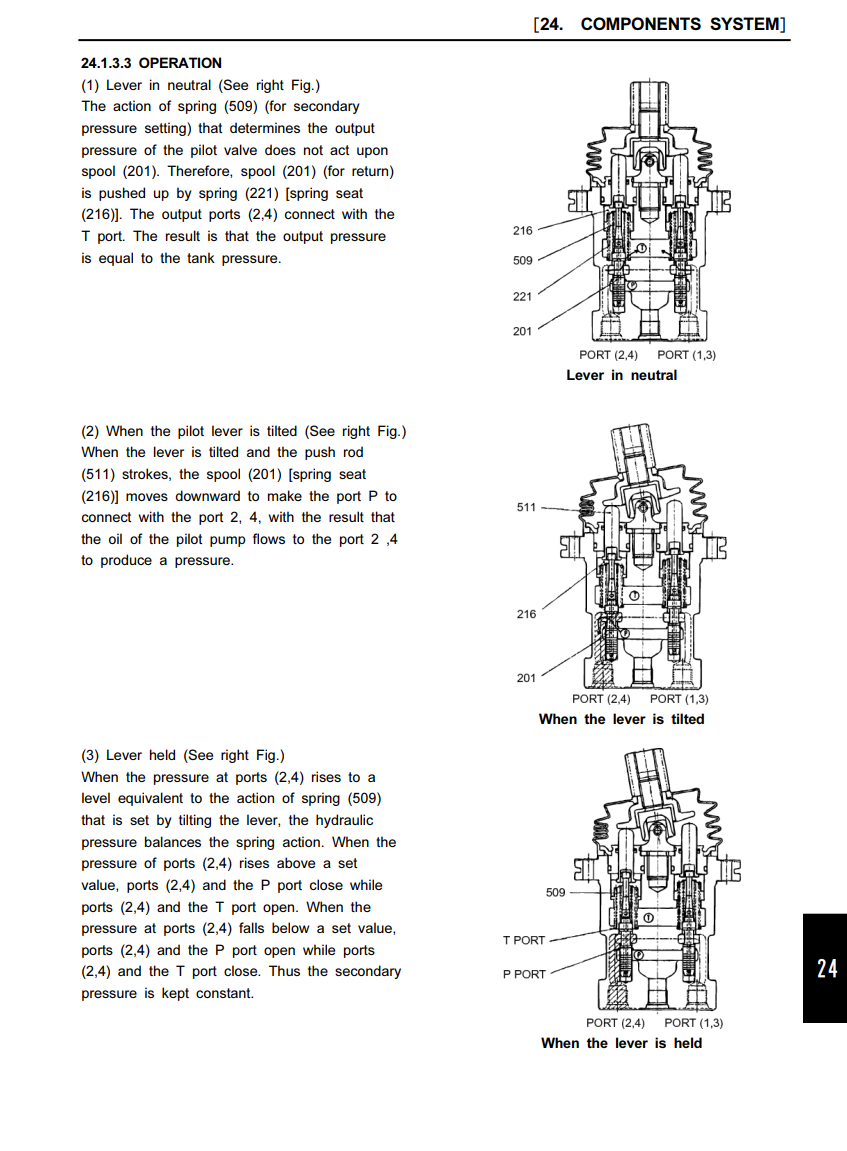

The KOBELCO SK225SR and SK225SRLC Hydraulic Excavator Service Repair Shop Manual is a comprehensive factory workshop guide designed for professional technicians, mechanics, equipment owners, and construction fleet maintenance personnel. This detailed manual provides complete coverage of machine specifications, preventive maintenance procedures, hydraulic and electrical system diagnostics, troubleshooting guides, component disassembly and assembly instructions, engine service procedures, inspection standards, testing methods, wiring diagrams, and repair specifications required to maintain peak machine performance. The manual includes step-by-step repair instructions for the hydraulic pumps, control valves, swing system, travel motors, undercarriage components, boom, arm, bucket mechanisms, and electronic control systems, enabling accurate fault diagnosis and efficient repairs. Detailed illustrations, technical diagrams, service data, torque settings, and maintenance schedules help reduce downtime while ensuring safe and reliable operation. Whether performing routine servicing, major overhauls, or complex troubleshooting, this workshop manual serves as an essential reference for maintaining the KOBELCO SK225SR and SK225SRLC excavators to factory standards. Typical KOBELCO shop manuals of this series include sections covering specifications, maintenance, system operation, disassembly, troubleshooting, engine service, and optional attachment installation procedures, providing technicians with the information needed for complete machine support.
