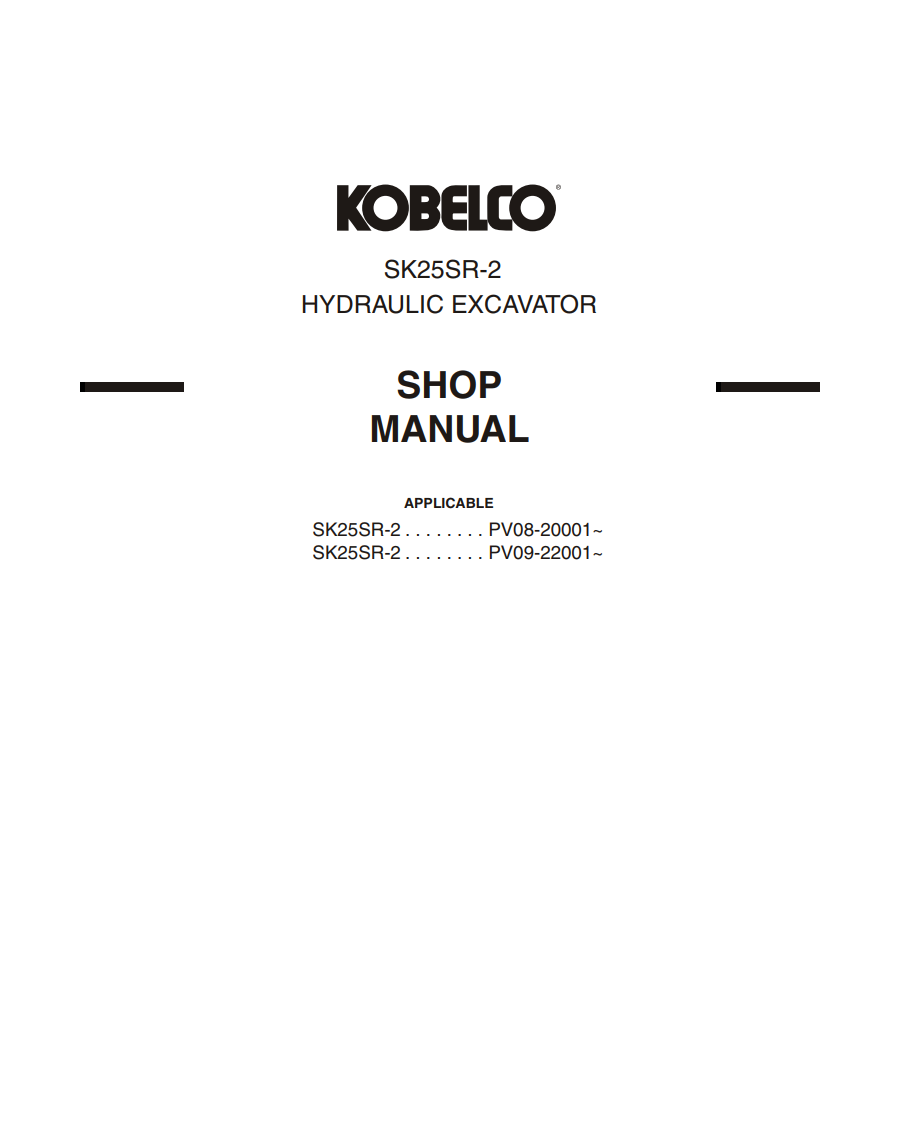

KOBELCO SK25SR-2 HYDRAULIC EXCAVATOR WORKSHOP SERVICE REPAIR SHOP MANUAL

KOBELCO SK25SR-2 HYDRAULIC EXCAVATOR WORKSHOP SERVICE REPAIR SHOP MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 630
FILE SIZE: 62.2MB

MODEL COVERED:

KOBELCO SK25SR-2 HYDRAULIC EXCAVATOR

PART NO:

S5PV0001E-02 NA

APPLICABLE:

SK25SR-2 - PV08-20001~

SK25SR-2 - PV09-22001~

ISSUED:

JANUARY, 2003


CONTENTS:

GENERAL

SPECIFICATION

MAINTENANCE

ATTACHMENTS DIMENSIONS

TOOLS

STANDARD MAINTENANCE TIME TABLE

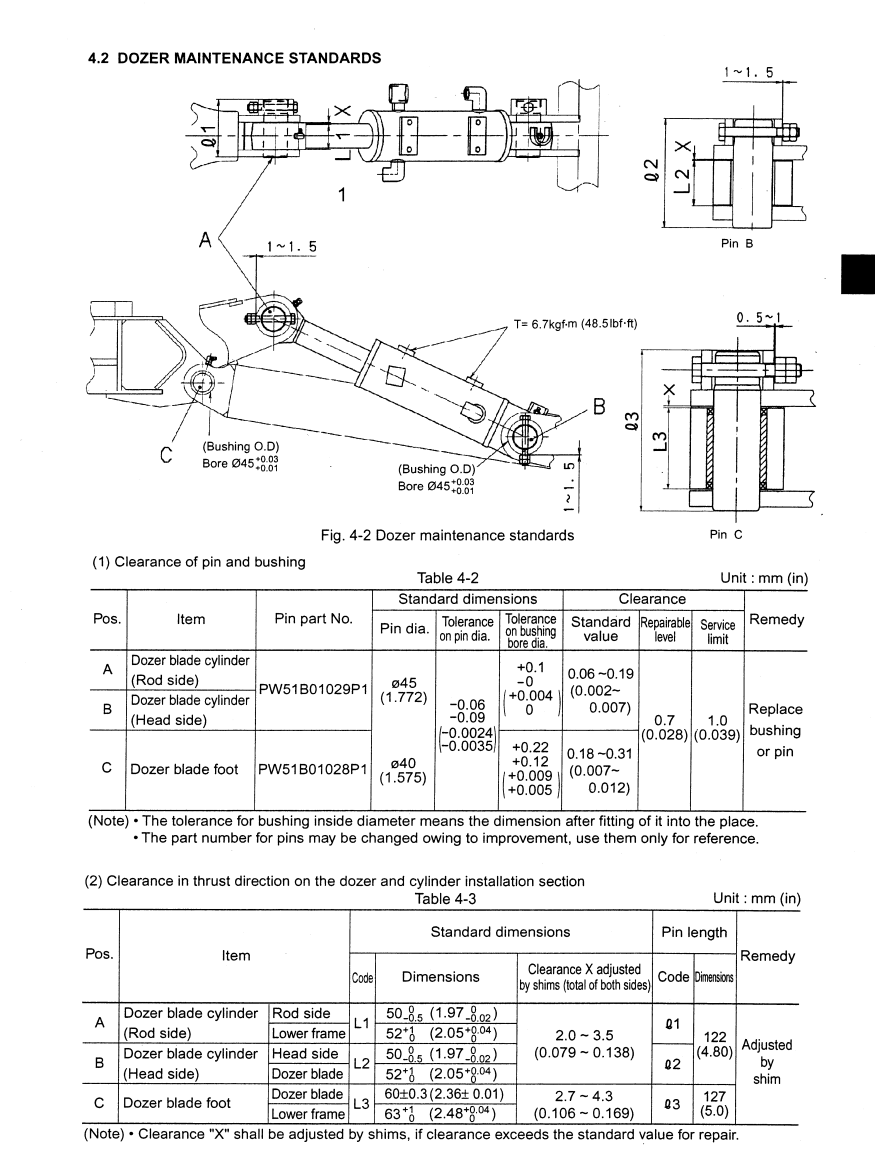

MAINTENANCE STANDARDS AND TESTS PROCEDURES

SYSTEMS

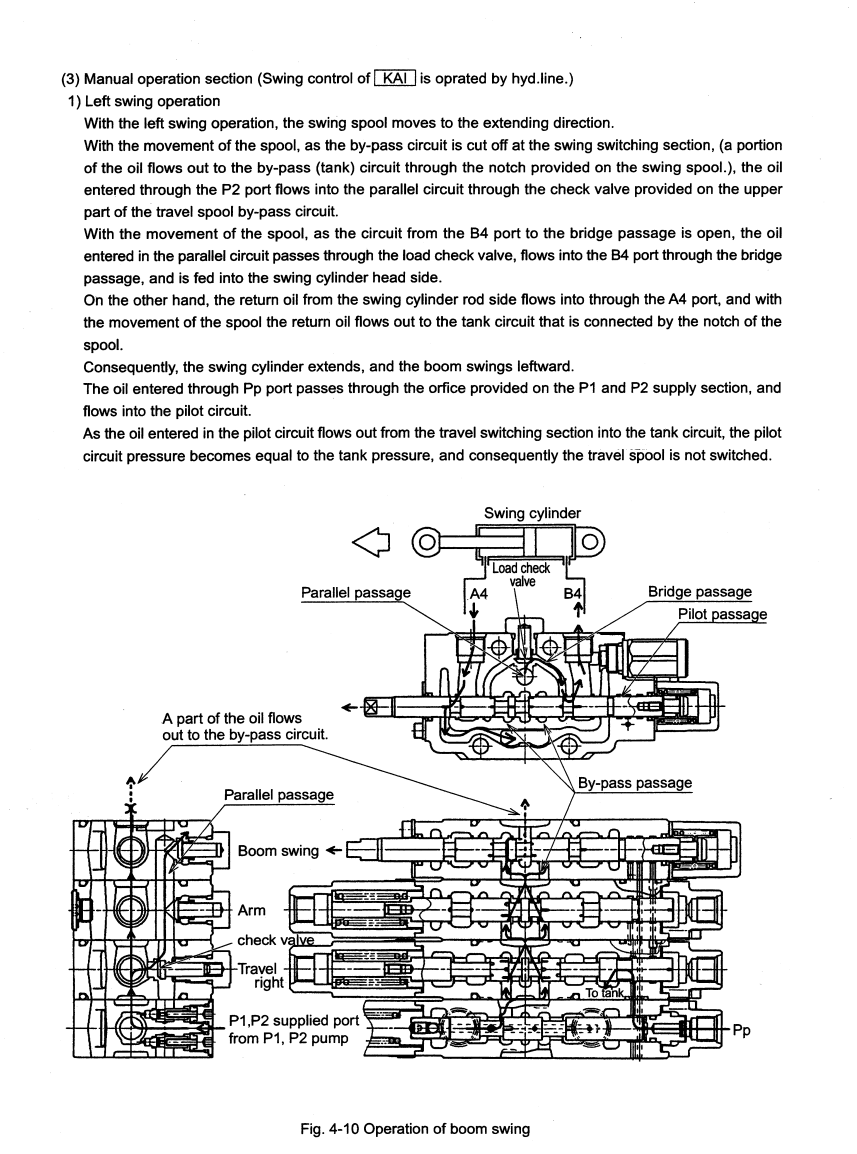

HYDRAULIC SYSTEM

ELECTRIC SYSTEM

COMPONENT SYSTEM

DISASSEMBLING

WHOLE DISASSEMBLING

ATTACHMENTS

UPPER SLEWING STRUCTURE

TRAVEL SYSTEM

TROUBLESHOOTING

HYDRAULIC SYSTEM

ELECTRIC SYSTEM

ENGINE

The KOBELCO SK25SR-2 Hydraulic Excavator Workshop Service Repair Shop Manual is a complete professional guide designed for technicians, mechanics, contractors, and equipment owners who need detailed maintenance and repair information for the SK25SR-2 compact excavator. This comprehensive manual covers engine servicing, hydraulic system diagnostics, electrical troubleshooting, undercarriage maintenance, operational procedures, disassembly and assembly instructions, wiring diagrams, technical specifications, inspection procedures, and preventive maintenance schedules. It provides step-by-step repair instructions with detailed illustrations and diagrams to help users accurately troubleshoot problems and perform repairs efficiently. The manual is ideal for reducing downtime, improving machine performance, and extending equipment lifespan. The KOBELCO SK25SR-2 mini excavator features a compact zero-tail-swing design, approximately 2.4–2.5 ton operating weight, excellent digging reach, and reliable hydraulic performance, making it highly suitable for construction, landscaping, utility, and confined-area excavation projects.
