KOBELCO SK260-8 TIER 3 HYDRAULIC EXCAVATOR SERVICE REPAIR SHOP MANUAL

KOBELCO SK260-8 TIER 3 HYDRAULIC EXCAVATOR SERVICE REPAIR SHOP MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 962
FILE SIZE: 71.7MB

MODEL COVERED:

KOBELCO SK260-8 TIER 3 HYDRAULIC EXCAVATOR

PART NO:

S5YN0118E01 NA

APPLICABLE MACHINES:

SK260-8 - LL12-05001 AND HIGHER

ISSUED:

MAY, 2007


CONTENTS:

SAFETY

OUTLINE

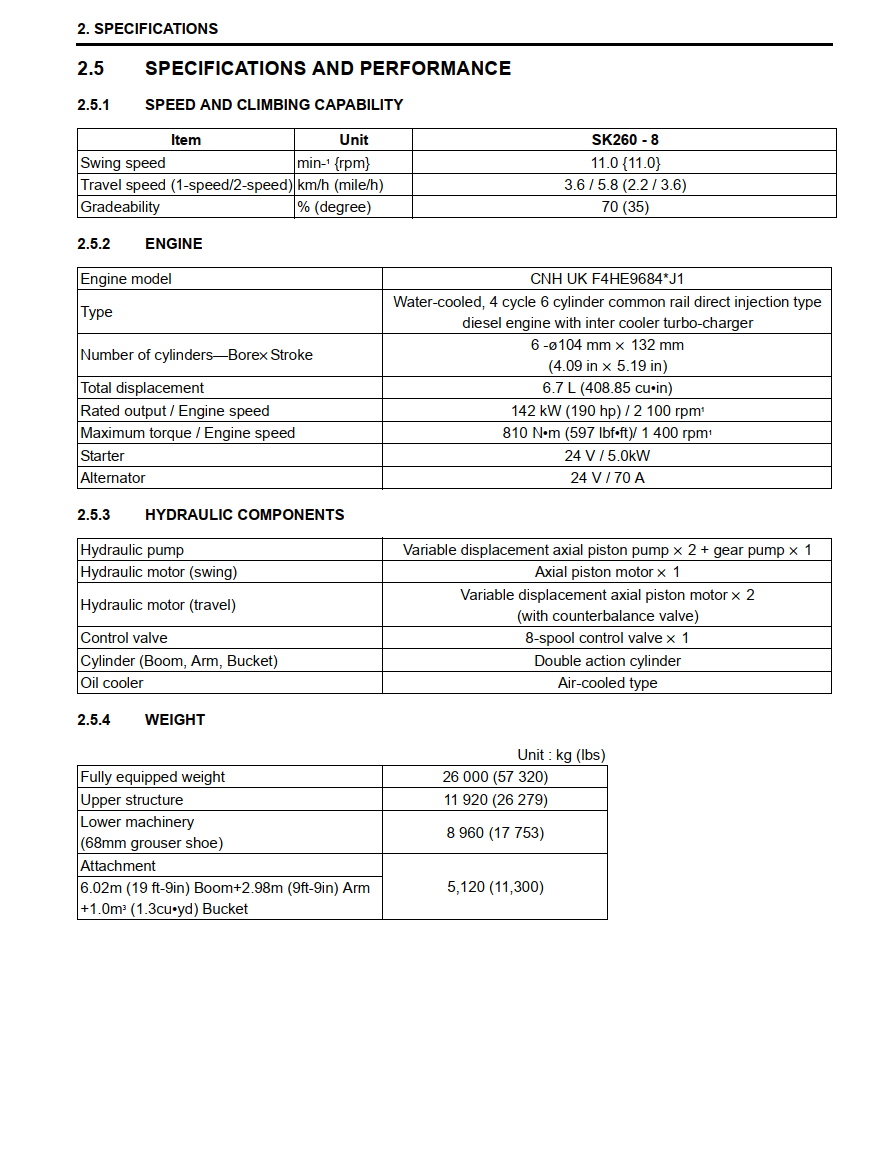

SPECIFICATIONS

ATTACHMENT DIMENSIONS

TOOLS

STANDARD MAINTENANCE TIME TABLE

MAINTENANCE STANDARD AND TEST PROCEDURE

MECHATRO CONTROL SYSTEM

HYDRAULIC SYSTEM

ELECTRIC SYSTEM

COMPONENTS SYSTEM

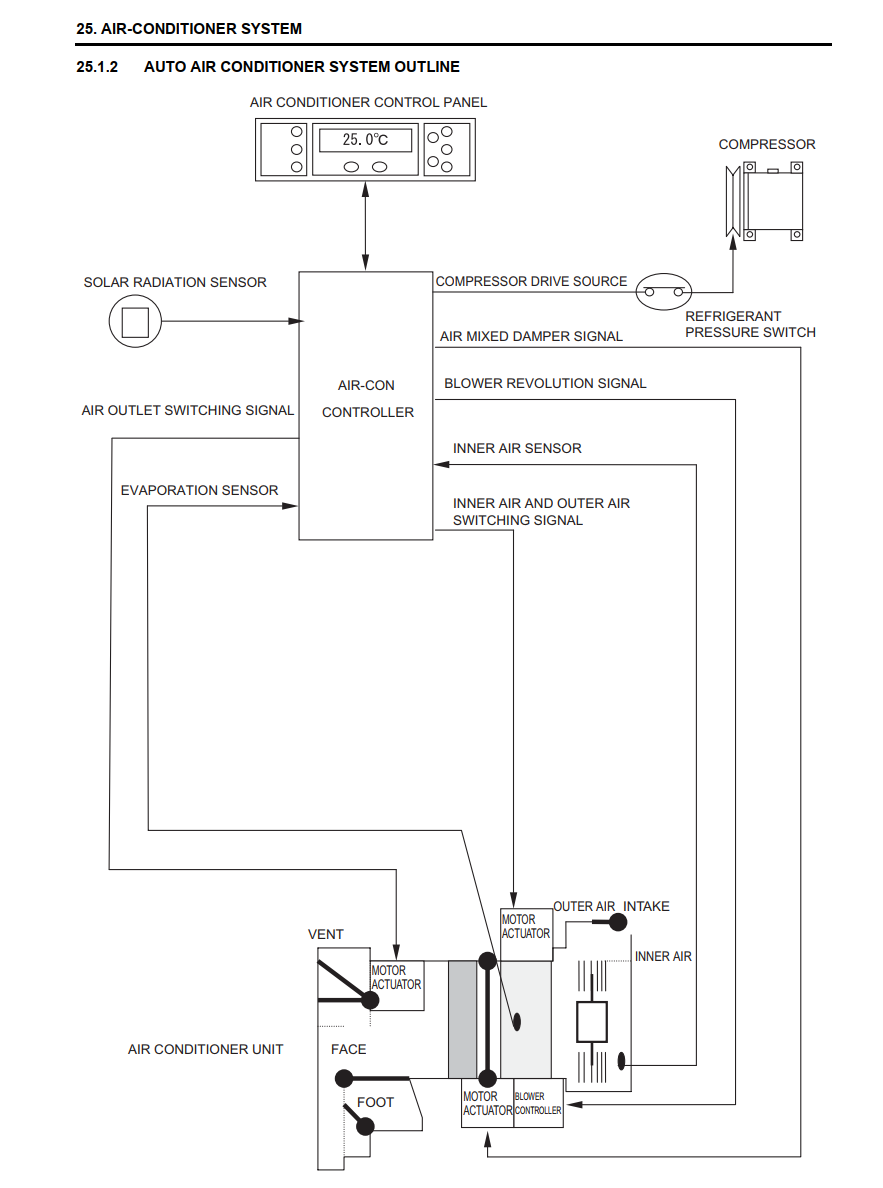

AIR-CONDITIONER SYSTEM

DISASSEMBLING AND ASSEMBLING

ATTACHMENT

UPPER STRUCTURE

TRAVEL SYSTEM

TROUBLESHOOTING (BY ERROR CODES)

TROUBLESHOOTING (BY TROUBLE)

ENGINE

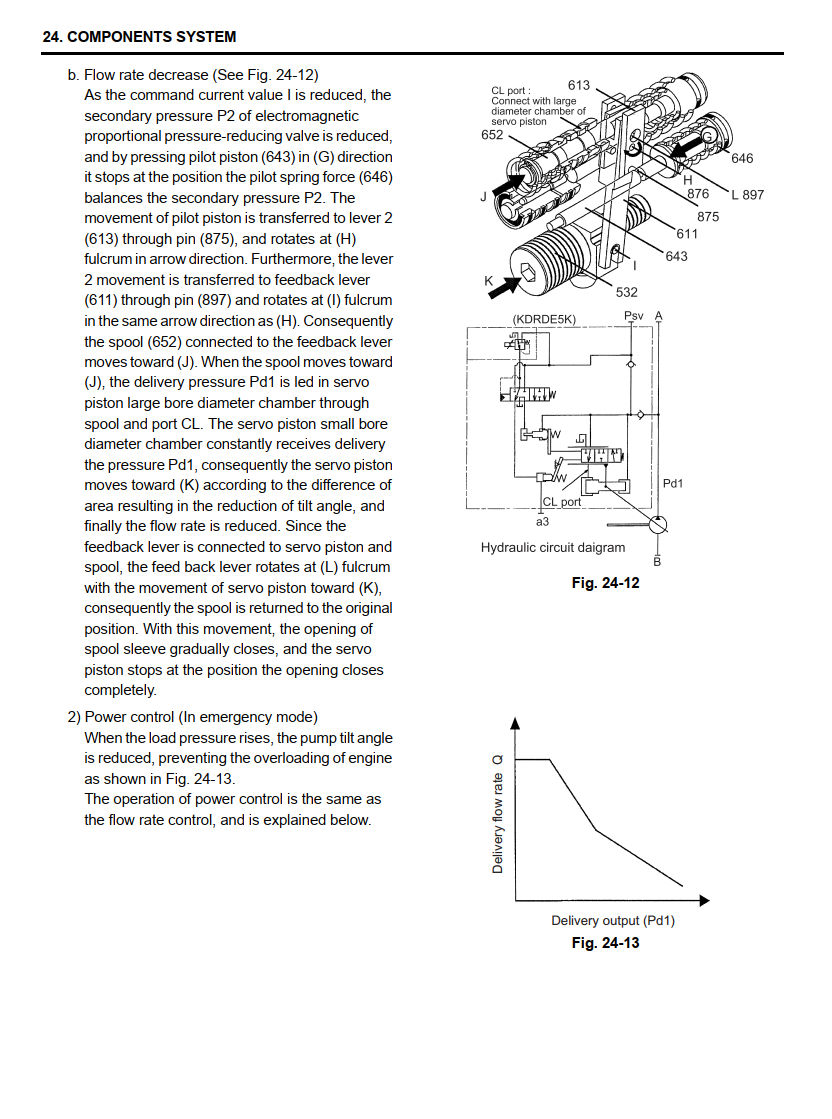

The KOBELCO SK260-8 Tier 3 Hydraulic Excavator Service Repair Shop Manual is a comprehensive workshop guide designed for technicians, mechanics, contractors, and equipment owners who need detailed information for maintenance, troubleshooting, overhaul, and repair procedures. This professional service manual covers all major machine systems, including engine diagnostics, hydraulic systems, electrical circuits, travel motors, swing mechanisms, control valves, undercarriage components, and attachment installation procedures. Detailed step-by-step instructions, technical specifications, wiring diagrams, hydraulic schematics, maintenance schedules, disassembly and assembly procedures, inspection standards, and troubleshooting charts help ensure accurate repairs and maximum machine performance. The manual is an essential resource for reducing downtime, improving reliability, and maintaining the KOBELCO SK260-8 Tier 3 excavator according to manufacturer standards. It is suitable for workshop use and provides the technical information required for both routine servicing and major component rebuilding. Information commonly found in KOBELCO service manuals includes specifications, maintenance procedures, system operation, troubleshooting, engine service, and optional equipment installation guidance.
