KOBELCO SK30SR-2 SK35SR-2 HYDRAULIC EXCAVATOR SERVICE REPAIR SHOP MANUAL

KOBELCO SK30SR-2 SK35SR-2 HYDRAULIC EXCAVATOR SERVICE REPAIR SHOP MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 586
FILE SIZE: 48.4MB

MODEL COVERED:

KOBELCO SK30SR-2 SK35SR-2 HYDRAULIC EXCAVATOR

PART NO:

S5PW0002E-02

APPLICABLE:

SK30SR-2 - PW08-20001 AND HIGHER

SK30SR-2 - PW10-22001 AND HIGHER

SK35SR-2 - PX09-08001 AND HIGHER

SK35SR-2 - PX11-08901 AND HIGHER

ISSUED:

JANUARY, 2001

REVISED - NOVEMBER, 2001

REVISED - DECEMBER, 2002


CONTENTS:

SPECIFICATIONS

MAINTENANCE

HYDRAULIC SYSTEM

DISASSEMBLING

TROUBLESHOOTING

ENGINE

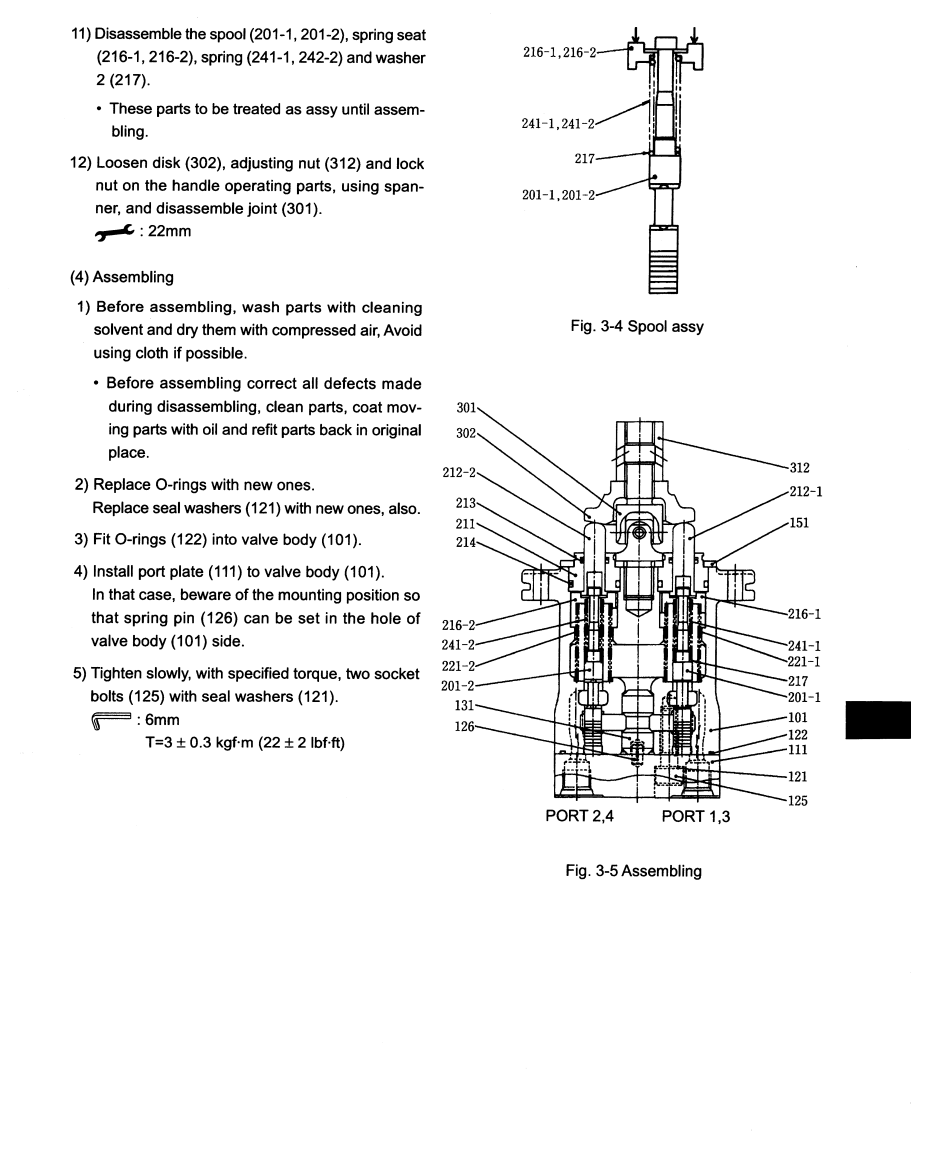

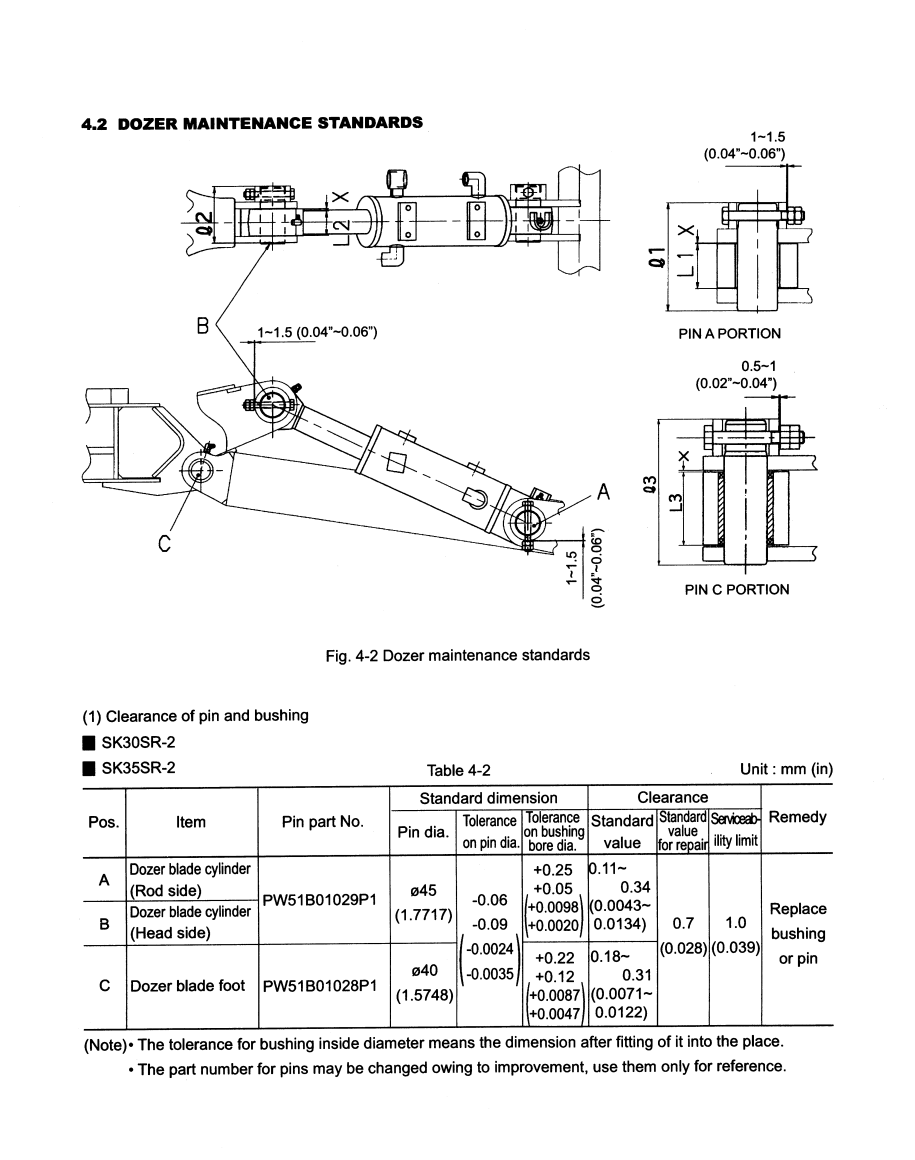

The KOBELCO SK30SR-2 and SK35SR-2 Hydraulic Excavator Service Repair Shop Manual is a complete workshop guide designed for professional mechanics, technicians, equipment owners, and construction machinery operators. This comprehensive repair manual provides detailed instructions for servicing, troubleshooting, maintenance, overhaul, and repair procedures for KOBELCO SK30SR-2 and SK35SR-2 compact hydraulic excavators. It includes step-by-step diagrams, hydraulic system schematics, electrical wiring diagrams, engine specifications, diagnostic procedures, component disassembly and reassembly instructions, torque settings, inspection standards, and preventive maintenance schedules. The manual covers essential systems such as the engine, hydraulic pumps, travel motors, swing system, undercarriage, control valves, electrical components, cooling system, and attachment mechanisms. Whether performing routine maintenance or major repairs, this factory-style workshop manual helps ensure accurate servicing, improved machine performance, reduced downtime, and extended equipment lifespan. Ideal for workshops, contractors, heavy equipment technicians, and DIY repair professionals seeking reliable technical information for KOBELCO compact excavators.
