KOBELCO SK330(LC)-6E, SK330 NLC-6E EXCAVATOR SERVICE SHOP MANUAL

KOBELCO SK330(LC)-6E, SK330 NLC-6E EXCAVATOR SERVICE SHOP MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 2,546
FILE SIZE: 147MB

MODEL COVERED:

KOBELCO SK330(LC)-6E, SK330 NLC-6E EXCAVATOR

APPLICABLE MACHINES:

LCO8-06201~

YC08-03001~

LC09-06323~

YC09-03088~

LC07-06001~

YC07-02801~

PART NO:

S5LC0009E-2

S5LC0008E-2

ISSUED:

NOVEMBER, 2003

NOVEMVER, 2001

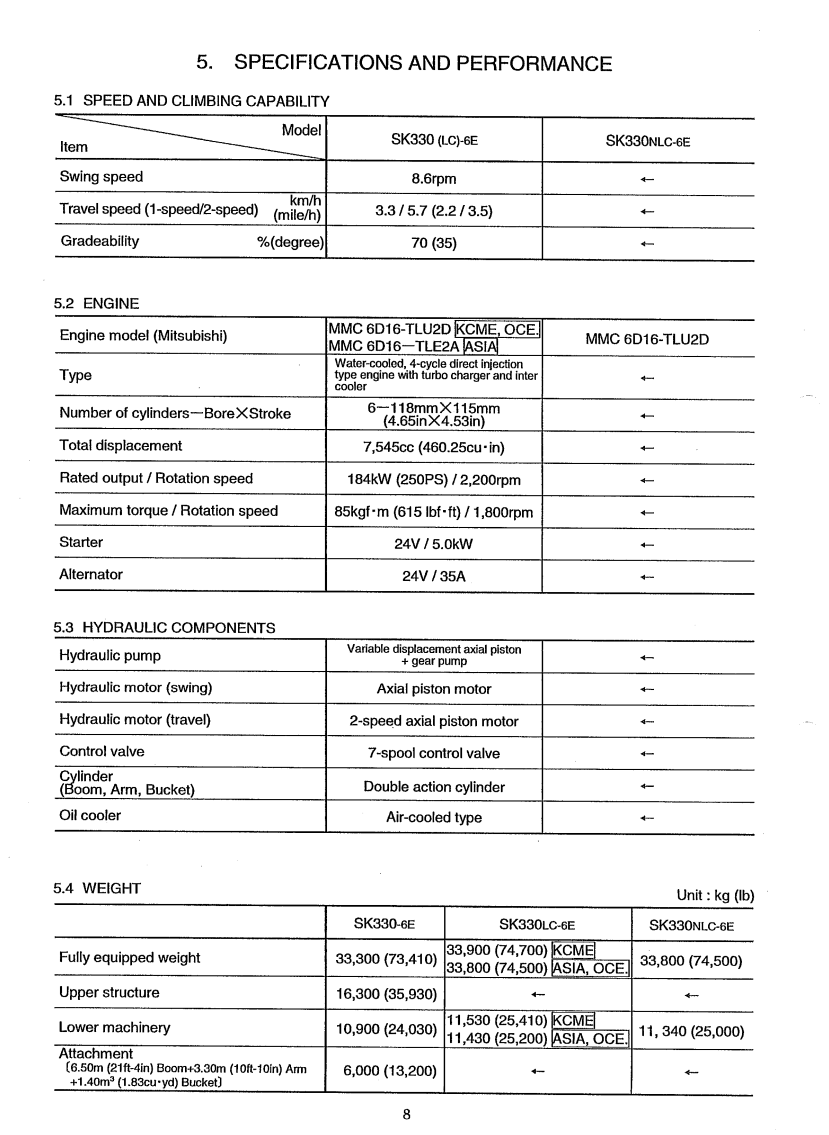

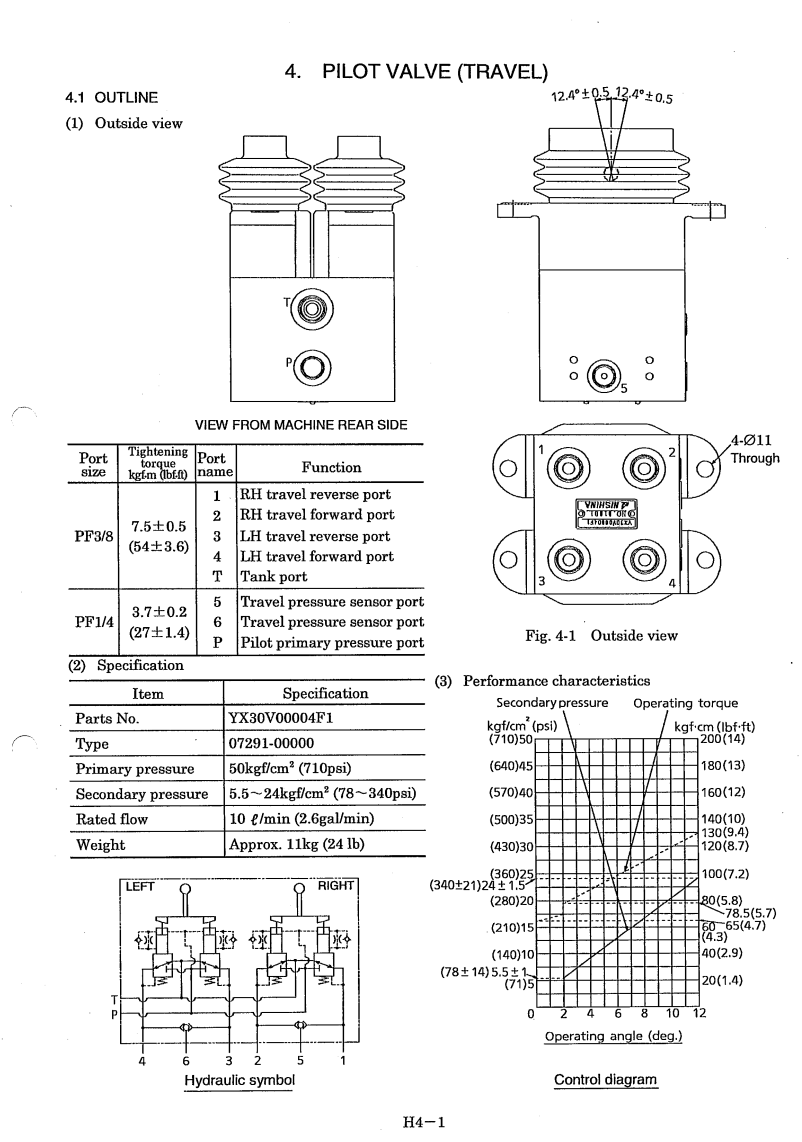

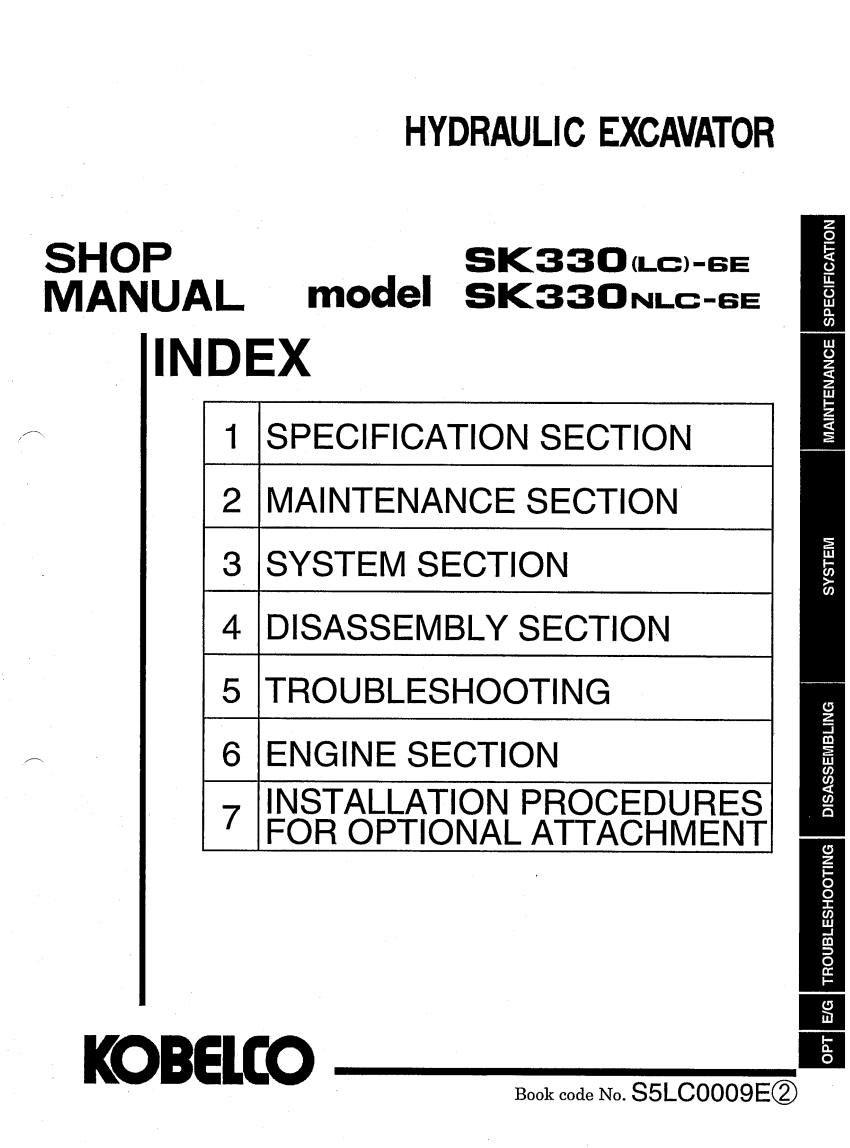

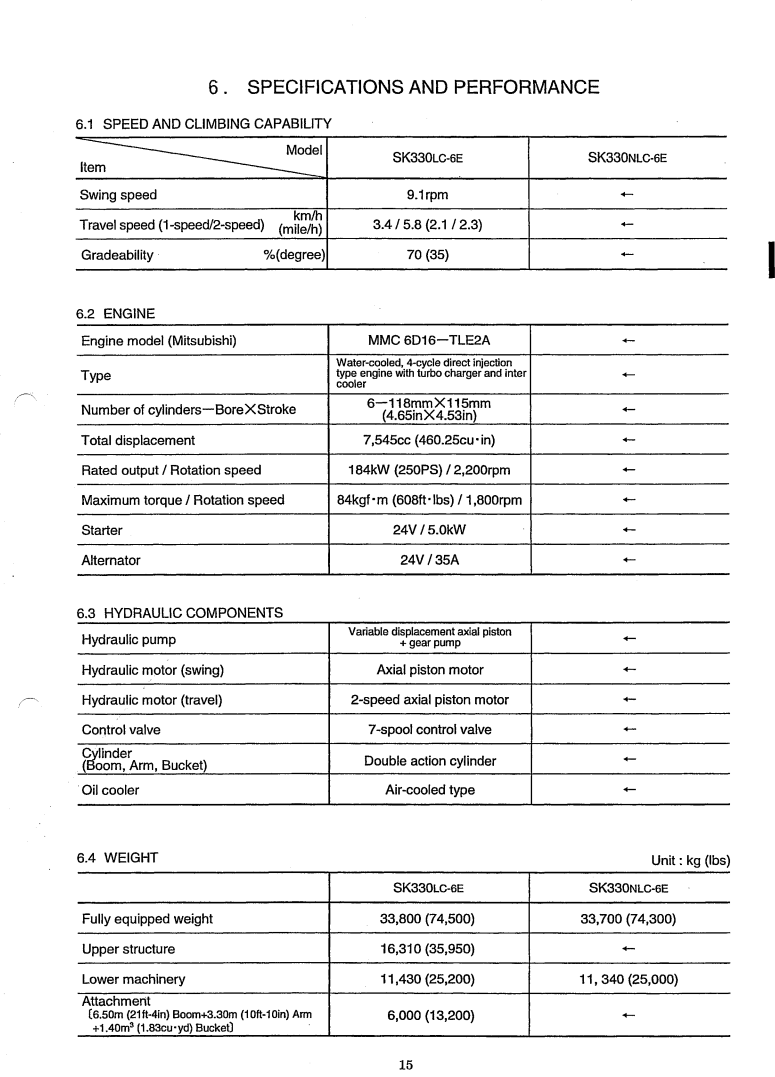

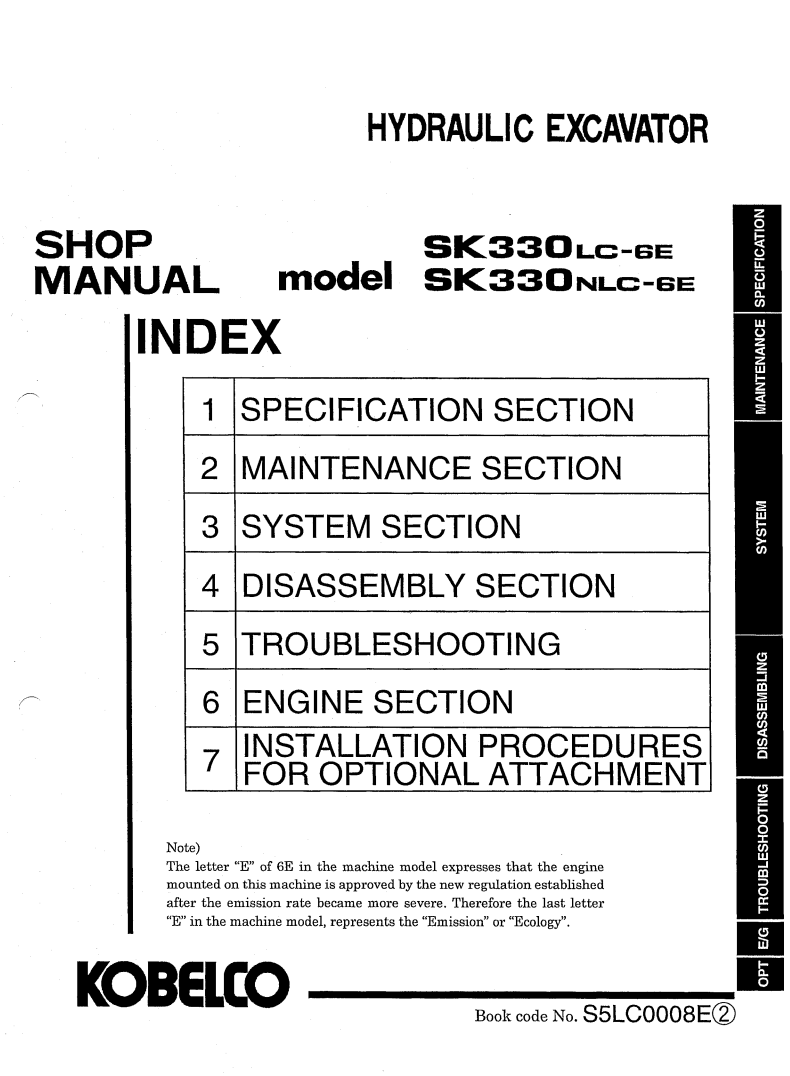

CONTENTS:

SPECIFICATION

MAINTENANCE

SYSTEM

DISASSEMBLY

TROUBLESHOOTING

ENGINE

INSTALLATION PROCEDURES FOR OPTIONAL ATTACHMENT

The KOBELCO SK330(LC)-6E and SK330NLC-6E Excavator Service Shop Manual is a comprehensive factory workshop manual designed for technicians, mechanics, fleet operators, and equipment owners responsible for maintaining and repairing these heavy-duty hydraulic excavators. This detailed manual covers complete machine specifications, maintenance procedures, hydraulic and electrical systems, troubleshooting diagnostics, engine service, disassembly and assembly instructions, and optional attachment installation procedures. It includes step-by-step repair guidance, technical diagrams, hydraulic circuit schematics, electrical wiring diagrams, component testing procedures, adjustment specifications, and fault diagnosis information to ensure accurate servicing and reduced machine downtime. The manual is applicable to various serial number ranges of the SK330LC-6E and SK330NLC-6E models and contains extensive coverage of the machine’s structure, travel system, upper frame, attachments, and powertrain components. Its organized sections on specifications, maintenance, system operation, disassembly, troubleshooting, and engine repair make it an essential resource for performing professional repairs, preventive maintenance, and complete overhauls while maintaining factory performance and reliability.
