KOBELCO SK70SR HYDRAULIC EXCAVATOR WORKSHOP SERVICE REPAIR SHOP MANUAL

KOBELCO SK70SR HYDRAULIC EXCAVATOR WORKSHOP SERVICE REPAIR SHOP MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 912
FILE SIZE: 115MB

MODEL COVERED:

KOBELCO SK70SR HYDRAULIC EXCAVATOR

PART NO:

S5YT0001E

APPLICABLE:

SK70SR - YT00101 AND HIGHER

ISSUED:

JULY, 2003

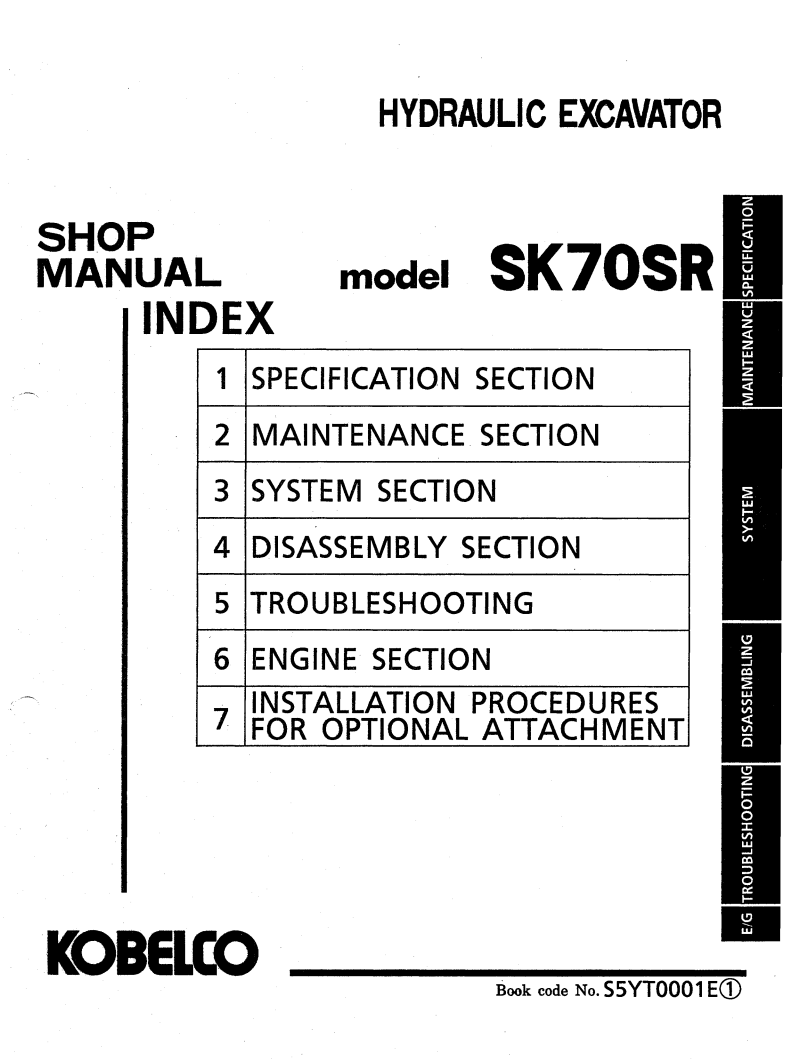

CONTENTS:

INDEX

SPECIFICATIONS

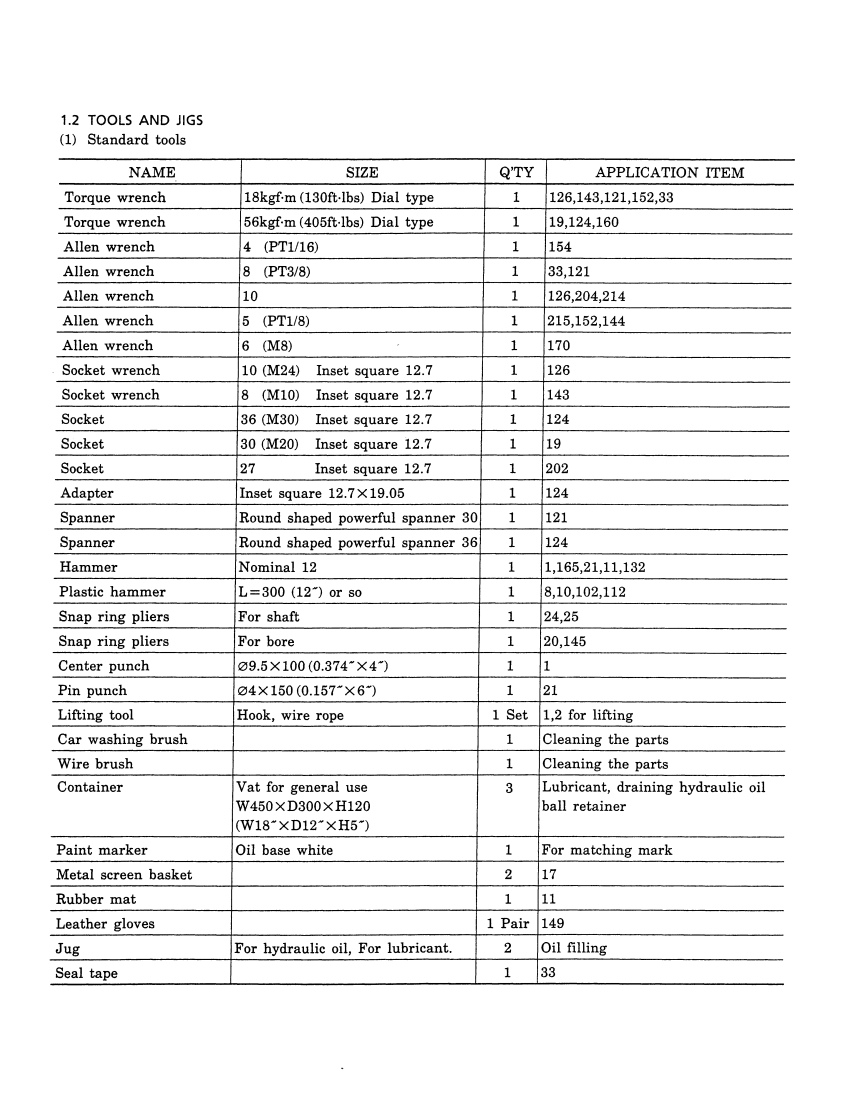

MAINTENANCE

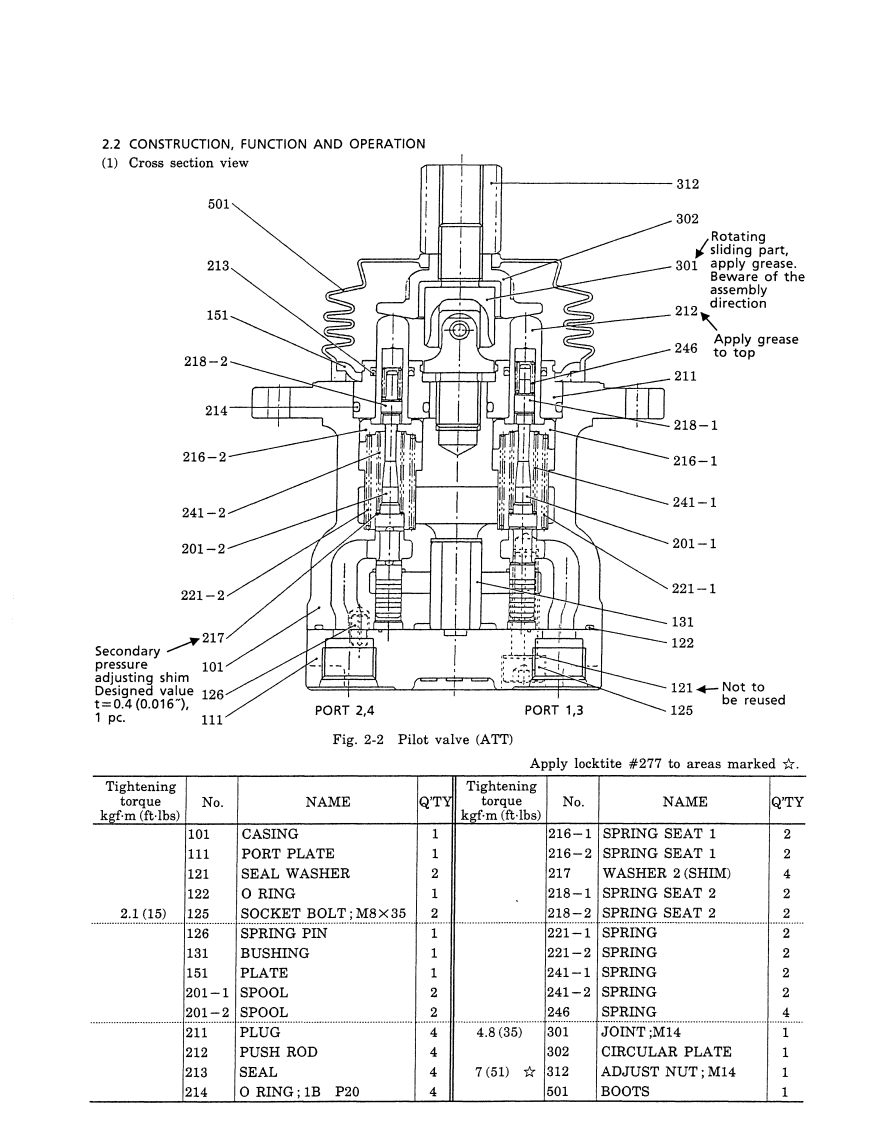

SYSTEM

DISASSEMBLY

TROUBLESHOOTING

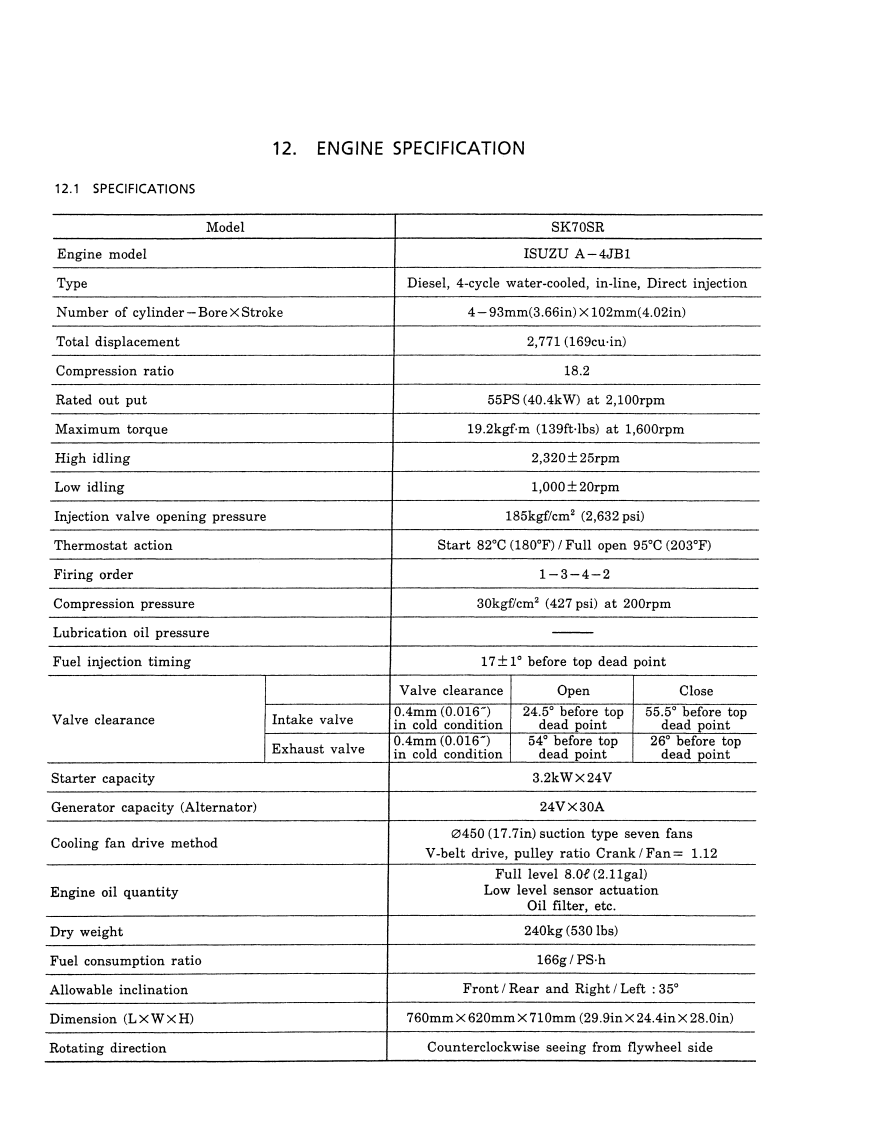

ENGINE

INSTALLATION PROCEDURES FOR OPTIONAL ATTACHMENT

The KOBELCO SK70SR Hydraulic Excavator Workshop Service Repair Shop Manual is a complete technical guide designed for mechanics, technicians, contractors, and equipment owners who need detailed repair, maintenance, troubleshooting, and overhaul procedures for the KOBELCO SK70SR compact hydraulic excavator. This professional workshop manual includes step-by-step instructions, detailed diagrams, hydraulic and electrical schematics, engine service procedures, diagnostic information, component disassembly and assembly instructions, periodic maintenance schedules, safety precautions, torque specifications, and operational guidance. Covering systems such as the hydraulic system, travel motor, swing device, engine components, electrical circuits, undercarriage, cooling system, and control valve assemblies, this service repair manual helps ensure accurate servicing and reduced machine downtime. It is an essential resource for performing preventive maintenance, field repairs, complete rebuilds, and professional troubleshooting on the KOBELCO SK70SR excavator while maintaining factory-standard performance and reliability.
