LAMBORGHINI CHAMPION 120 135 150 TRACTOR WORKSHOP SERVICE REPAIR MANUAL

LAMBORGHINI CHAMPION 120 135 150 TRACTOR WORKSHOP SERVICE REPAIR MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 812
FILE SIZE: 29.6MB

MODEL COVERED:

CHAMPION 120

CHAMPION 135

CHAMPION 150


CONTENTS:

SECTION 00 Contains the general safety rules, information on how to use and update the manual, the symbols used, the products required, the standard tightening torques and a conversion table for units of measurement.

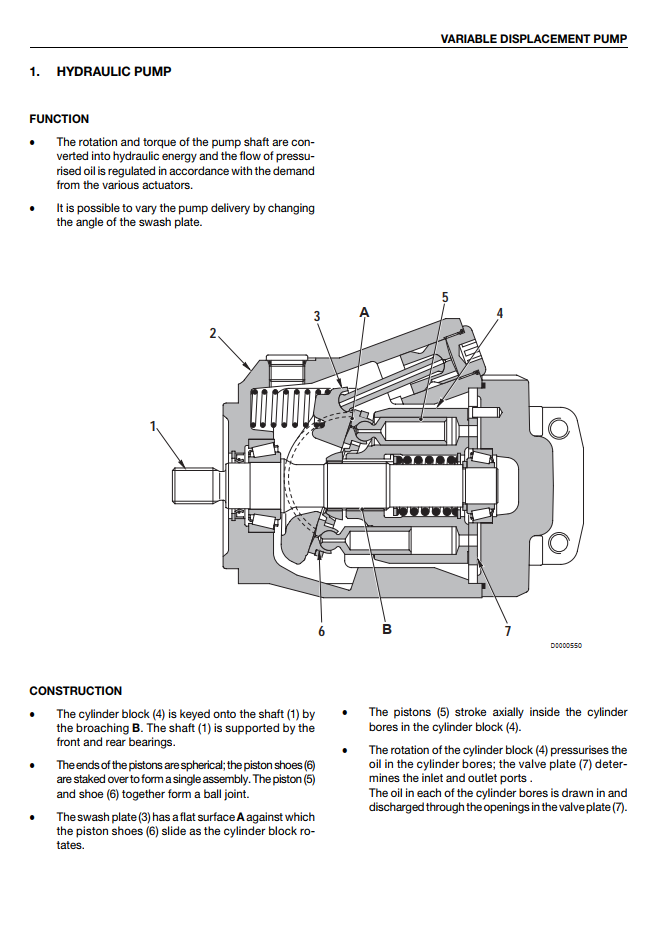

SECTION 10 Contains technical descriptions and information regarding the mechanical and hydraulic operation of machine components, the designations of the various components, hydraulic diagrams and general technical data.

SECTION 20 Contains information and diagrams regarding the machine's electrical and electronic systems.

This section also contains a guide to the use of the ALL ROUND TESTER, which is required for machine configuration and fault diagnosis.

SECTION 30 Contains the methods, checks and adjustments regarding the external components; the operations dealt with in this section do not require removal of the various assemblies that form the tractor frame and cab.

SECTION 40 This section contains the procedures regarding the removal and overhaul of the engine and the transmission (H-M-L, front and rear gearbox)
