MERCEDES-BENZ VITO VIANO VAN 639 2003-2014 ELECTRICAL WIRING MANUAL

MERCEDES-BENZ VITO VIANO VAN 639 2003-2014 ELECTRICAL WIRING MANUAL
LANGUAGE: ENGLISH
FORMAT: PDF
PAGES: 264
FILE SIZE: 13.2MB

CONTENTS:

USE OF WIRING DIAGRAMS

ABBREVIATIONS FOR WIRING DIAGRAMS

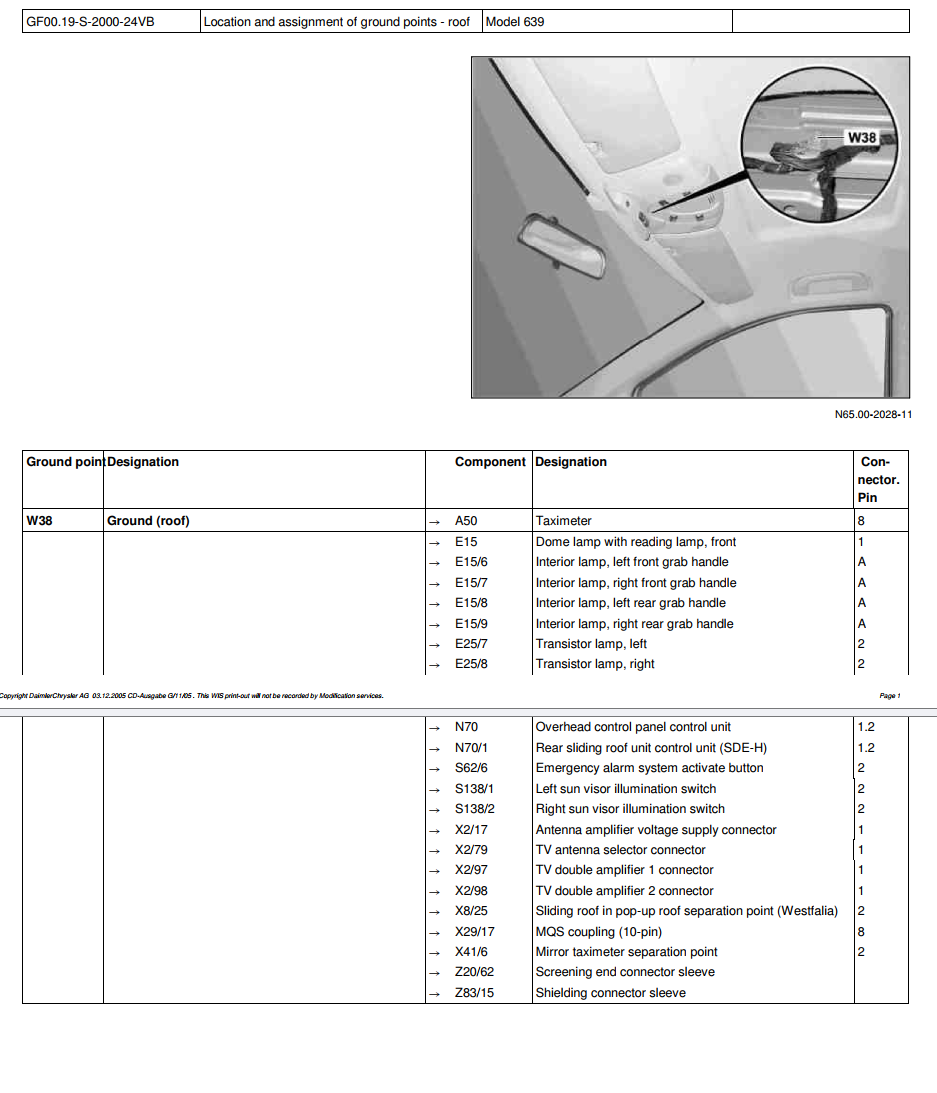

LOCATION AND ASSIGNMENT OF GROUND POINTS

LOCATION AND ASSIGNMENT OF PLUG CONNECTORS

BATTERY STARTING CHARGING CIRCUIT

VOLTAGE SUPPLY FUSES

FUSE AND RELAY BOARD (SRB)

SIGNAL ACQUISITION AND ACTUATION MODULE (SAM)

EXTERIOR LIGHTS

CENTRAL LOCKING

CAN BUS

INSTRUMENT CLUSTER (IC)

ELECTRONIC IGNITION SWITCH (EIS)

ELECTRONIC STABILITY CONTROL (ESP)

COMMON RAIL DIESEL INJECTION (CDI)

STANDARD HEATER
